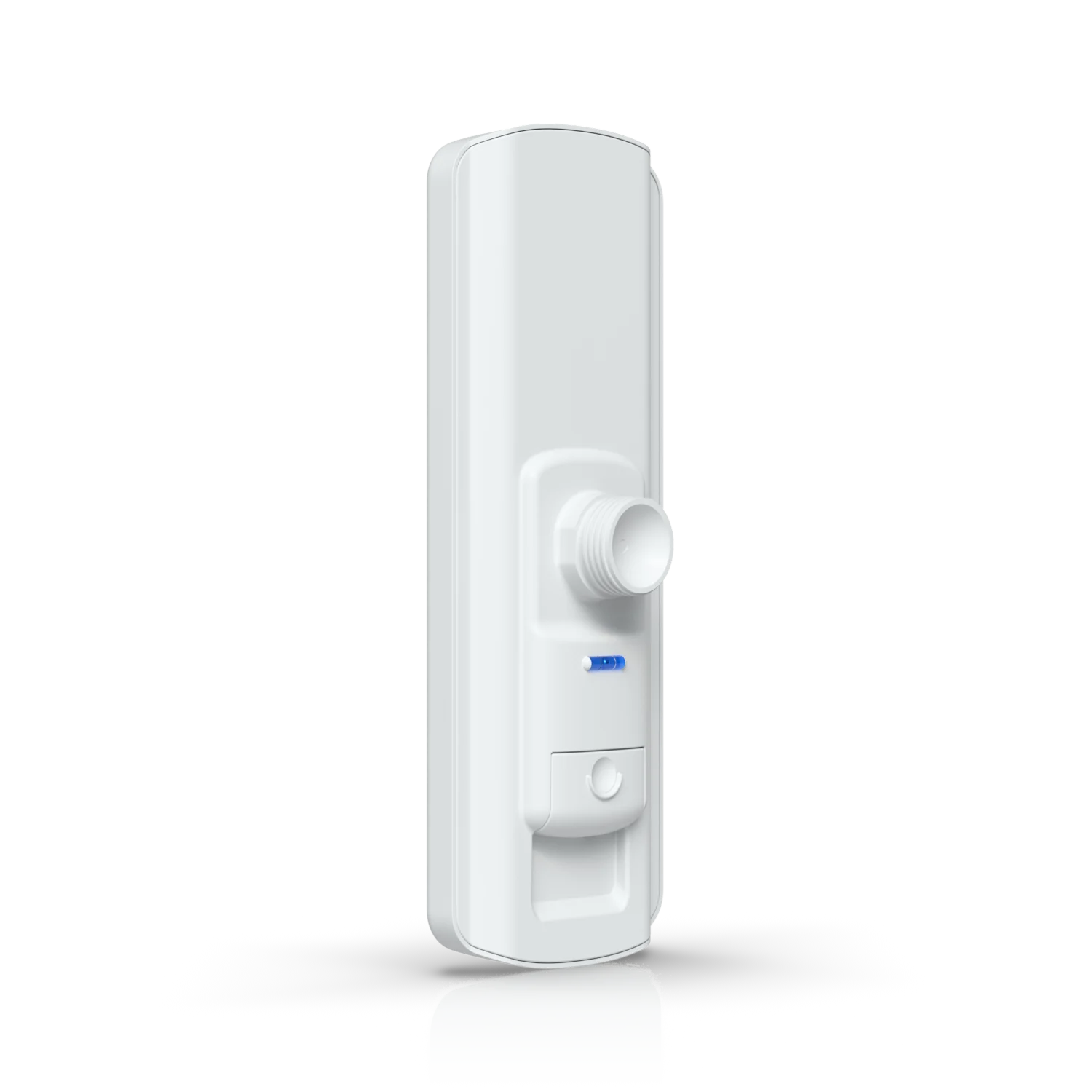

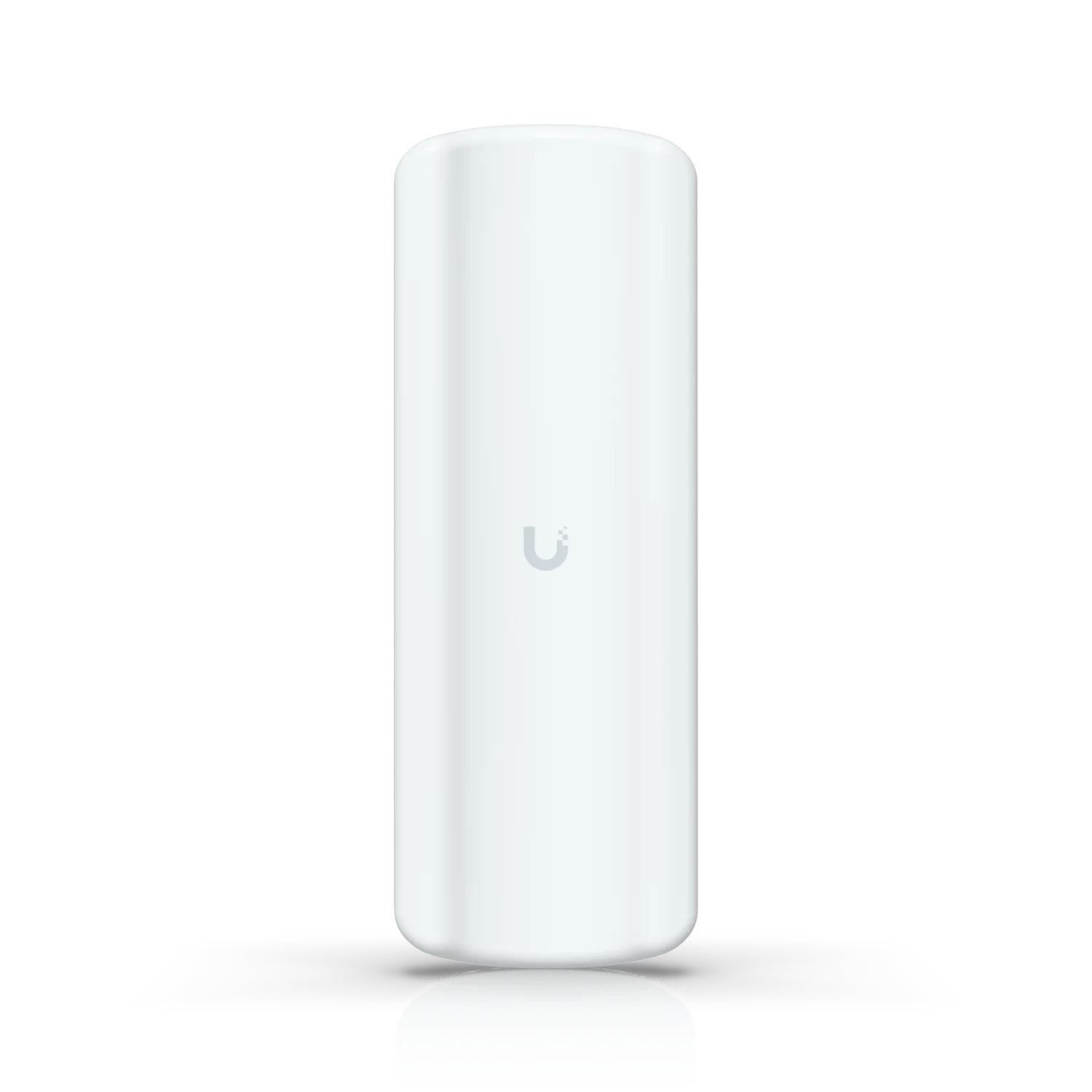

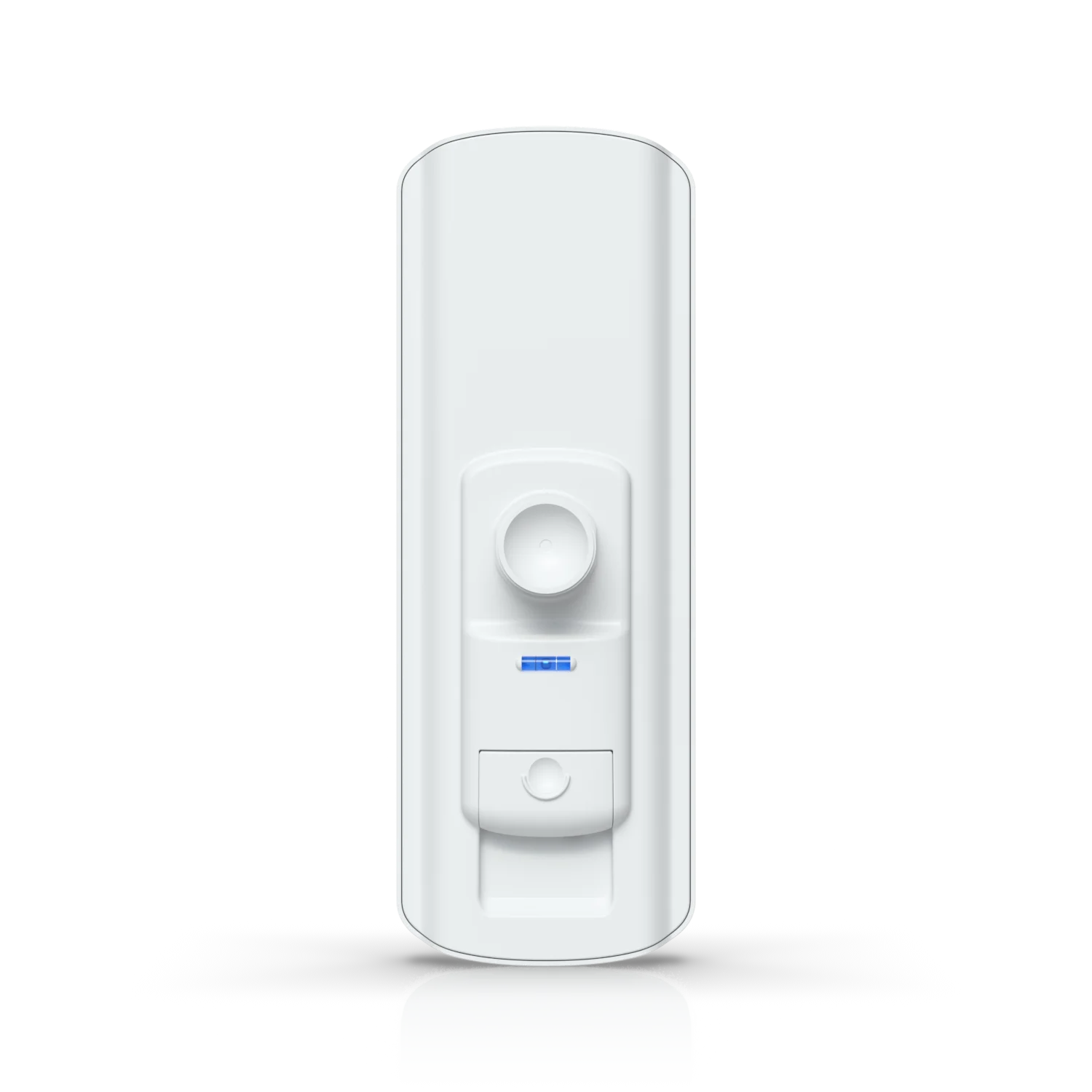

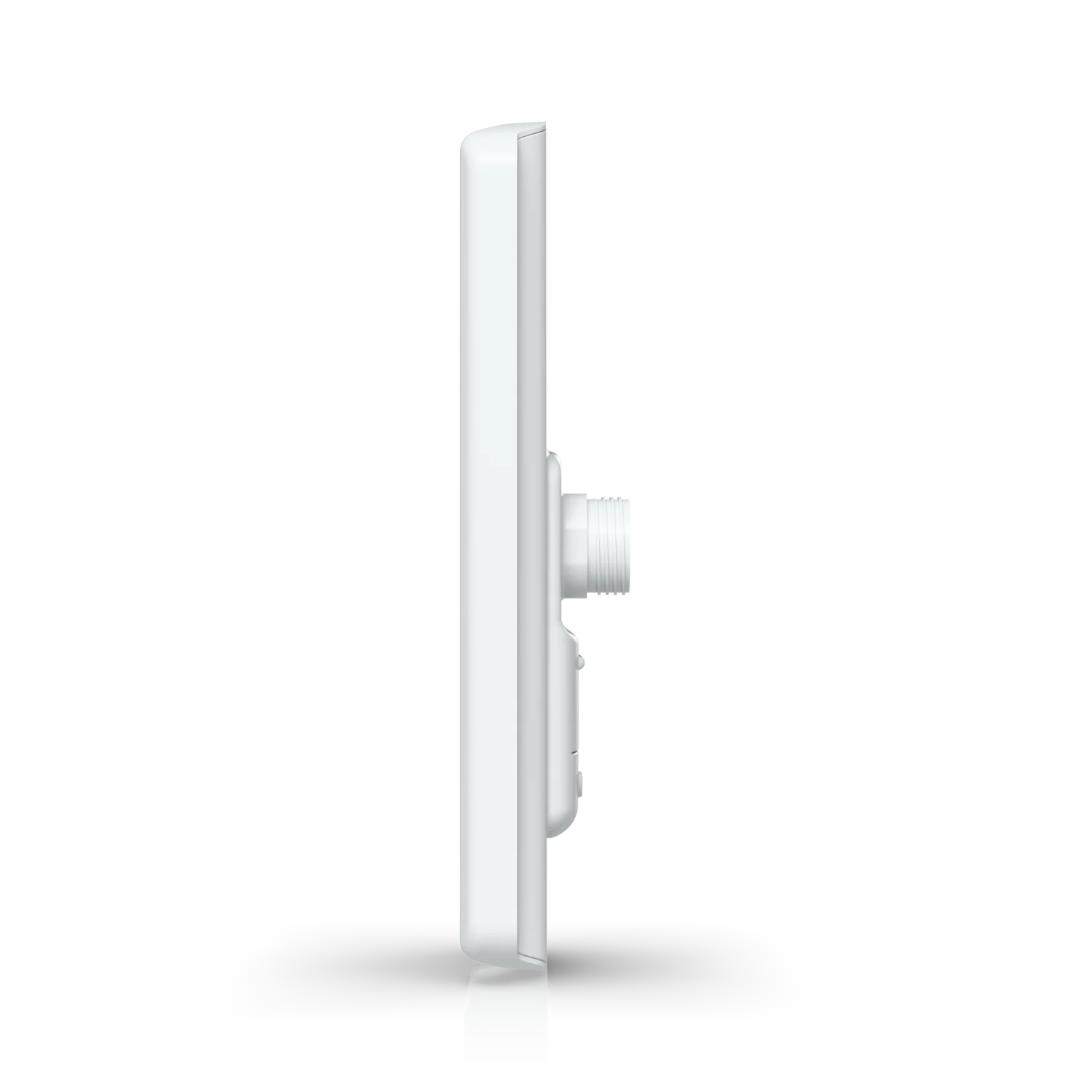

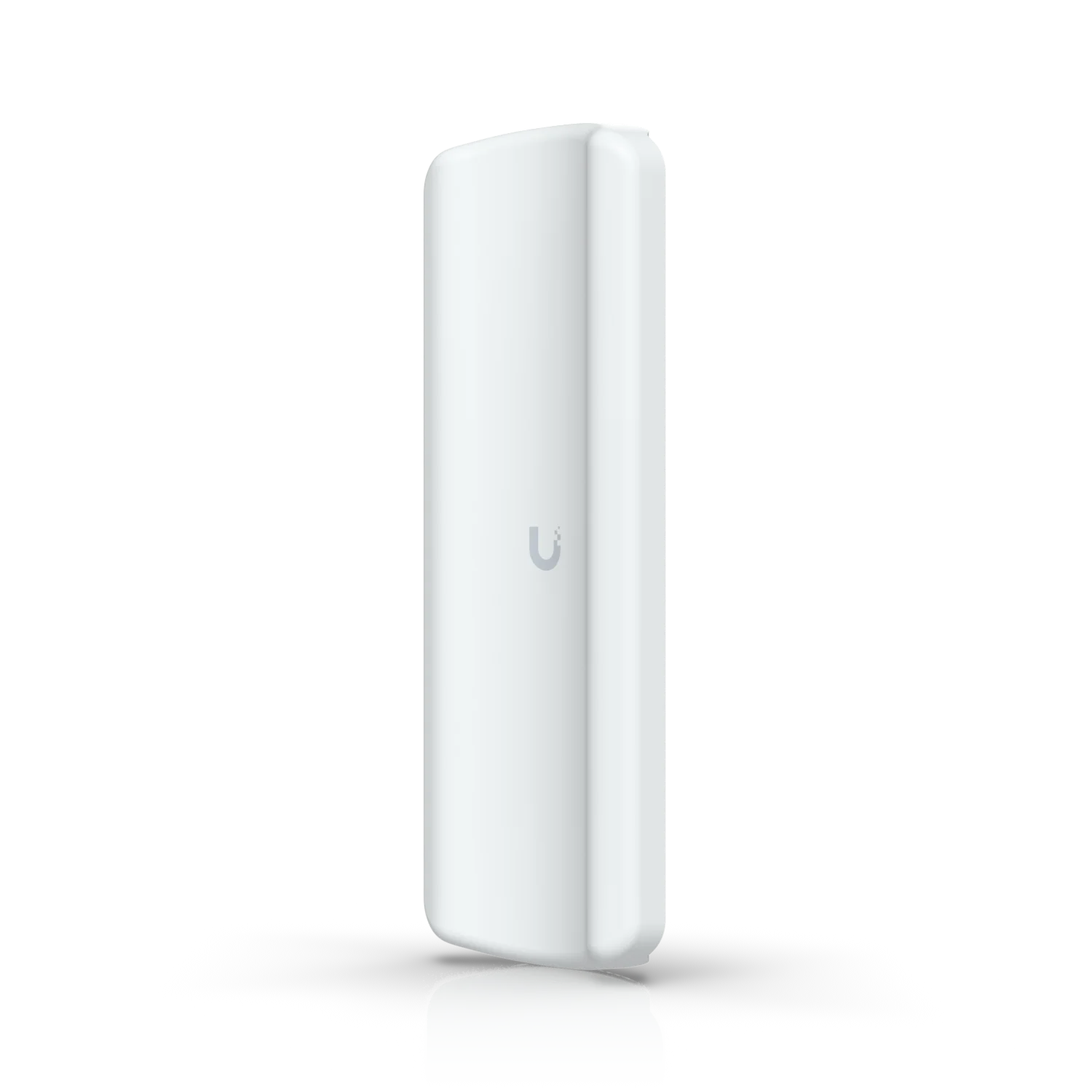

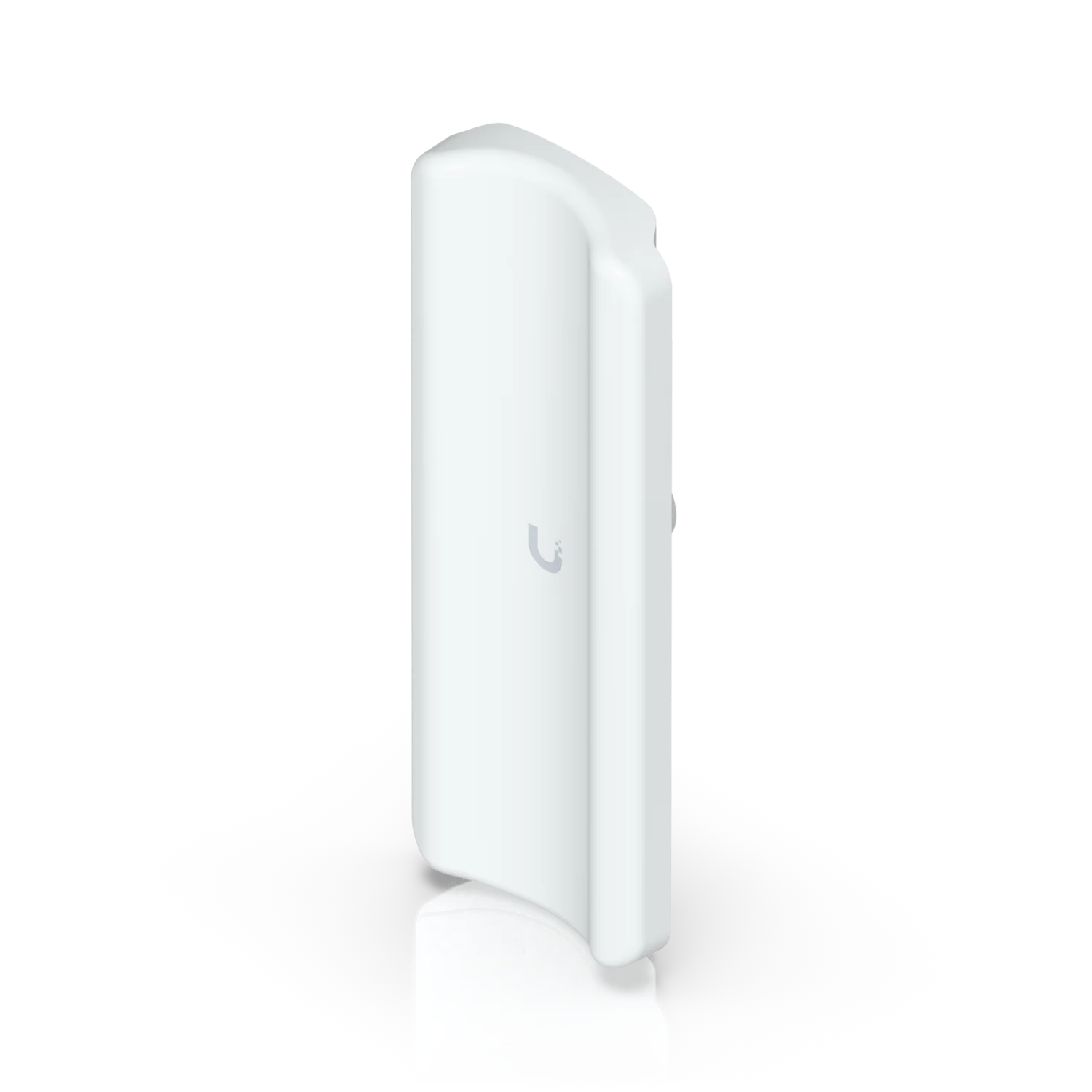

Device Bridge Pro Sector (UDB-Pro-Sector)

RM1,139.00

Brand

Quantity

3 unit available

Please input quantity

5 GHz point-to-multipoint access point that wirelessly bridges 50+ Device Bridge Pro clients at 5+ km distances.

Dimensions

360.9 x 129.6 x 71.4 mm (14.2 x 5.1 x 2.8”)

WiFi Standard

WiFi 5

Spatial Streams

2

Coverage Area

5 km (3.1 mi)

Mounting Locations

Pole

Weatherproofing

IPX6

Power Method

PoE

MIMO

5 GHz

2 x 2

Max. Data Rate

5 GHz

400 Mbps (BW40)

Antenna Gain

5 GHz

17 dBi

Max. TX Power

5 GHz

25 dBm

Max. Conducted TX Power

25 dBm (Combined)

Supported Data Rates

802.11ac (WiFi 5)

6.5 Mbps to 400 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40)

802.11n

6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

Wireless Security

WPA2 AES

Max. Power Consumption

6W

Supported Voltage Range

42.5—57V DC

Networking Interface

(1) GbE RJ45 port

Antennas

Internal

Management

Ethernet
WiFi

Channel Bandwidth

20/40 MHz

Wind Loading

128.2N at 200 km/h

Weight

Device: 782 g (1.7 lb)
With mount: 835 g (1.8 lb)

Enclosure Material

UV-stabilized polycarbonate

Mount Material

UV-stabilized polycarbonate, stainless steel

Pole Mount Diameter

0.9—2.4" (24—60 mm)

Button

(1) Factory-reset

LEDs

System

Power, Ethernet

NDAA Compliant

✓

Certifications

CE, FCC, IC, Anatel: 05978-25-08356

Operating Frequency

US/CA: U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz Worldwide: 5150 - 5875 MHz

Ambient Operating Temperature

-40 to 60° C (-40 to 140° F)

Ambient Operating Humidity

5 to 95% noncondensing
