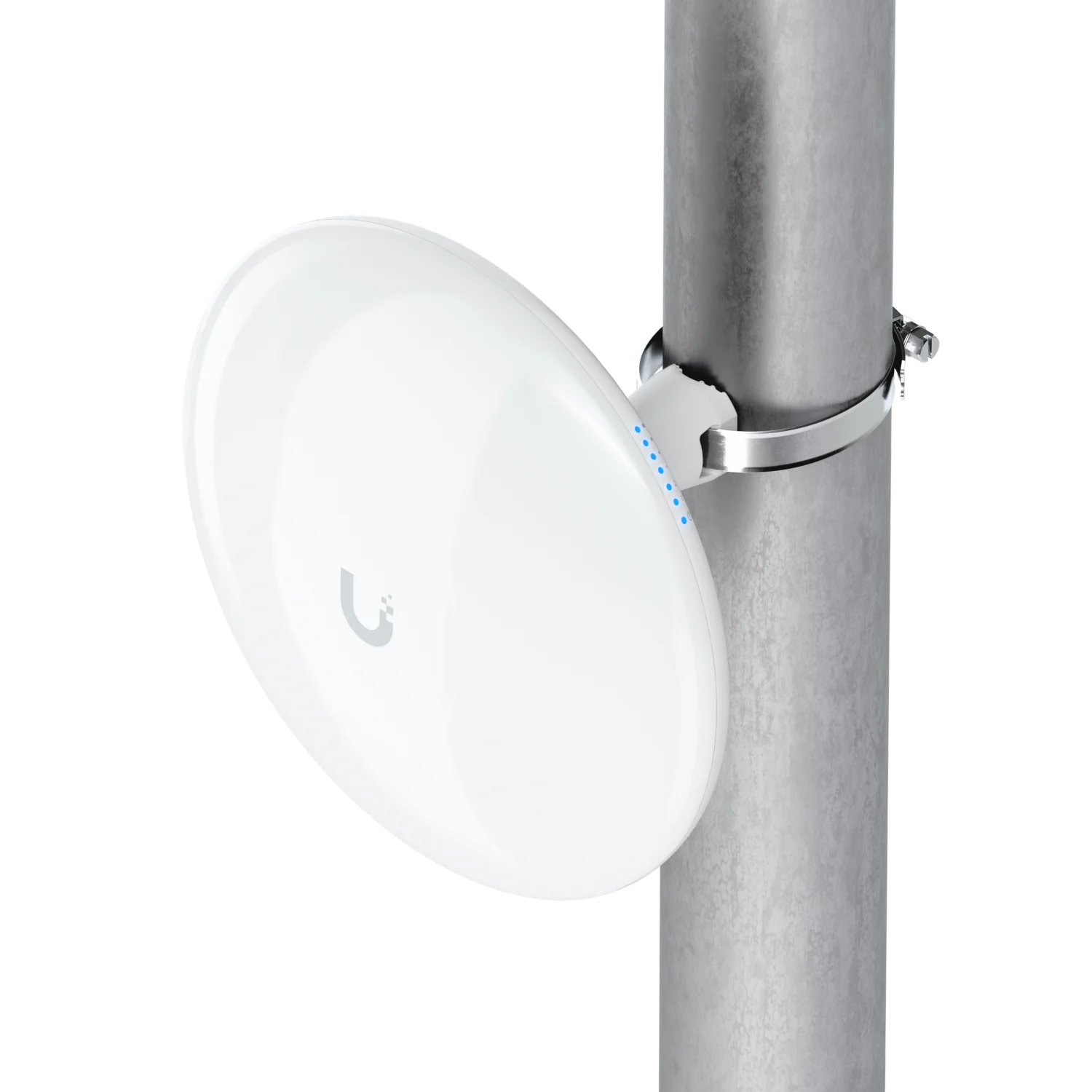

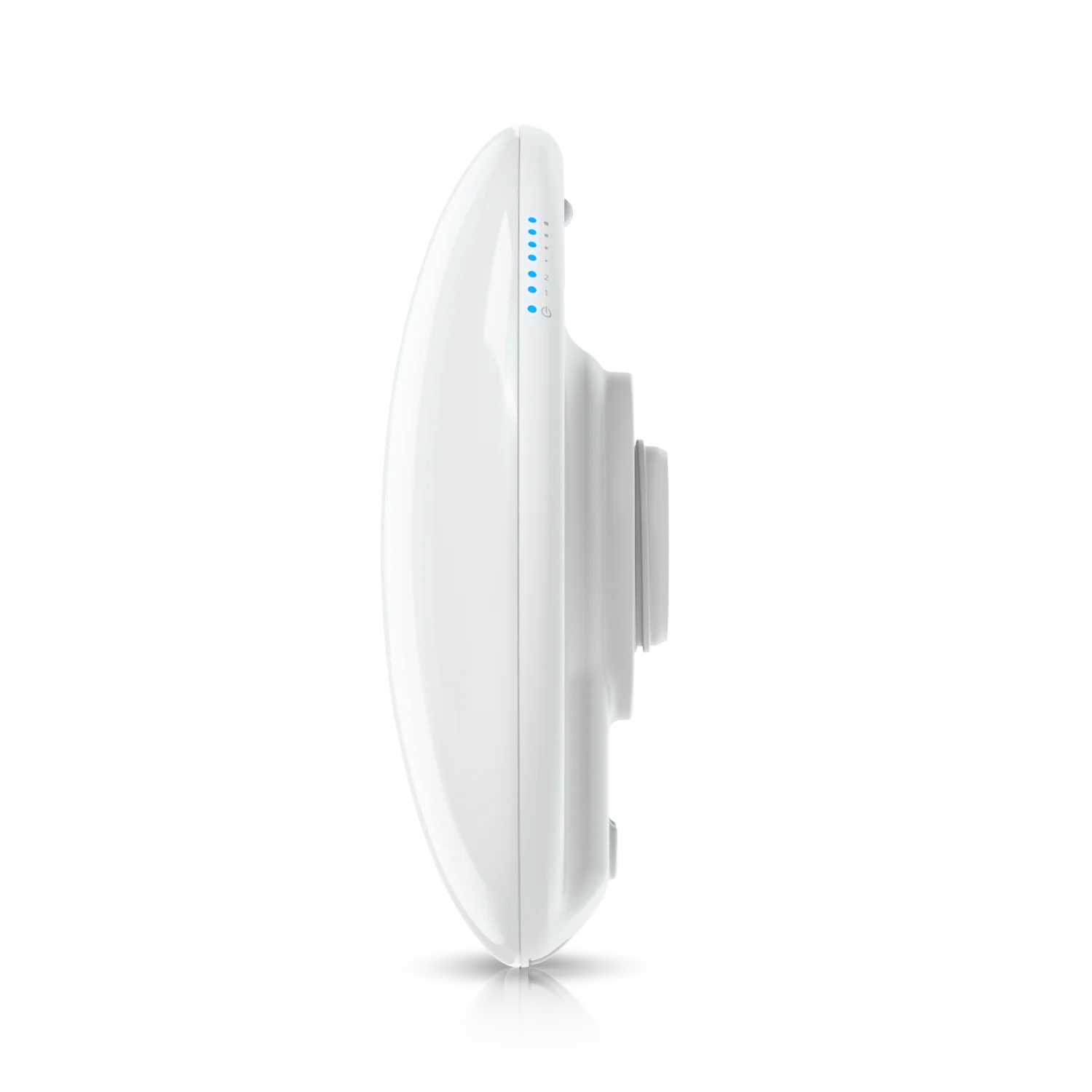

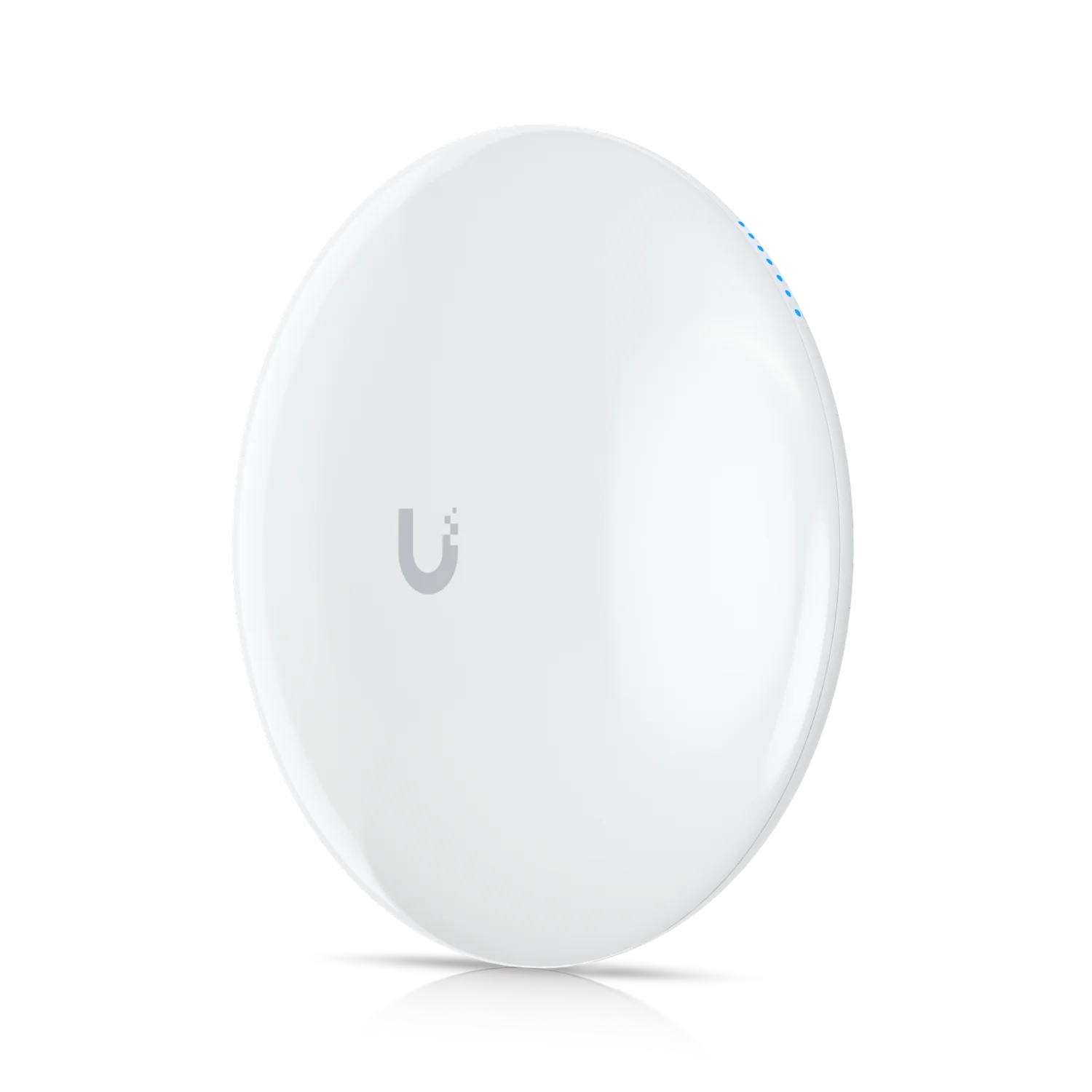

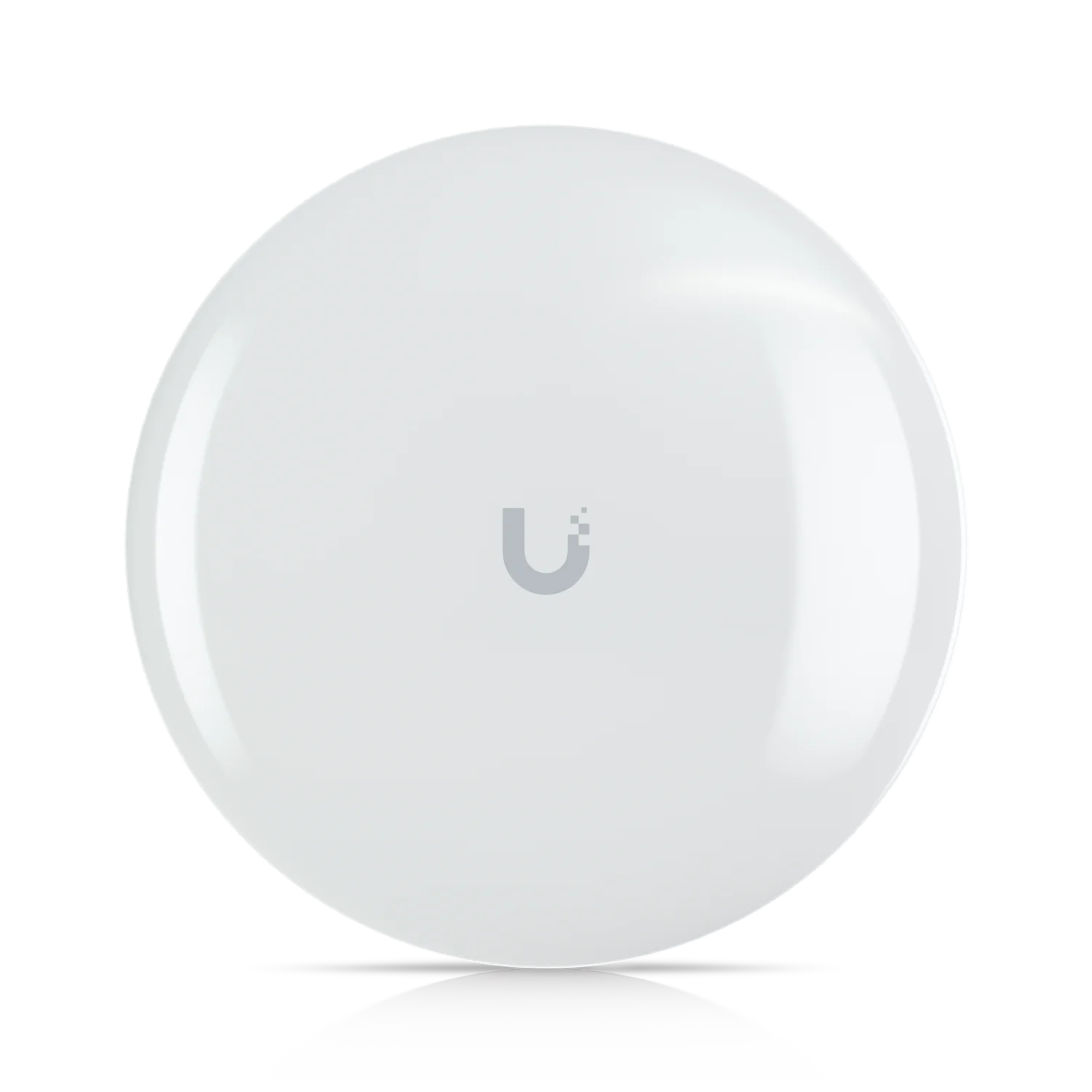

Device Bridge Pro (UDB-Pro)

RM1,139.00

Brand

Quantity

6 unit available

Please input quantity

5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UAP WiFi.

Dimensions

Ø189.5 x 64.3 mm
(Ø7.4 x 2.5")

WiFi Standard

WiFi 5

Spatial Streams

2

Coverage Area

5 km (3.1 mi)

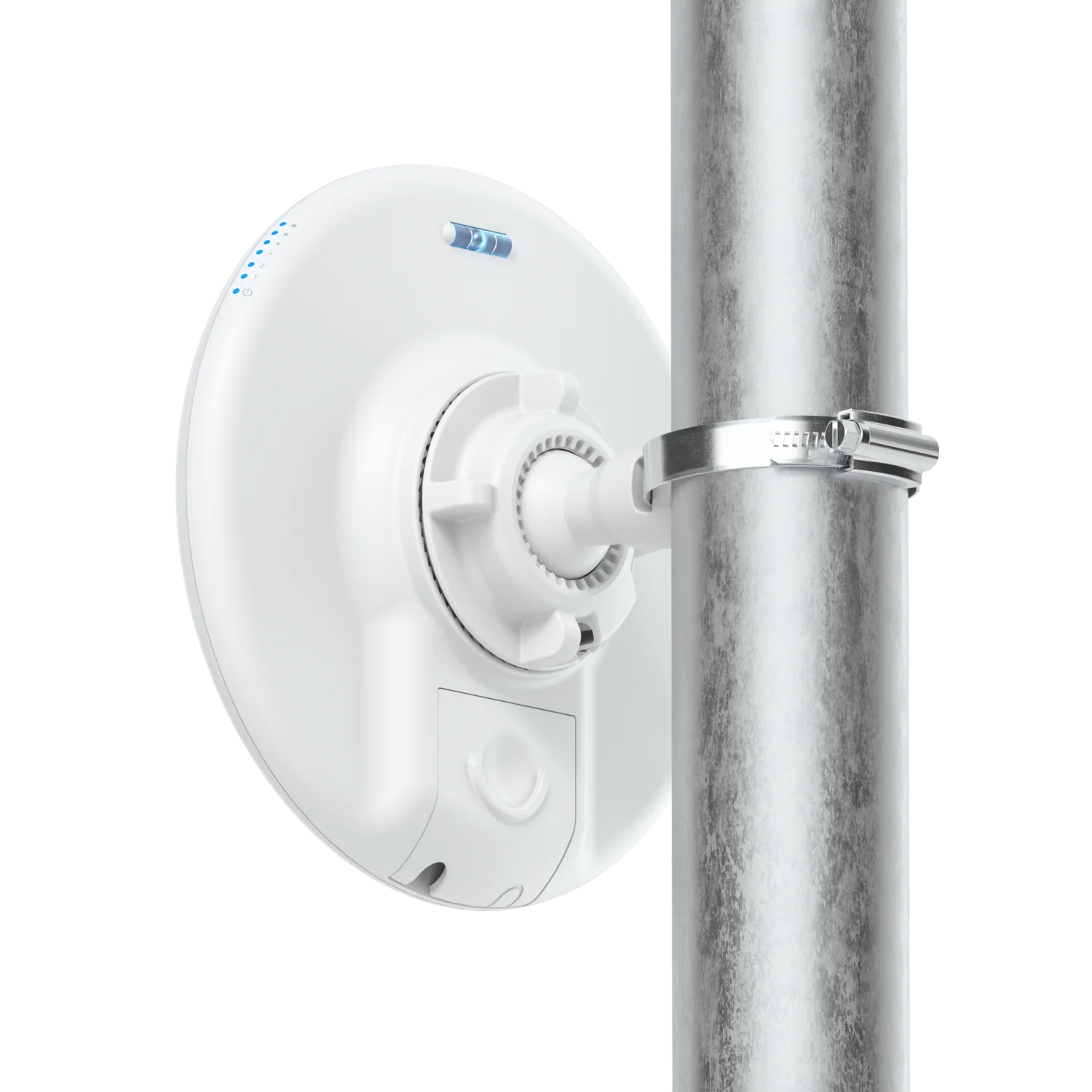

Mounting Locations

Wall, pole

Mounting

Pole (Included)

Weatherproofing

IPX6

Power Method

PoE
PoE+ (Required for PoE output)

Power Supply

48V, 0.32A PoE adapter (Included)

MIMO

5 GHz

2 x 2

Max. Data Rate

5 GHz

867 Mbps (BW80)

Antenna Gain

5 GHz

19 dBi

Max. TX Power

5 GHz

25 dBm

Max. Conducted TX Power

25 dBm (Combined)

Supported Data Rates

802.11ac (WiFi 5)

6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)

802.11n

6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

Wireless Security

WPA2 AES

Max. Power Consumption

9W

Supported Voltage Range

42.5—57V DC

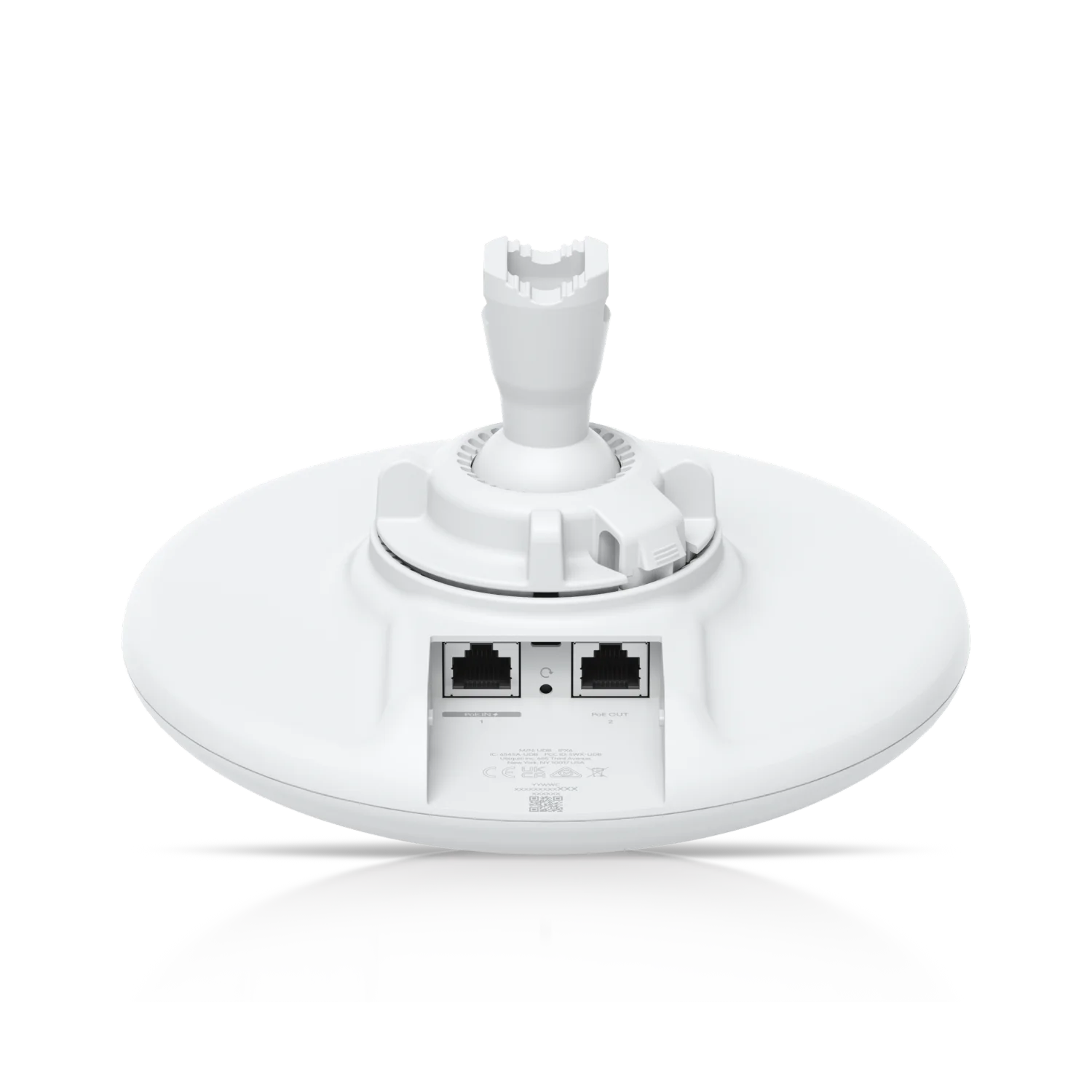

Networking Interface

(2) GbE RJ45 ports

Antennas

Internal

Management

(1) PoE in (PoE output not used)
(1) Passive PoE output

Channel Bandwidth

20/40/80 (MHz)

Wind Loading

69 N at 200 km/h (15.5 lbf at 125 mph)

Weight

Device: 431 g (0.95 lb)
With mount: 515 g (1.1 lb)

Enclosure Material

UV-resistant polycarbonate

Mount Material

UV-stabilized polycarbonate, stainless steel

Pole Mount Diameter

0.8–2.1" (20–53.1 mm)

Button

(1) Factory-reset

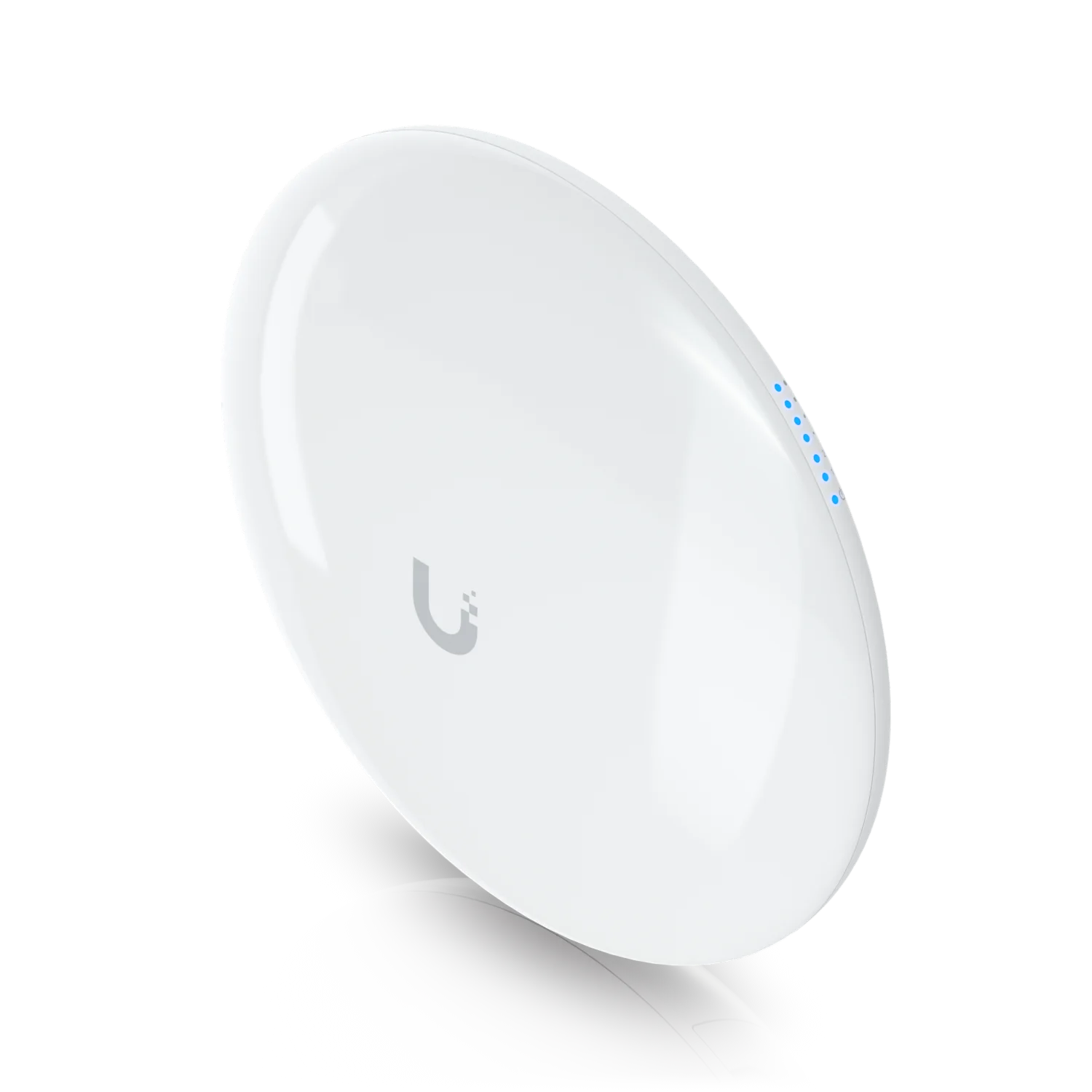

LEDs

System

Power, (2) Ethernet status - main port/PoE out port, (4) signal strength

NDAA Compliant

✓

Certifications

CE, FCC, IC

Operating Frequency

US/CA: U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz Worldwide: 5150 - 5875 MHz

Ambient Operating Temperature

-40 to 60° C (-40 to 140° F)

Ambient Operating Humidity

5 to 95% noncondensing
