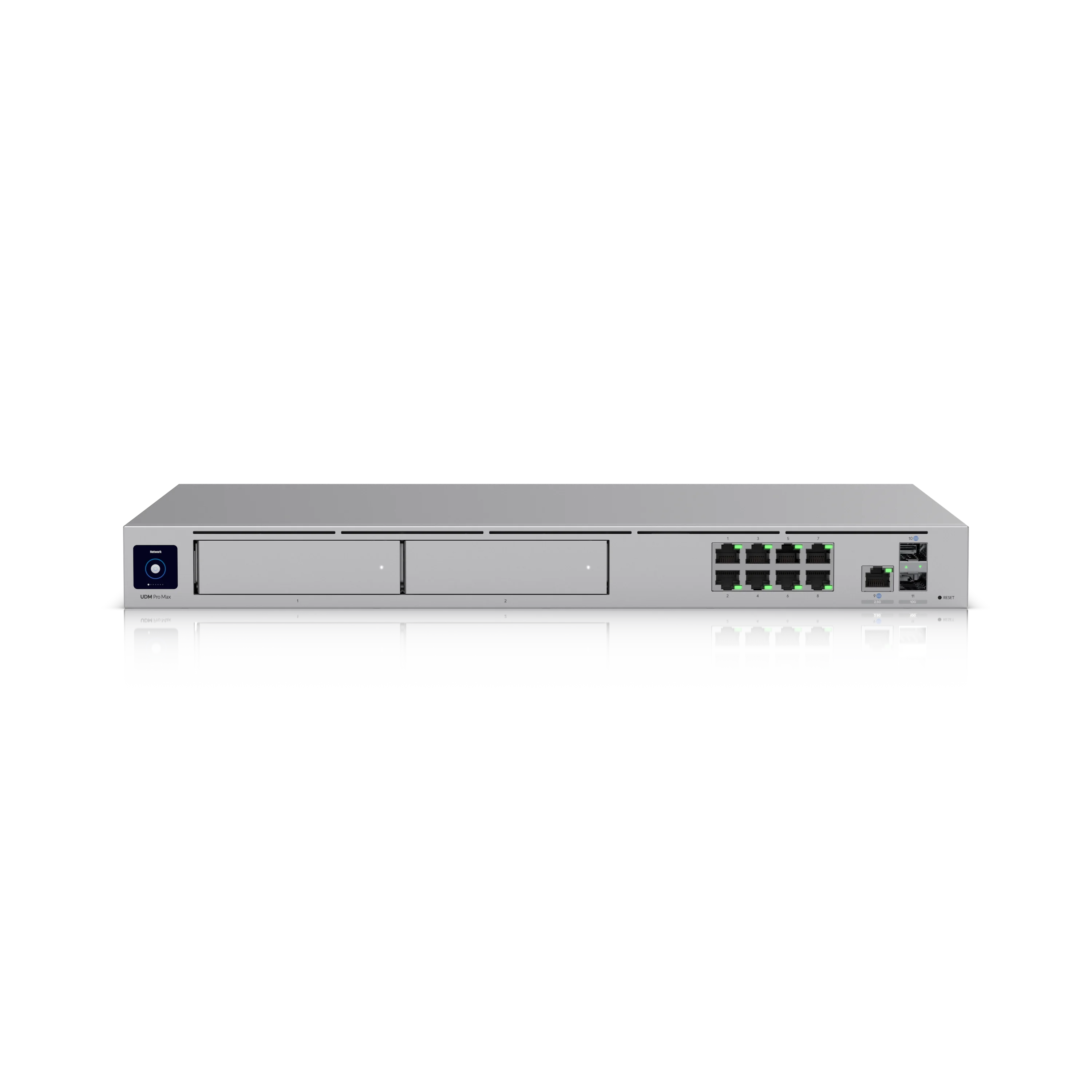

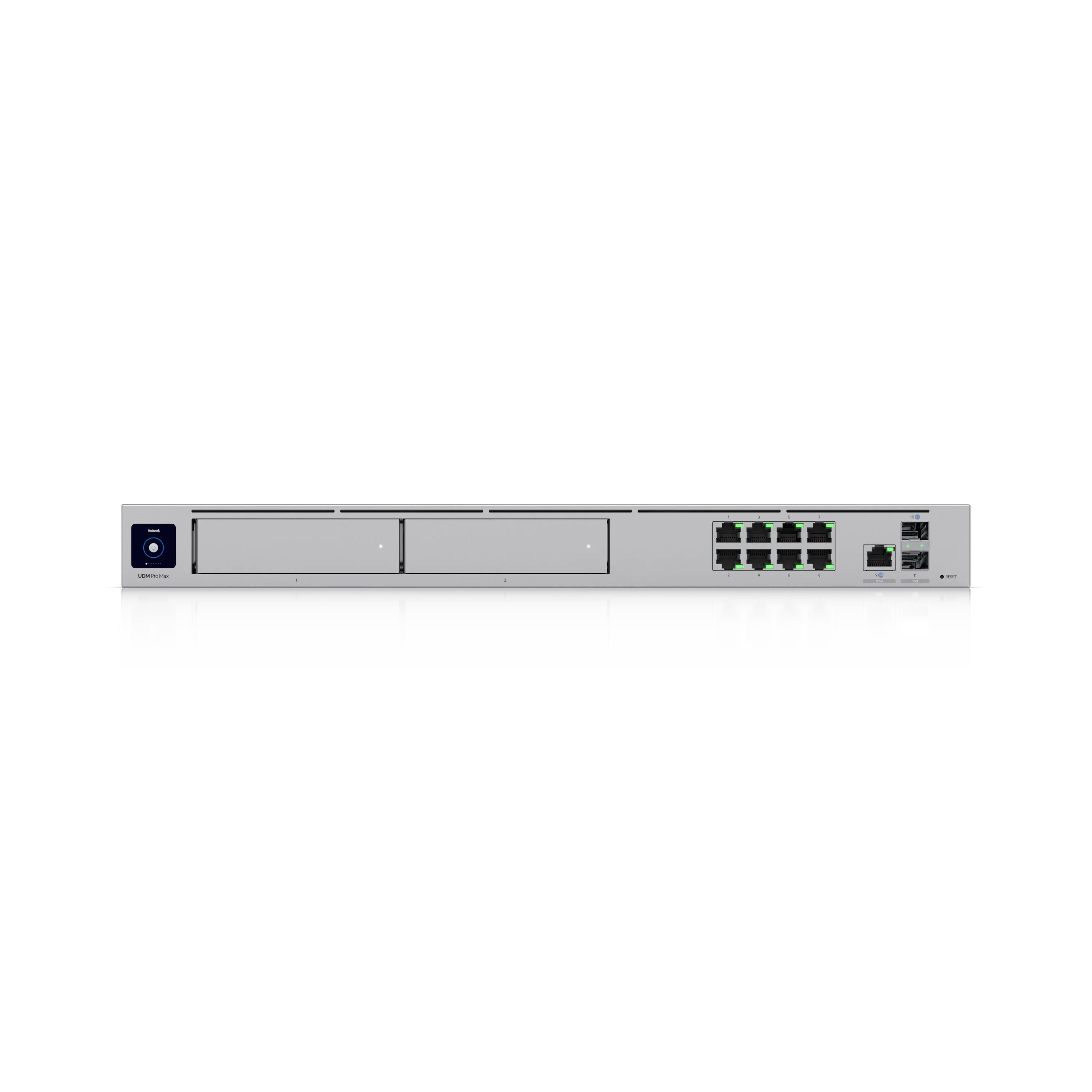

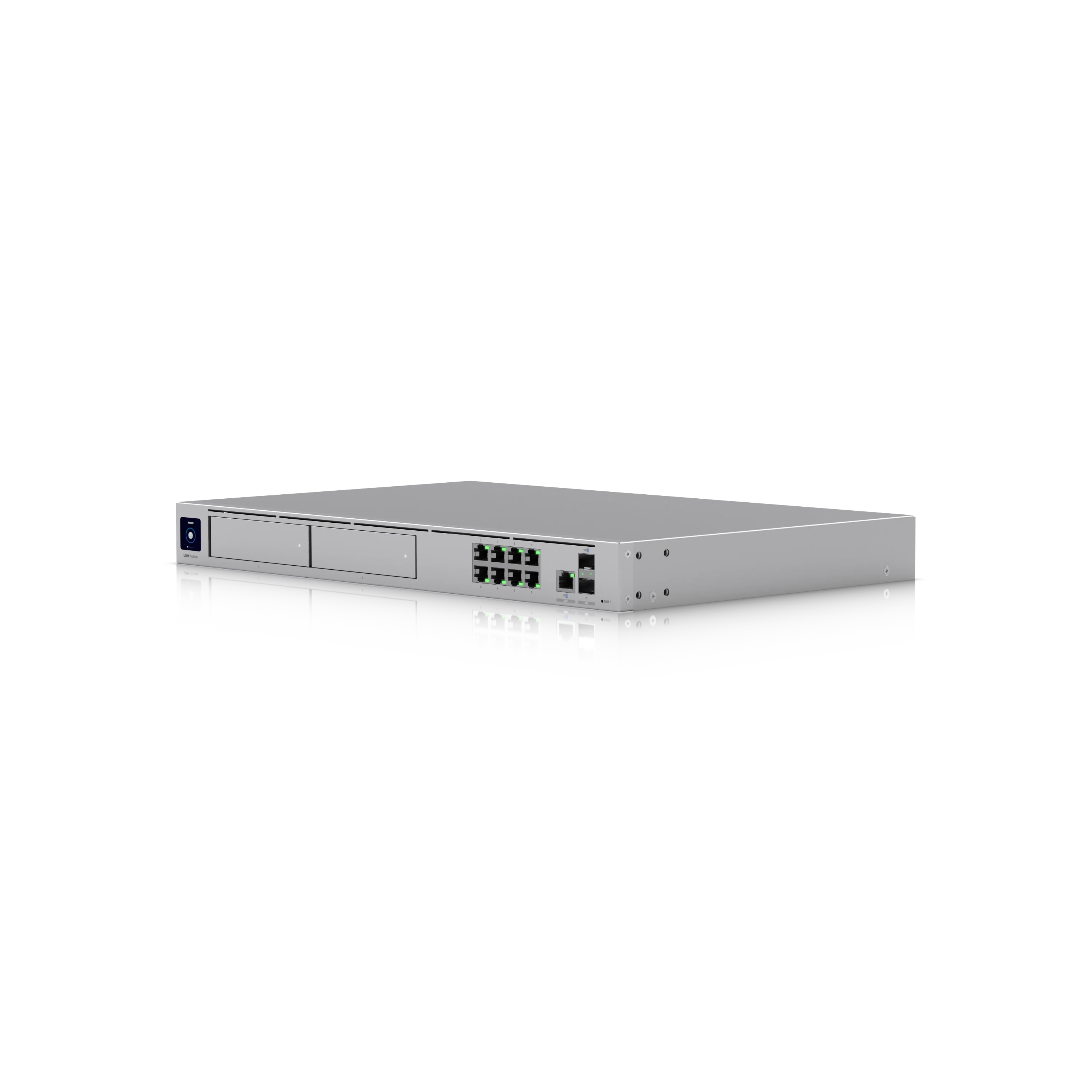

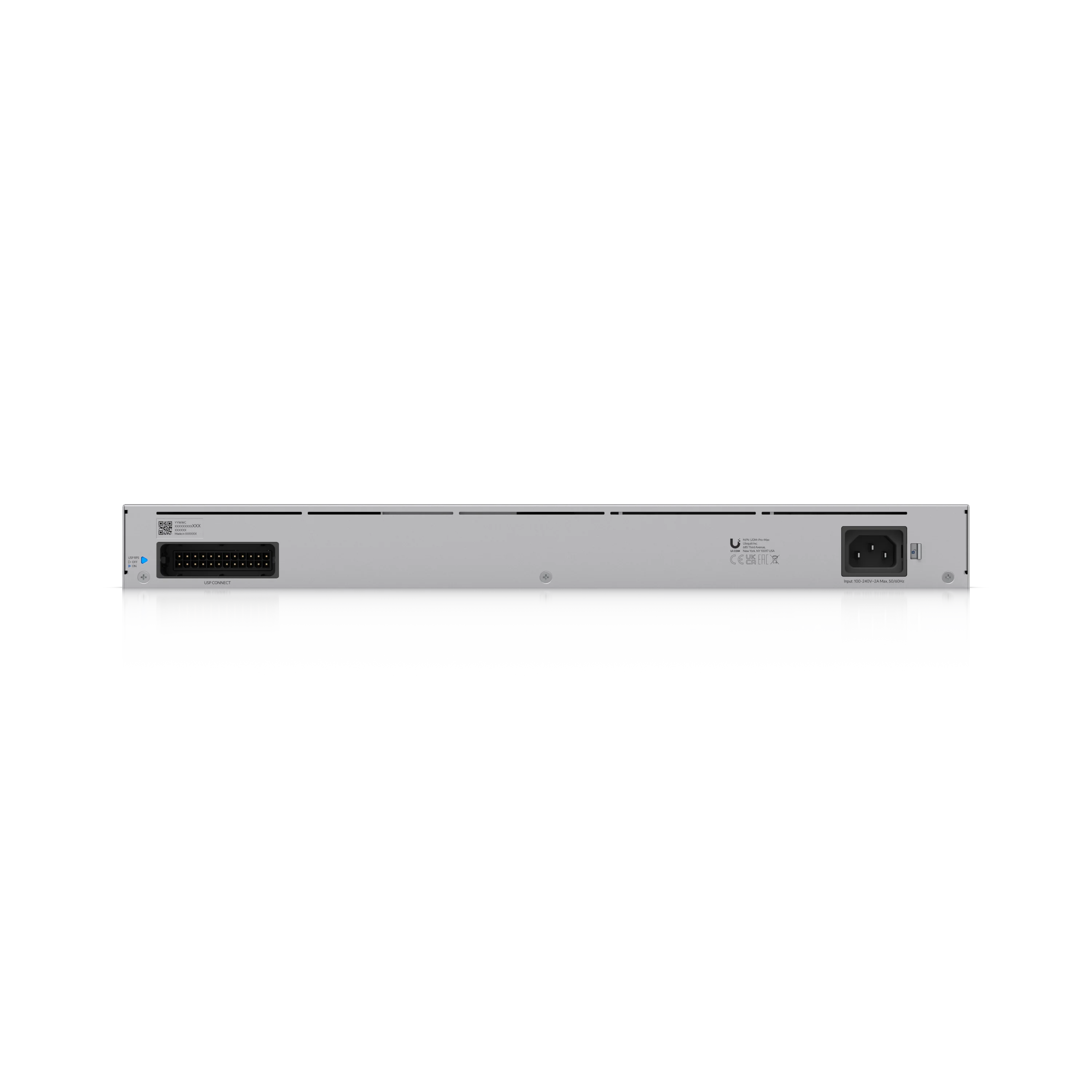

Dream Machine Pro Max (UDM-Pro-Max)

Sold Out

RM3,456.00

Brand

10G Cloud Gateway with 200+ UAP device / 2,000+ client support, 5 Gbps IPS routing, and redundant NVR storage.

Dimensions

442.4 x 43.7 x 285.6 mm
(17.4 x 1.7 x 11.2")

UAP Application Suite

Network

✓

Protect

✓

Access

✓

Talk

✓

Connect

✓

Managed UAP Devices

200+

Managed Cameras

(50) HD
(25) 2K
(15) 4K

Managed Access Hubs

150

Simultaneous Users Connected

2,000+

Max. WAN Port Count

8

Default WAN Ports

(1) 10G SFP+
(1) 2.5 GbE RJ45

Port Layout

1 GbE RJ45

8
(1G/100M/10M)

2.5 GbE RJ45

1
(2.5G/1G/100M/10M)

10G SFP+

2
(10G/1G)

IDS/IPS Throughput

5 Gbps

Form Factor

Rack mount (1U)

Redundancy

Shadow Mode (VRRP) Gateway Failover
DC Power Backup

Stateful Firewall

✓

Application-Aware Layer 7 Firewall

✓

DPI & Traffic Identification

✓

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)

✓

Content Filtering

✓

Intrusion Prevention (IPS/IDS)

✓

Ad Blocking

✓

IDS/IPS Signatures

55,000+
with CyberSecure

VLAN/Subnet-based Traffic Segmentation

✓

License-Free SD-WAN

✓

Site-to-Site VPN

Site Magic

✓

IPsec

✓

OpenVPN

✓

VPN Server

Identity Endpoint One-Click VPN

✓

Teleport Zero-Configuration VPN

✓

WireGuard

✓

OpenVPN

✓

L2TP

✓

VPN Client

OpenVPN

✓

WireGuard

✓

Multi-WAN Load Balancing

✓

Shadow Mode (VRRP) High Availability

✓

LACP Port Aggregation

✓

Dynamic Routing

OSPF

✓

BGP

✓

Advanced QoS

✓

Multicast DNS (mDNS)

✓

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)

✓

Integrated RADIUS Server

✓

RADIUS over TLS (RadSec)

✓

Additional Internet Failover with UniFi LTE Backup

✓

Internet Quality and Outage Reporting

✓

MAC Address Table Size

4,000

Policy-based WAN and VPN Routing

✓

Customizable DHCP Server

✓

IPv6 ISP Support

✓

IGMP Proxy

✓

Virtual Network Override

✓

All Traffic Flows

✓

NVR Storage

(2) 3.5" NVR HDD bays
Built-in 128 GB SSD for Faster Experience

Max. Power Consumption

60W

Power Method

(1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 8.7A

Power Supply

AC/DC, internal, 100W

Supported Voltage Range

100—240V AC

Heat Dissipation

205 BTU/hr

Processor

Quad-core ARM® Cortex®-A57 at 2.0 GHz

System Memory

8 GB

On-board Storage

32 GB eMMC
128 GB SSD (Integrated)

Weight

4.7 kg (10.4 lb)

Enclosure Material

Aluminium CNC, SGCC steel

Mount Material

SGCC steel

LCM Display

1.3" touchscreen

Management

Ethernet
Bluetooth

LEDs

Ethernet

✓

SFP+

✓

RPS

✓

PSU

✓

HDD

✓

Button

(1) Factory-reset

ESD/EMP Protection

Air: ± 15kV, contact: ± 8kV

Ambient Operating Temperature

-10 to 40° C (14 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

NDAA Compliant

✓

Certifications

CE, FCC, IC, Anatel: 06369-24-08356, SRRC
