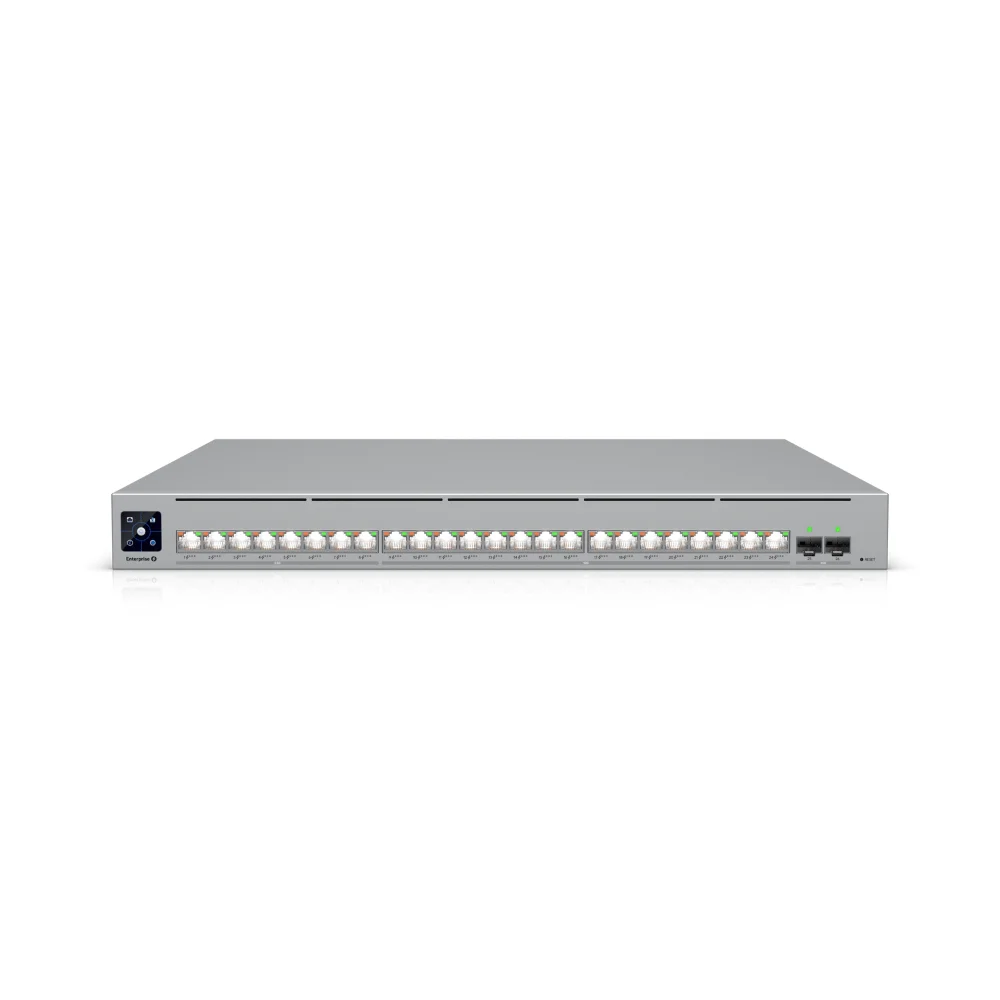

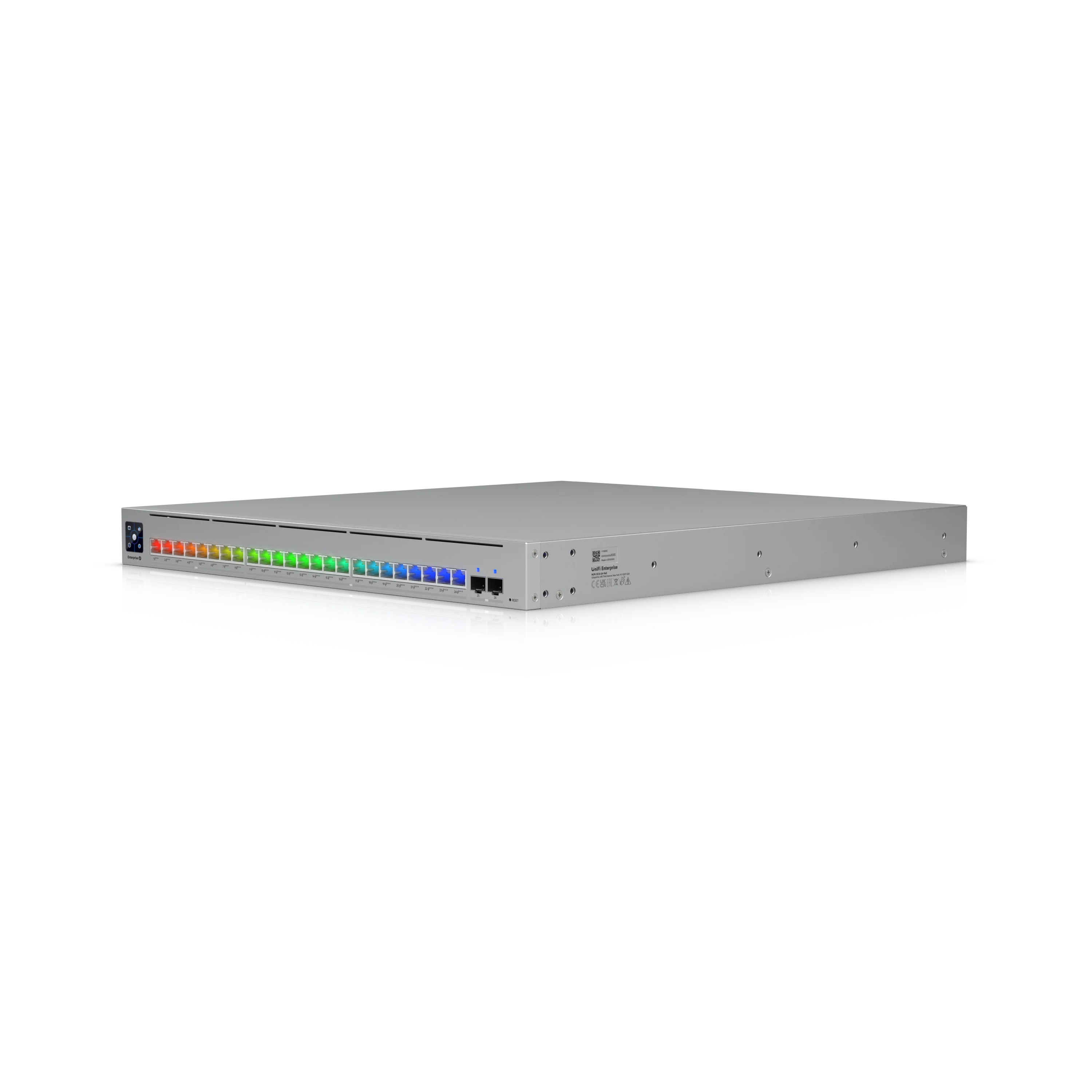

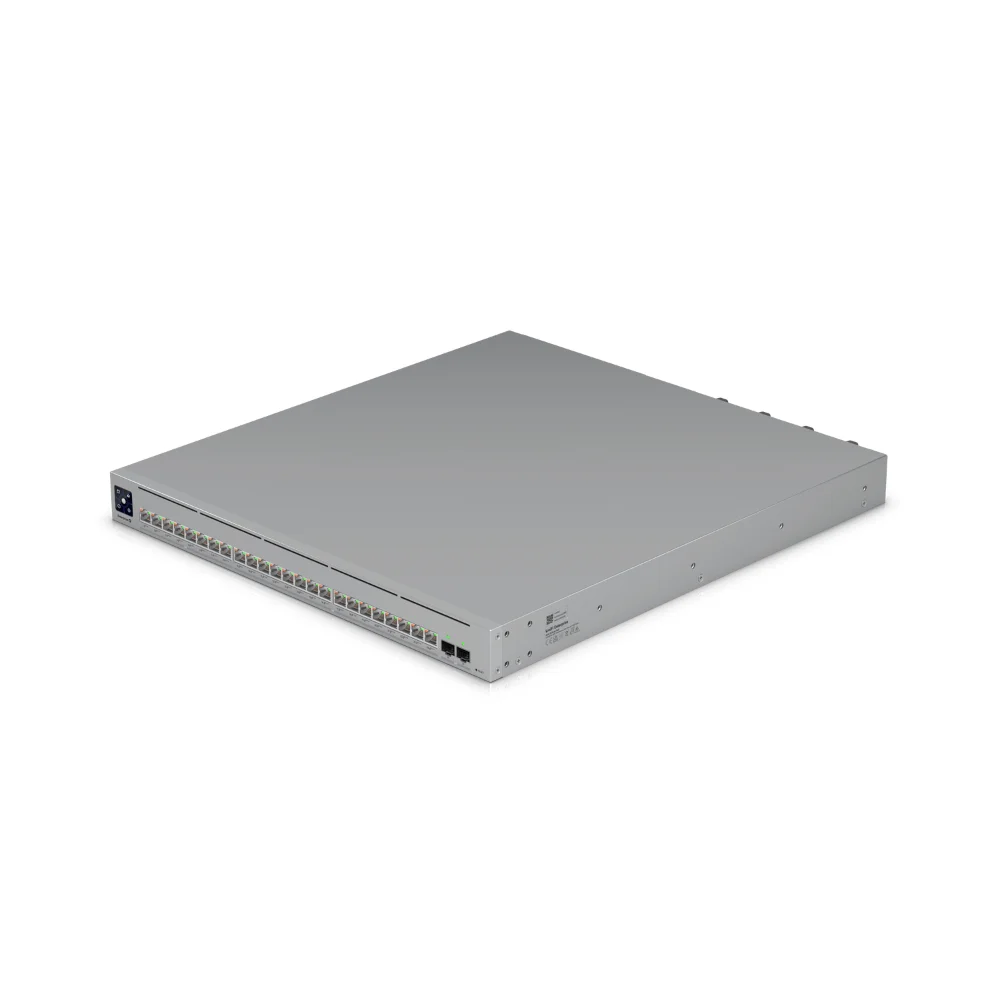

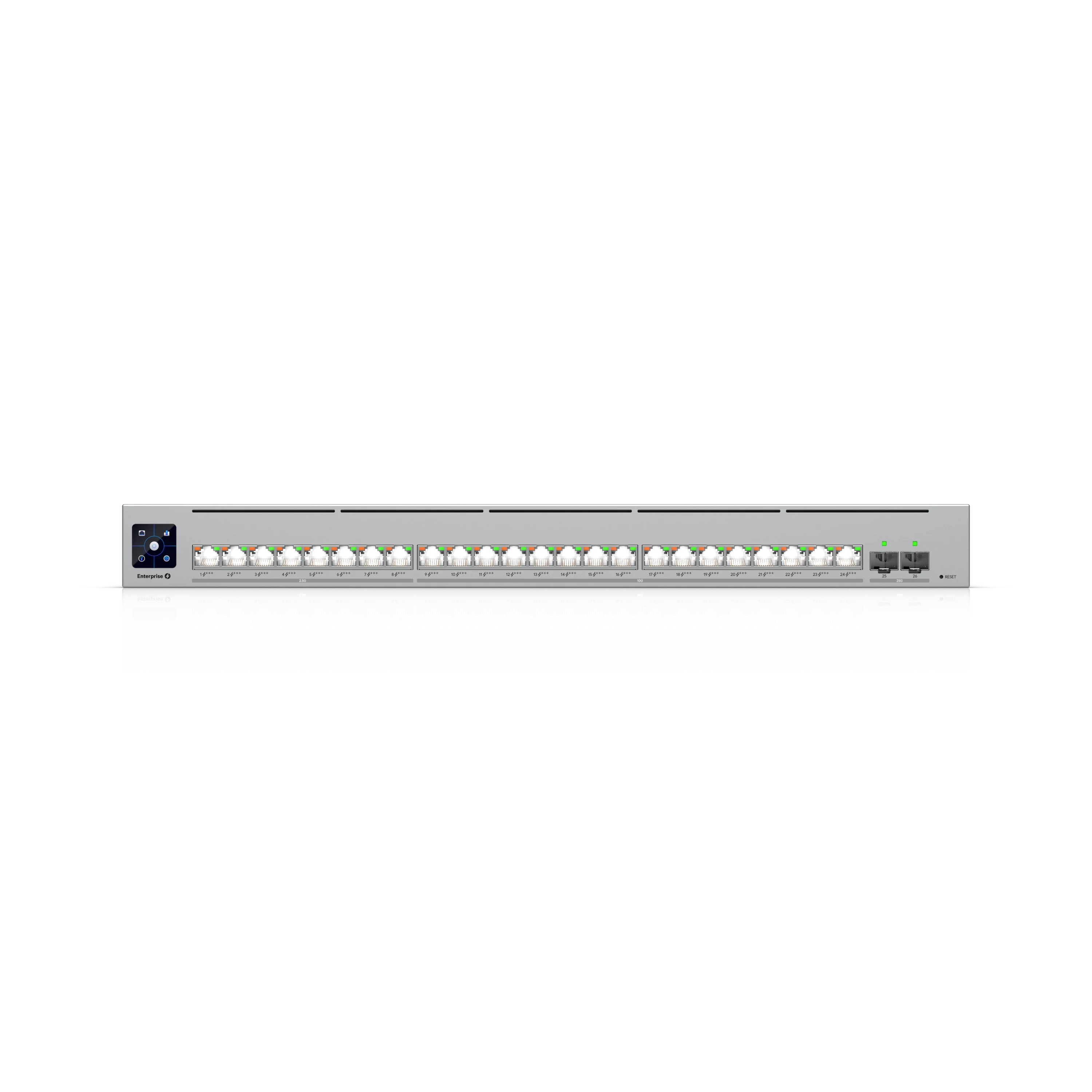

Enterprise Campus 24 PoE (ECS-24-PoE)

RM12,477.00

Brand

Ubiquiti Inc.

Quantity

1 unit available

Please input quantity

Description

Enterprise-grade 24-port, Layer 3 Etherlighting™ PoE+++ switch with high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.

Dimensions

442.4 x 43.7 x 496 mm
(17.4 x 1.7 x 19.5")

Port Layout

2.5 GbE RJ45

8 (All PoE+++)
(2.5G/1G/100M/10M)

10 GbE RJ45

16 (All PoE+++)
(10G/5G/2.5G/1G/100M/10M)

25G SFP28

2
(25G/10G/1G)

Max. PoE Output

Up to PoE+++

Total PoE Availability

100-240V AC Shared Mode: 1,050W with (2) 600W modules 100-240V AC Redundant Mode: 450W with (2) 600W modules 200-240V AC Shared Mode: 2,250W with (2) 1,200W modules 100-120V AC Shared Mode: 1,850W with (2) 1,200W modules 200-240V AC Redundant Mode: 1,050W with (2) 1,200W modules 100-120V AC Redundant Mode: 850W with (2) 1,200W modules

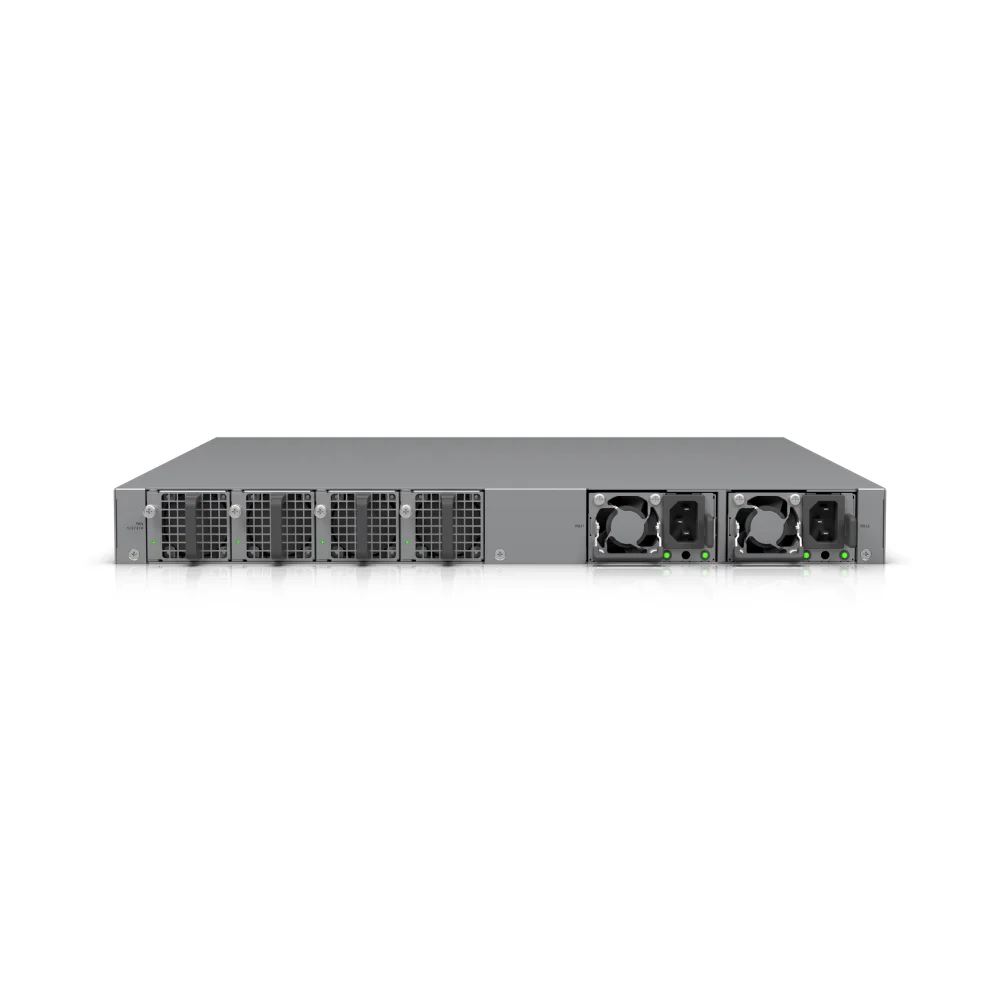

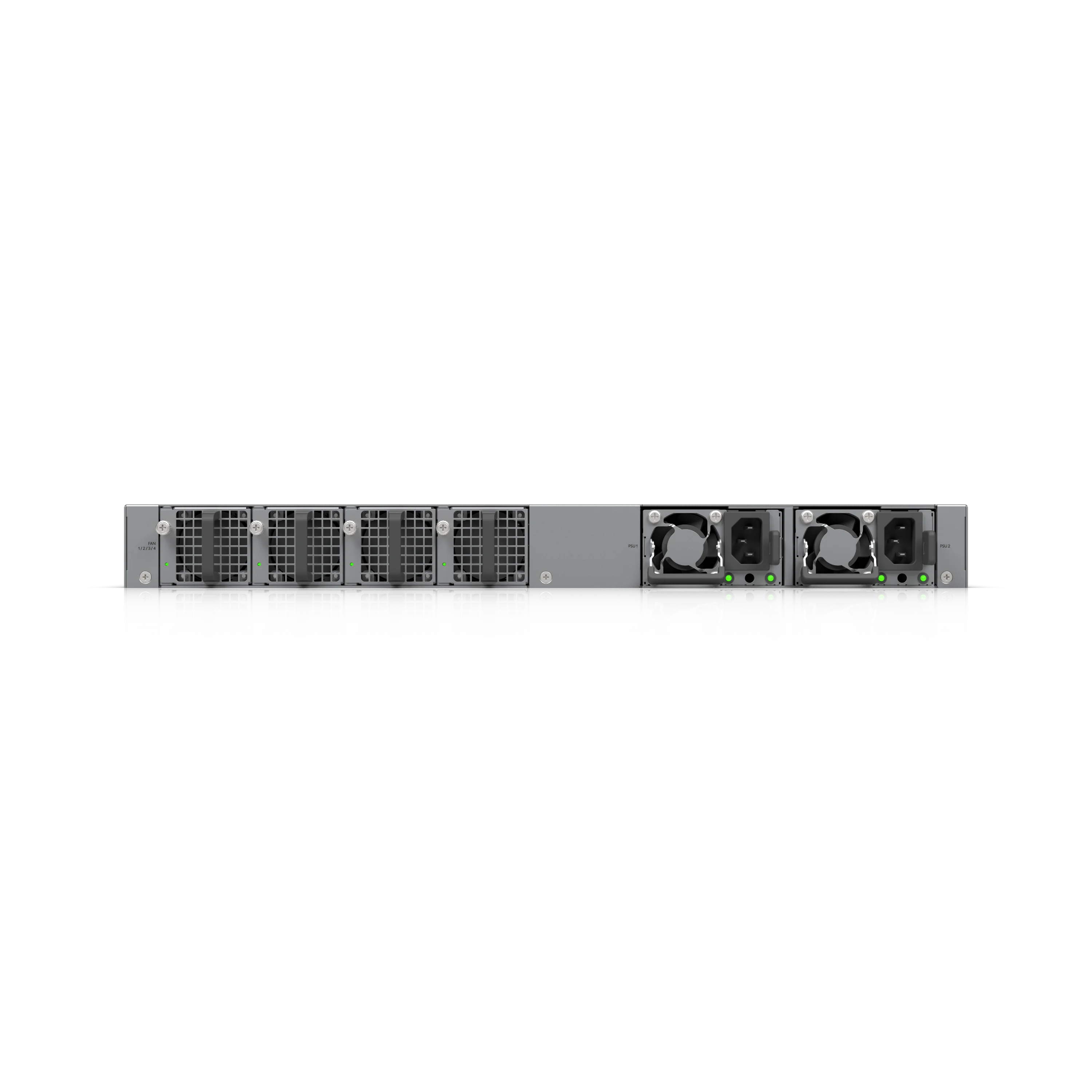

Redundancy

(2) Hot-Swappable PSUs
(4) Hot-Swappable Fans

Layer 3

✓

Form Factor

Rack Mount (1U, Full-Depth)

Etherlighting™

✓

Switching Capacity

460 Gbps

Total Non-Blocking Throughput

230 Gbps

Forwarding Rate

342 Mpps

Supported VLANs

1,000

MAC Address Table Size

128,000

L3 Table Size

ARP Entries

128,000

IPv4 Routes

256,000

Packet Buffer Size

8 MB

Access Lists

IPv4

256

MAC

256

DHCP Server (Local Networks)

✓

DHCP Relay

✓

Inter-VLAN Routing (Local Networks)

✓

Static Routing (Local Networks)

✓

LACP Port Aggregation

✓

STP & RSTP

✓

QoS (DSCP)

✓

Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)

✓

Advanced IGMP Configuration (Querier, Fast Leave, Router Port)

✓

IGMP Snooping

✓

802.1X Control

✓

MAC-Based ACLs & Device Isolation

✓

DHCP Snooping & Guarding

✓

Egress Rate Limit

✓

Flow Control

✓

Storm Control

✓

Multicast & Broadcast Rate Limiting

✓

MAC Address Blocking

✓

IP-Based ACLs & Network Isolation

✓

MAC-Based Port Restriction

✓

Port Isolation

✓

Port Mirroring

✓

Jumbo Frames

✓

LLDP-MED

✓

Voice VLAN

✓

Loop Protection

✓

PoE Ports

PoE+++

24

Max. PoE Wattage per Port by PSE

PoE

15.4W

PoE+

30W

PoE++

60W

PoE+++

90W

Max. Power Consumption

150W (Excluding PoE Output)
2400W (Including PoE Output)

Power Method

(2) Universal input, 100—240V AC, 50/60 Hz, 50/60 Hz

Power Input Method

(2) AC input, Hot-swappable power modules

Power Supply

(2) Hot-swappable AC/DC 600W power modules

Supported Voltage Range

100—240V AC

Management

Ethernet
AR

Weight

Without mounting brackets: 9.46 kg (20.9 lb)
With mounting brackets: 9.56 kg (21.1 lb)

Enclosure Material

SGCC steel

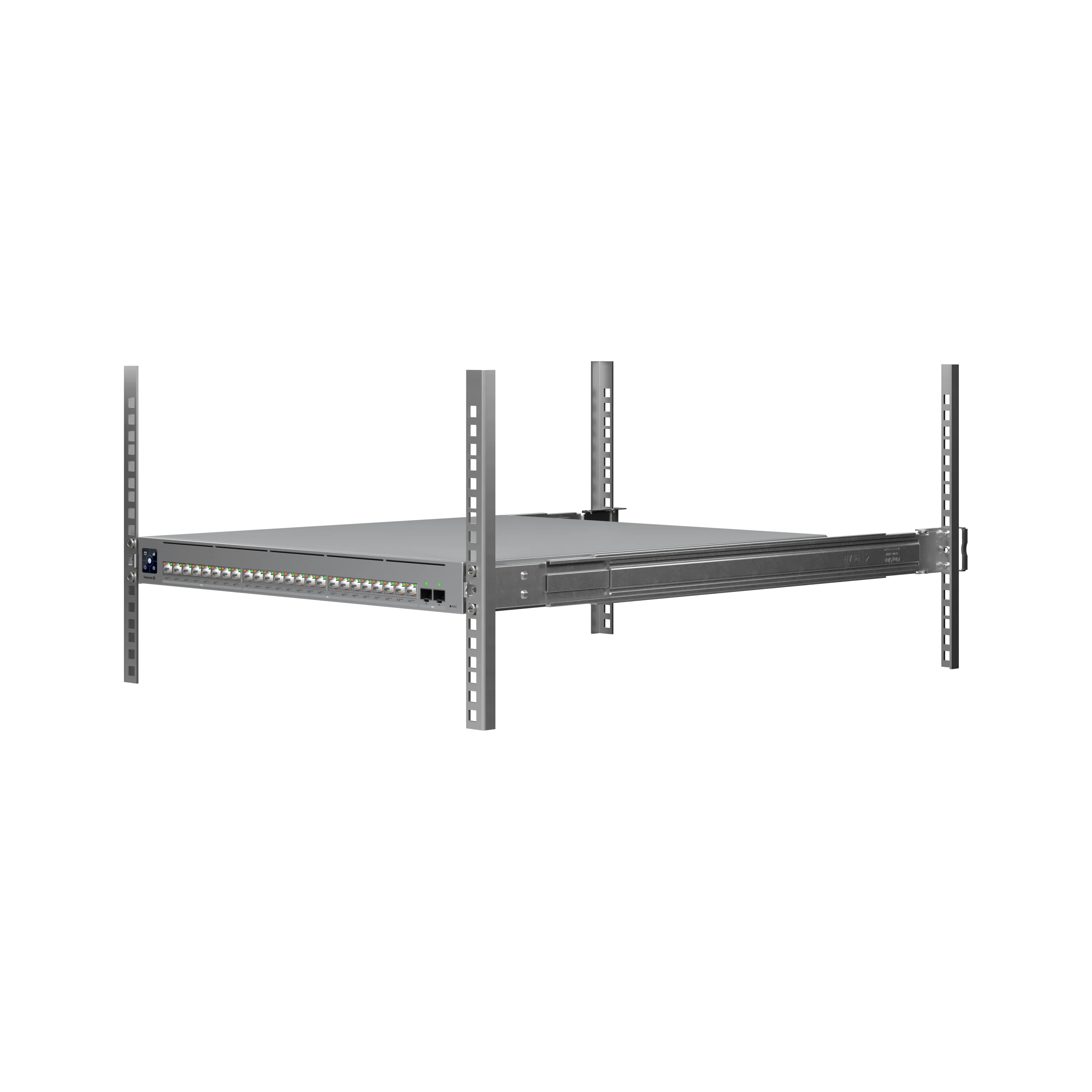

Supported Rack Depth

482.6 mm (19") four-post racks
Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)

LCM Display

1.3" touchscreen

Fan Method

(4) hot-swappable fan modules

ESD Protection

Air: ± 30kV, contact: ± 30kV

Ambient Operating Temperature

-5 to 40° C (23 to 104° F)

Ambient Operating Humidity

10 to 90% noncondensing

Etherlighting™

Ethernet

✓

SFP28

✓

LEDs

Ethernet

✓

System

✓

NDAA Compliant

✓

Certifications

CE, FCC, IC

Application Requirements

UAP Network

Version 9.0.114 and later
