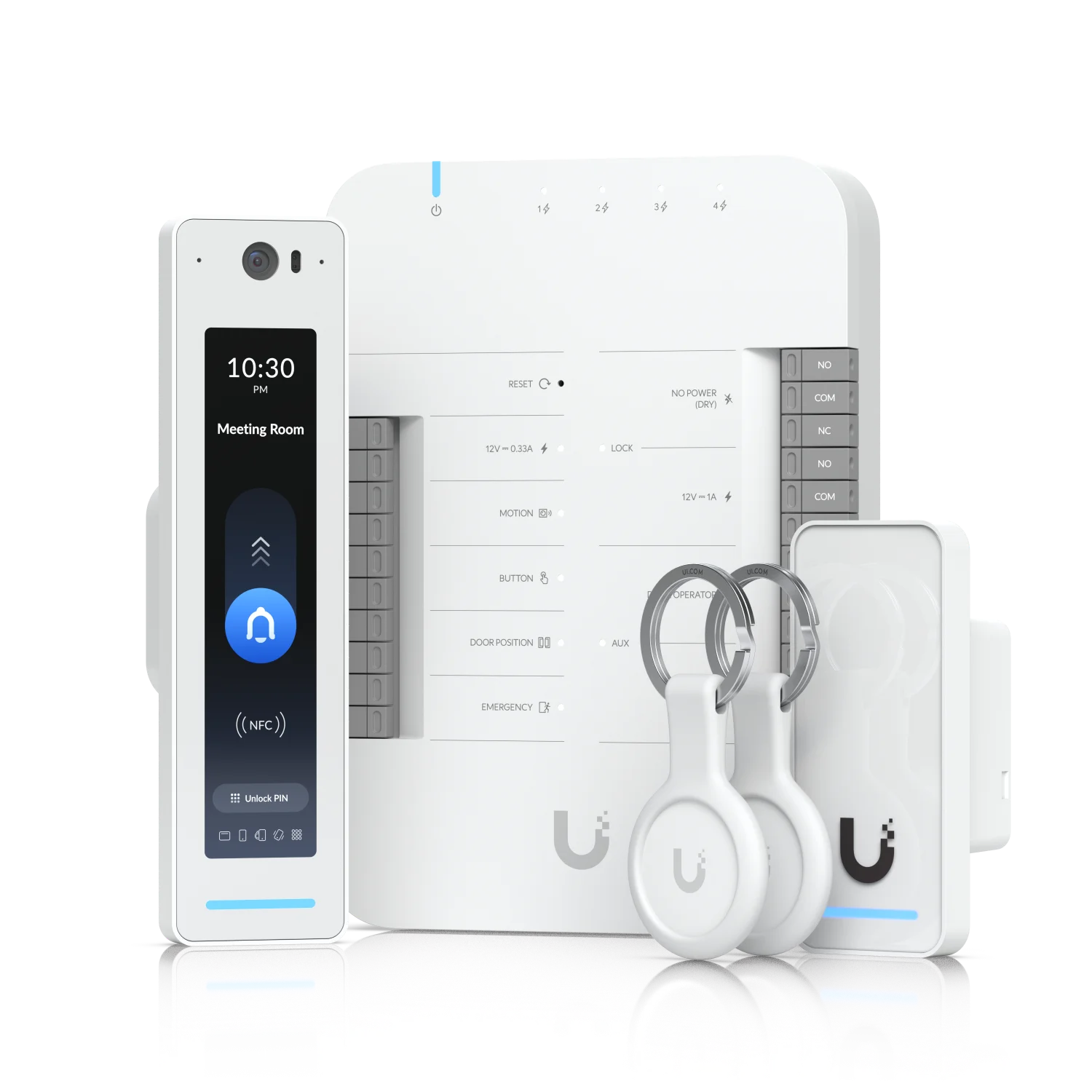

G3 Starter Kit Pro (UA-G3-SK-Pro)

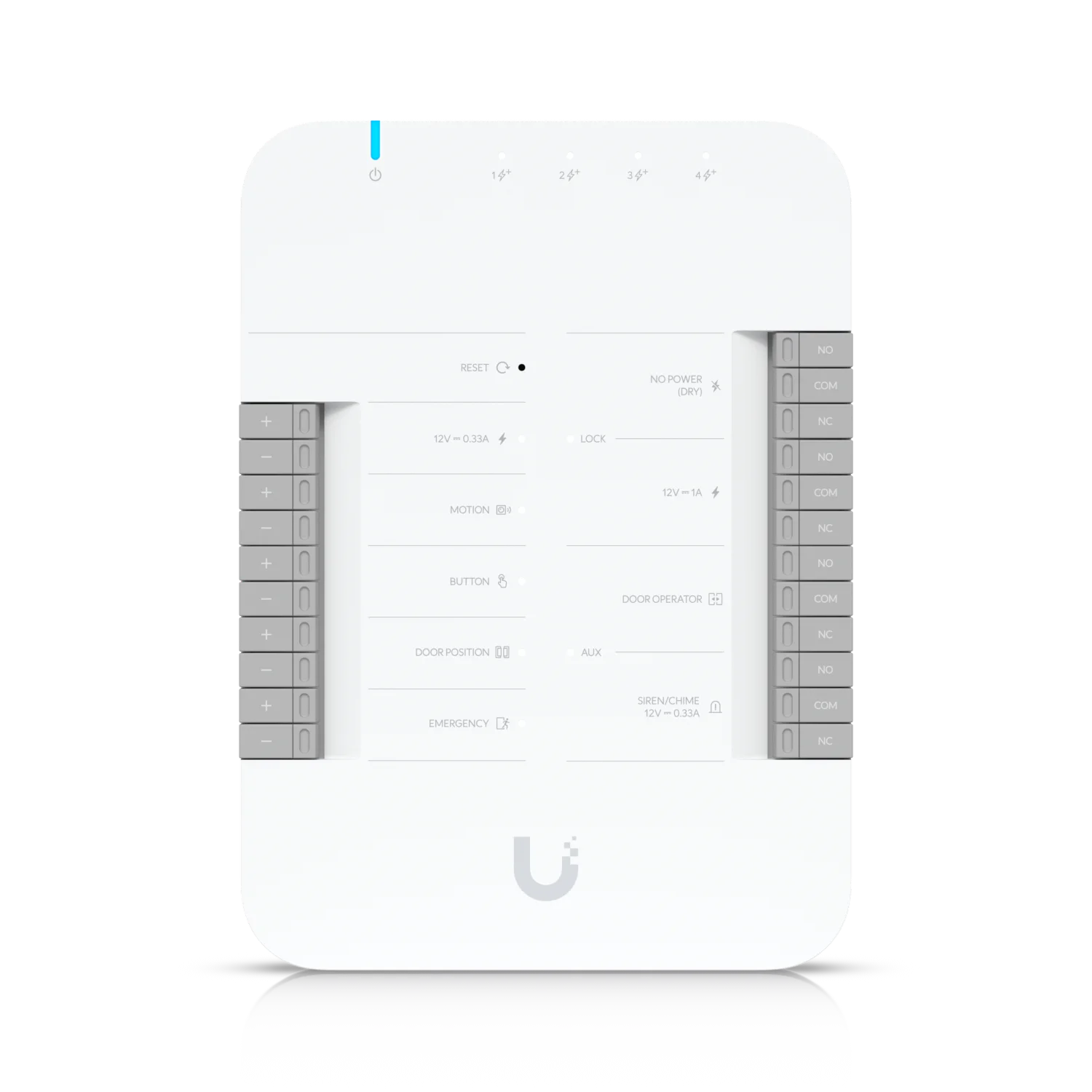

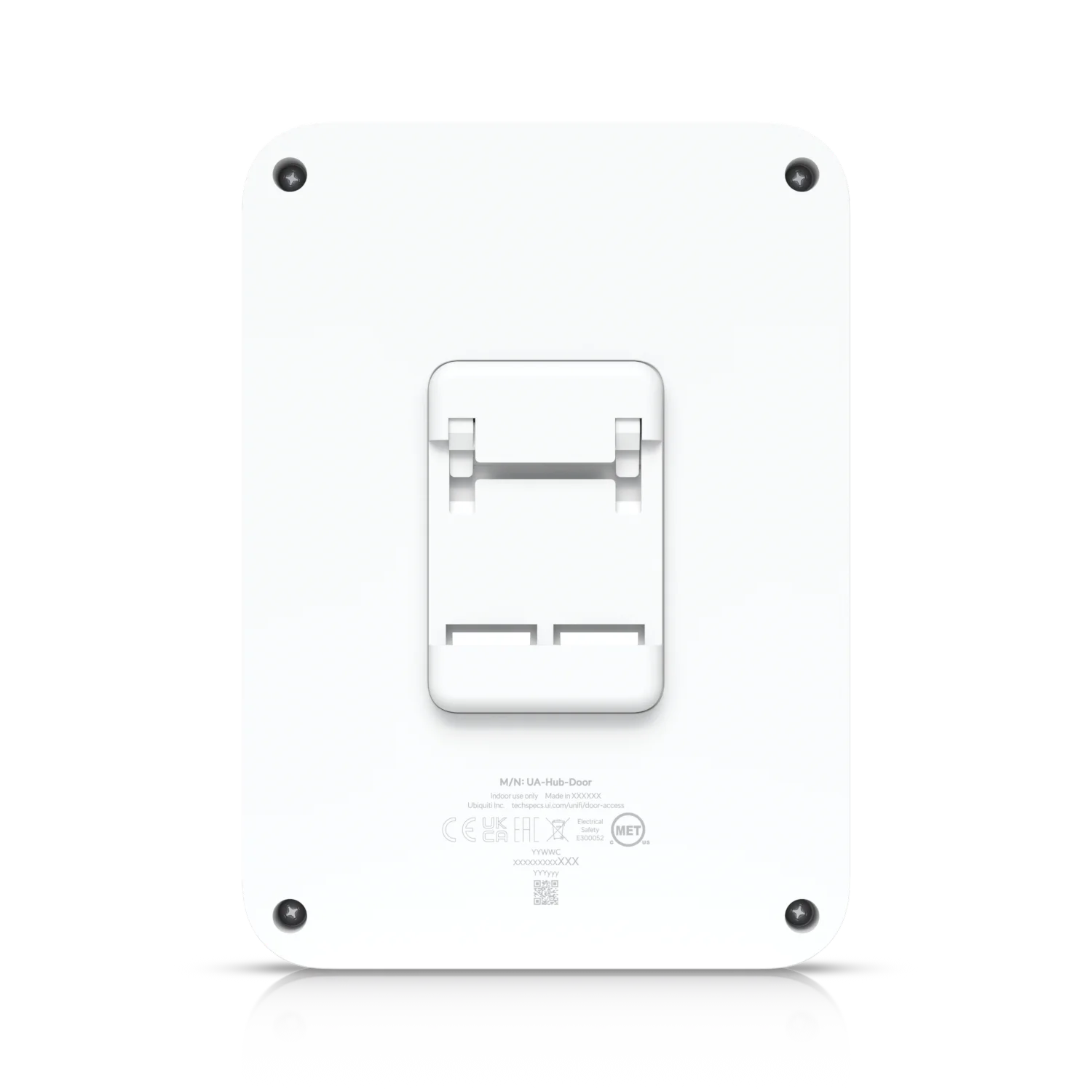

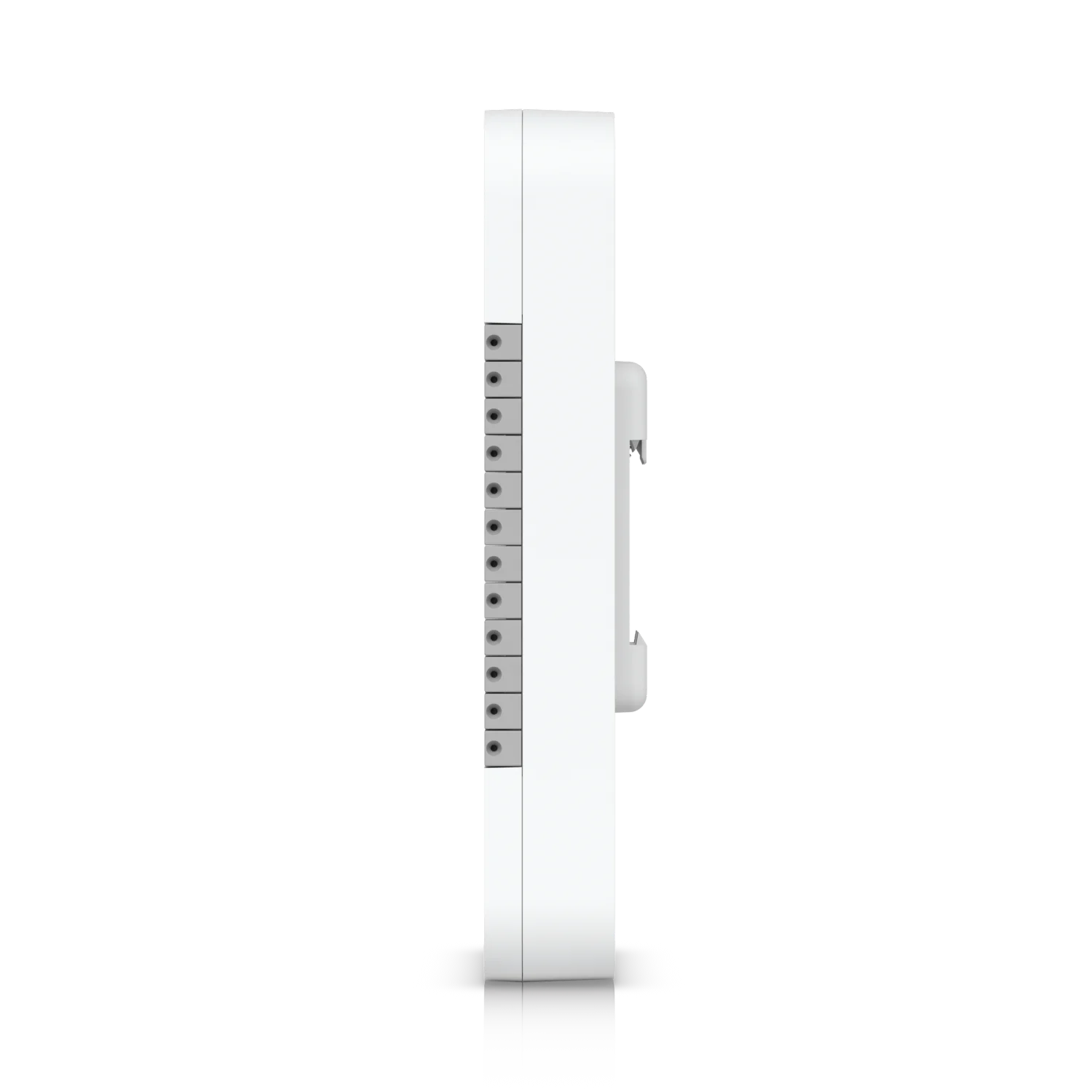

(1) Door Hub

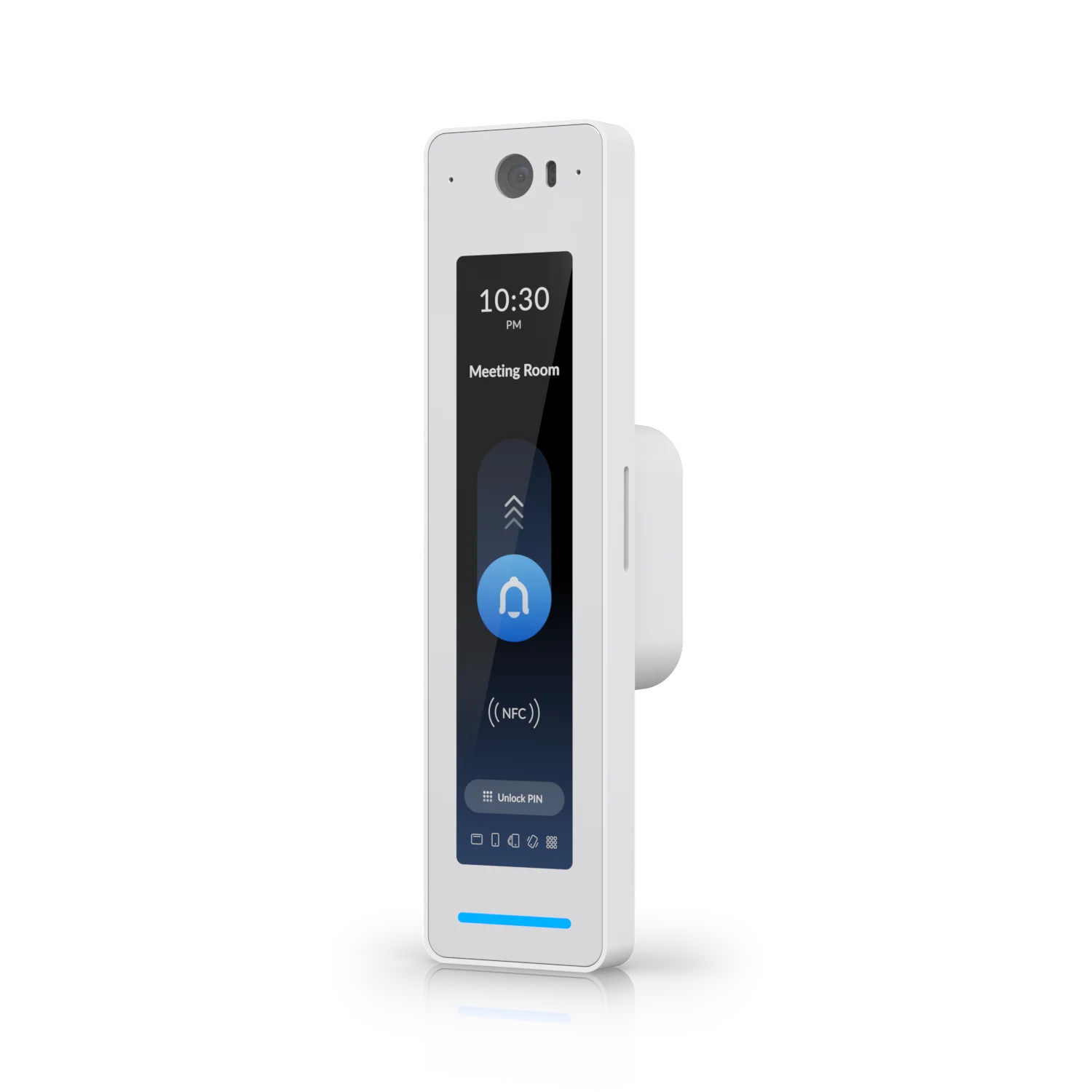

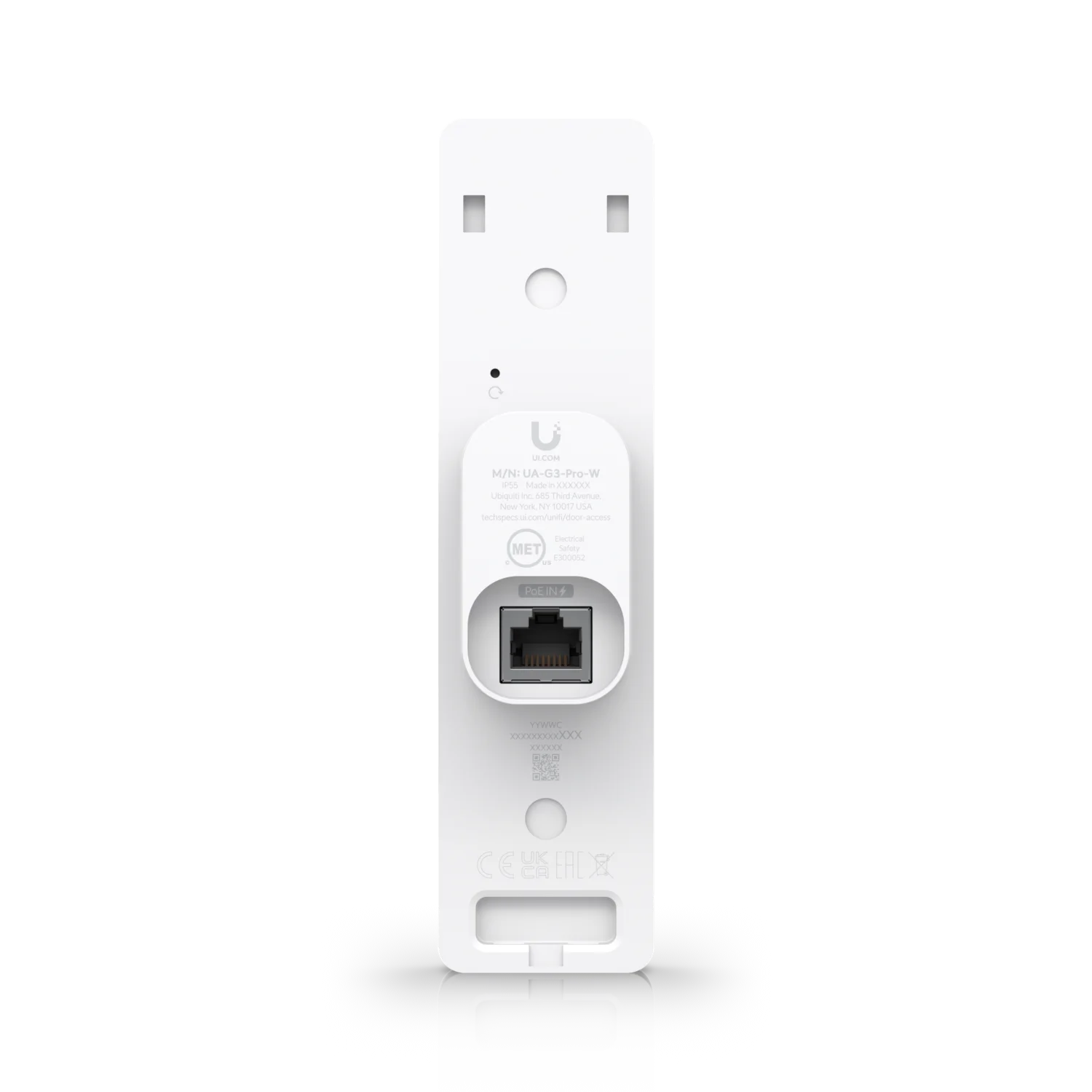

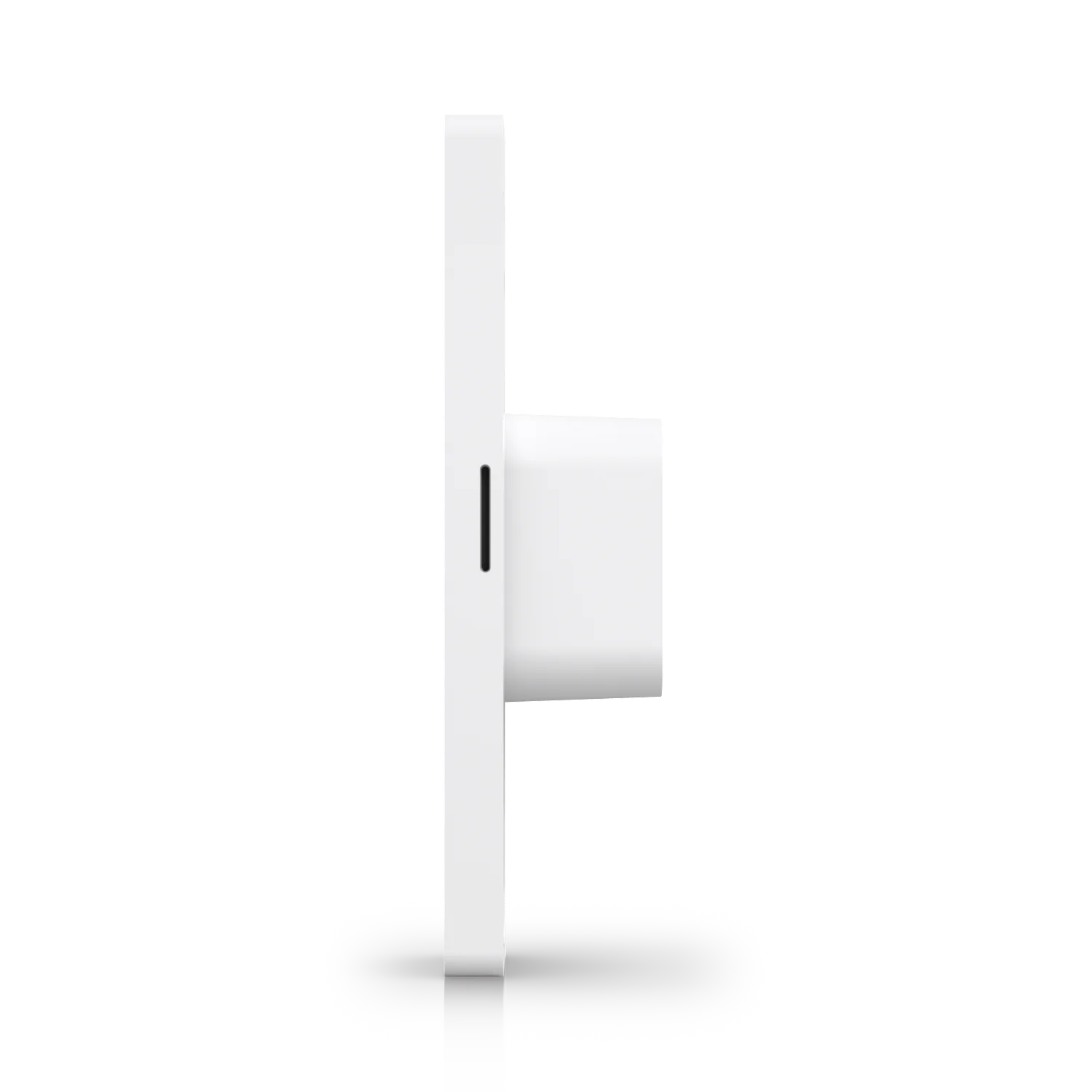

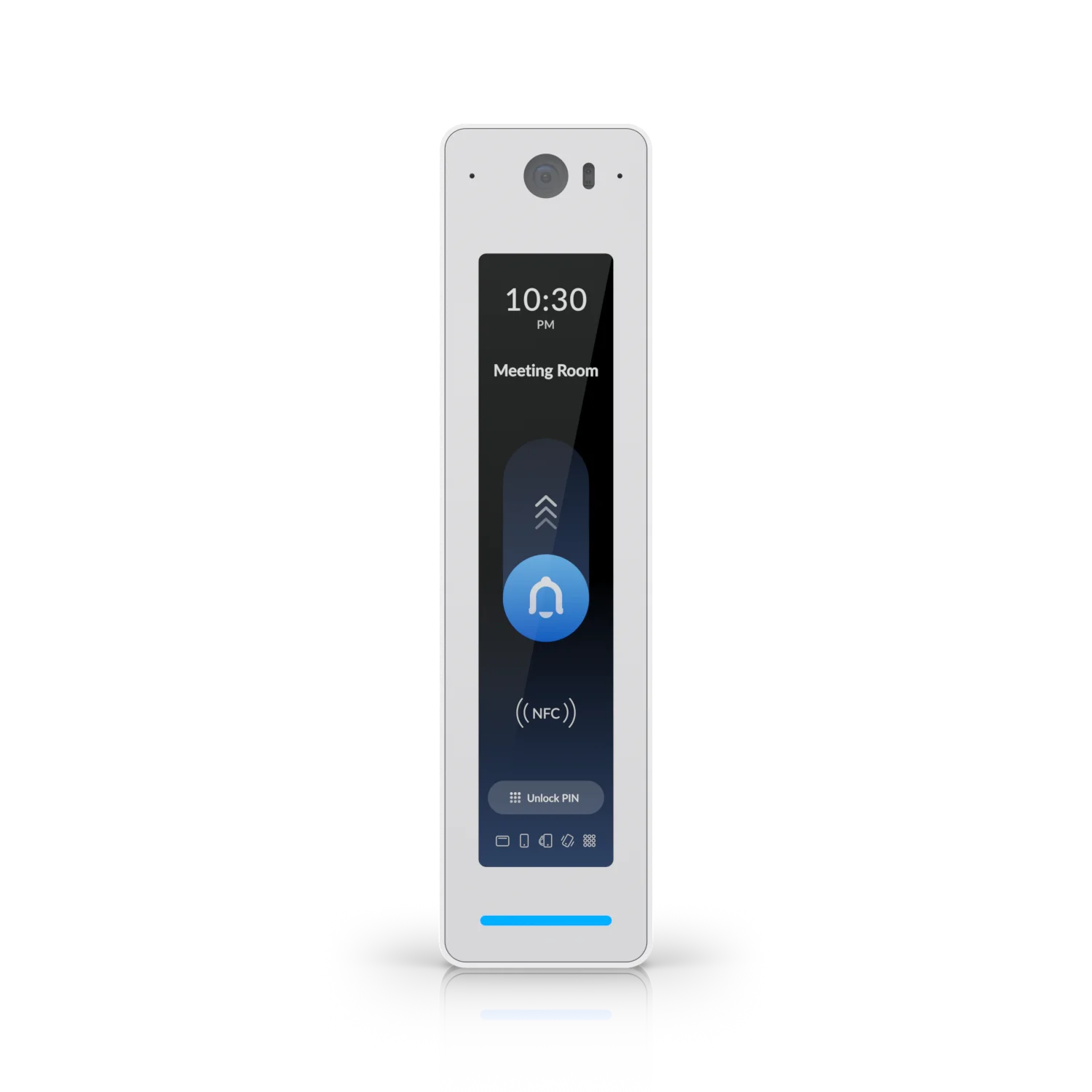

(1) G3 Reader Pro

(1) G3 Reader

(2) Pocket Keyfobs

10 free 1-year Touch Passes included Learn More

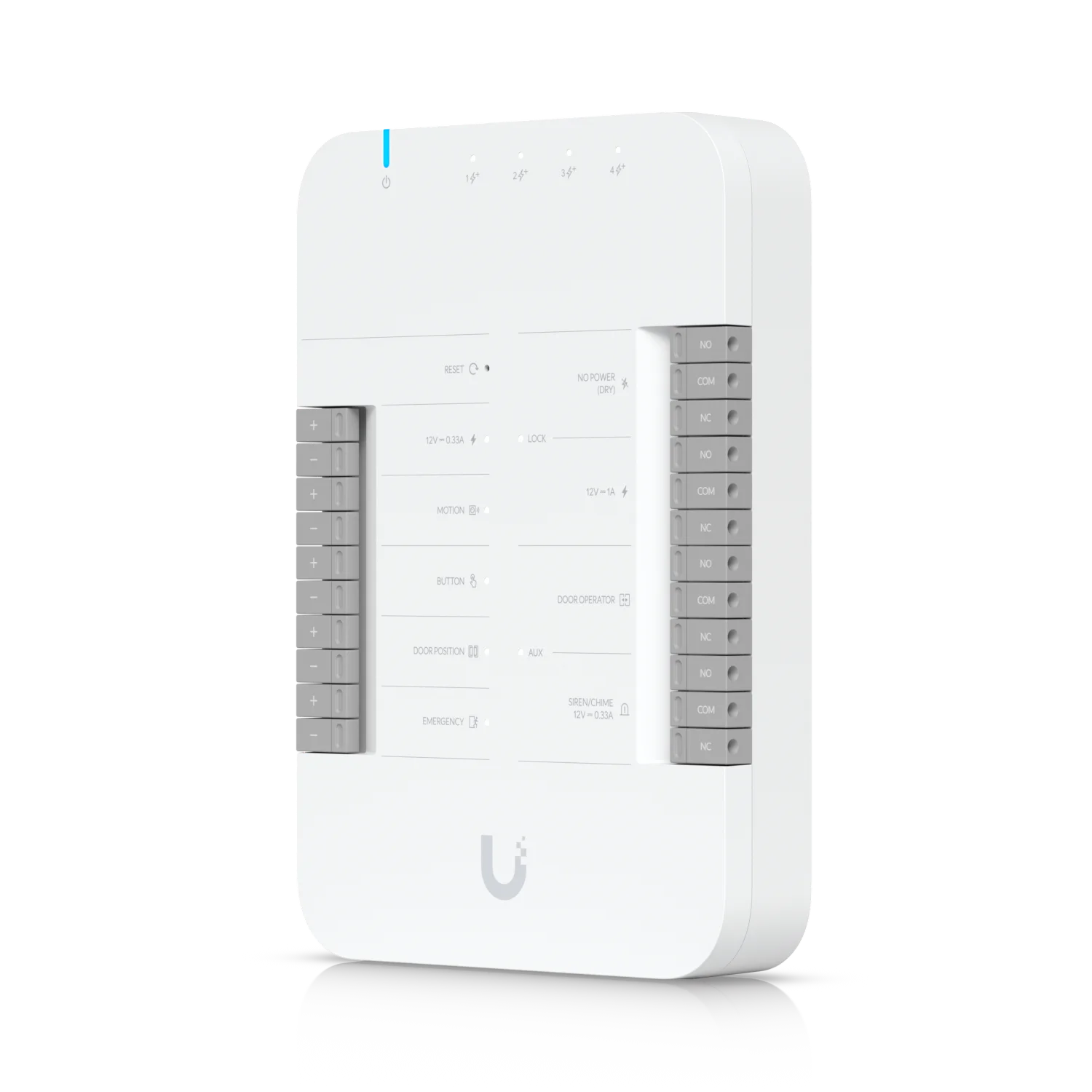

174.9 x 126 x 32.9 mm

(6.9 x 5 x 1.3")

1

6,000

(2) Door exit request

(1) Door position

(1) Emergency

PoE++

UL 294 Power-limited Class 2 PSU

UL 60950-1/62368-1 LPS/PS2 PSU

Destructive attack: Level I

Line security: Level I

Endurance: Level I

Standby power: Level I

363 g (12.8 oz)

Polycarbonate

Polycarbonate

DIN-rail (Included)

0 to 40° C (32 to 104° F)

5 to 95% noncondensing

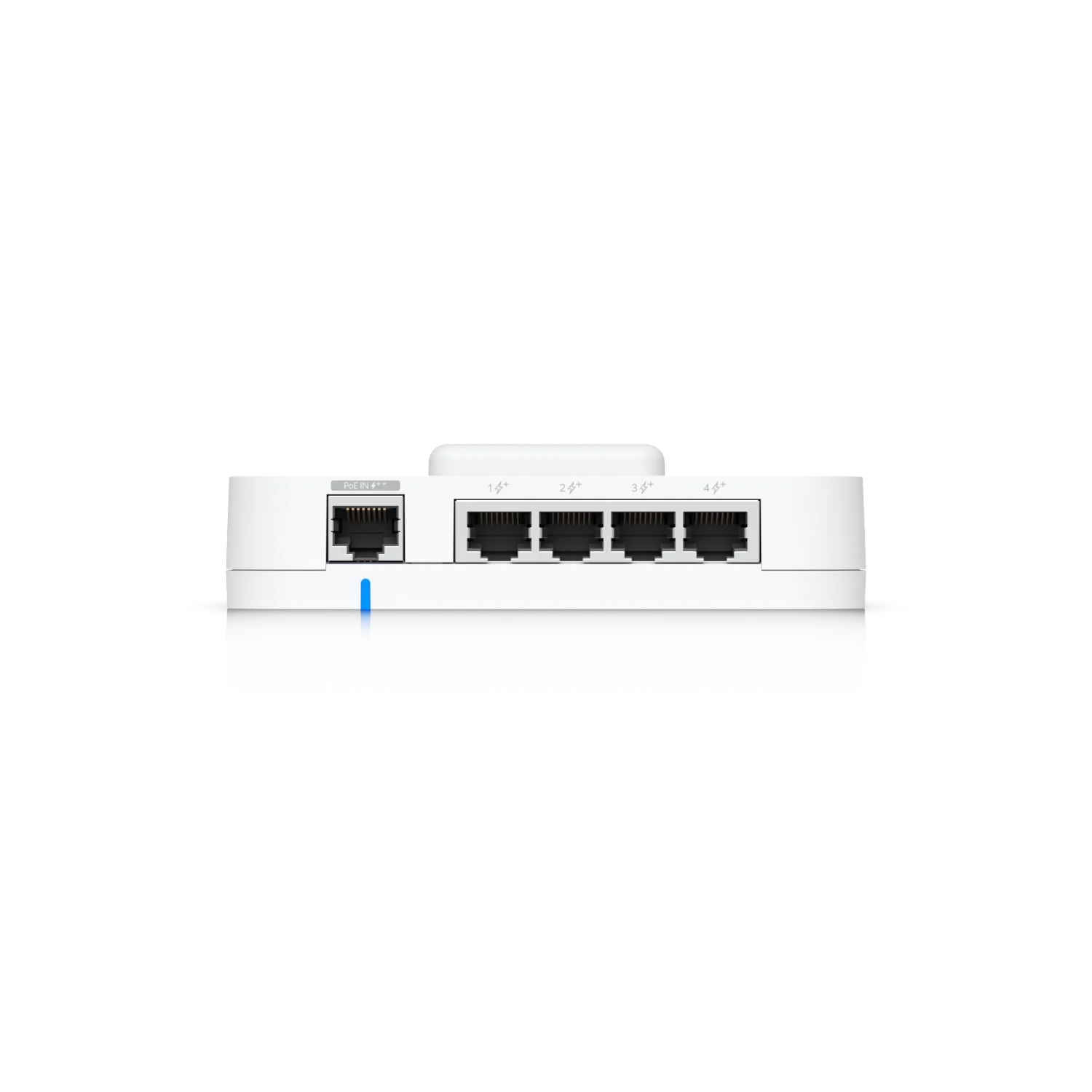

(5) 10/100/1000 Base-T

(1) PoE++ input, 50V DC, 1A

(4) PoE outputs, 50V DC, 30W per port

(Max 45W aggregated)

30W (Without PoE output)

50W (With PoE output)

Request to exit, request to enter, remote release, door position sensor

Lock: 30V DC, 1A

Aux: 30V DC, 1A

Lock: 12V DC, 1A

Aux: 12V DC, 0.33A

12V DC, 0.33A

B/W Learn More

(1) Factory-reset

24 AWG length: 25 m (82 ft)

22 AWG length: 42 m (138 ft)

20 AWG length: 66 m (217 ft)

18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)

24 AWG length: 20 m (66 ft)

22 AWG length: 32 m (105 ft)

20 AWG length: 51 m (167 ft)

18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)

24 AWG length: 12 m (29 ft)

22 AWG length: 20 m (98 ft)

20 AWG length: 30 m (167 ft)

18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)

24 AWG length: 9 m (30 ft)

22 AWG length: 15 m (49 ft)

20 AWG length: 24 m (79 ft)

18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)

Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.

The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.

Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294.

The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

Grade assignment: 1

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

UA-Hub-Door002, V01

The software version can be checked at https://unifi.ui.com

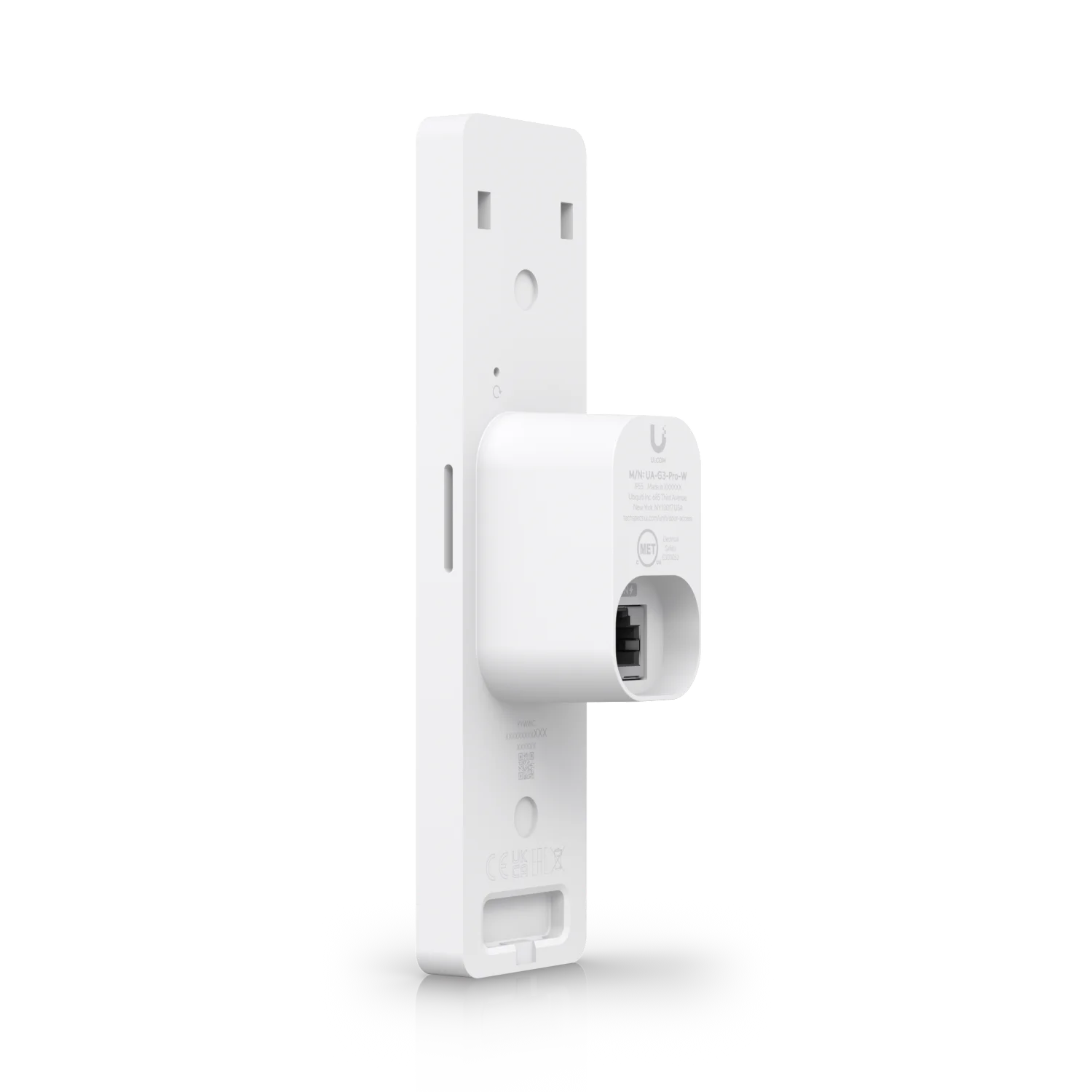

160 x 40.4 x 40.55 mm

(6.3 x 1.59 x 1.6")

✓

✓

✓

✓

✓

✓

IP55

✓

Destructive attack: Level I

Line security: Level I

Endurance: Level I

Standby power: Level I

136 g (4.8 oz)

Polycarbonate, glass

Aluminum alloy

Wall, gang-box mount (Included)

Angle mount, junction box (Optional)

✓

Device: -30 to 45° C (-22 to 113° F)

Display: -10 to 45° C (14 to 113° F)

5 to 90% noncondensing

(1) GbE RJ45 port

BLE 4.2

NFC

PoE

UL 294 Power-limited Class 2 PSU

UL 60950-1/62368-1 LPS/PS2 PSU

6W

48V DC

Air: ±15kV, contact: ±8kV

Proximity sensor

120 mm (4.7") diagonal

Capacitive touch

480 nits (Typical)

Portrait

1280 x 286 px

✓

(1) Yes, 1.5W

R/G/B/W/Amber Learn More

(1) Factory-reset

13.56 MHz

< 30 mm (1.18'')

ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)

MIFARE Classic / MIFARE DESFIRE

Sony FeliCa™ (ID only)

NFC Forum tags T1T, T2T, T3T, T4T and T5T

ECP 2.0

Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.

The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.

Compliance with IEEE 802.3 specifications was not verified as part of UL 294.

The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

Grade assignment: I

CE, FCC, IC,UL 294, CAN/ULC-60839-11-1

UA-G3-Pro-W/UA-G3-Pro-B, V01

The software version can be checked at https://unifi.ui.com

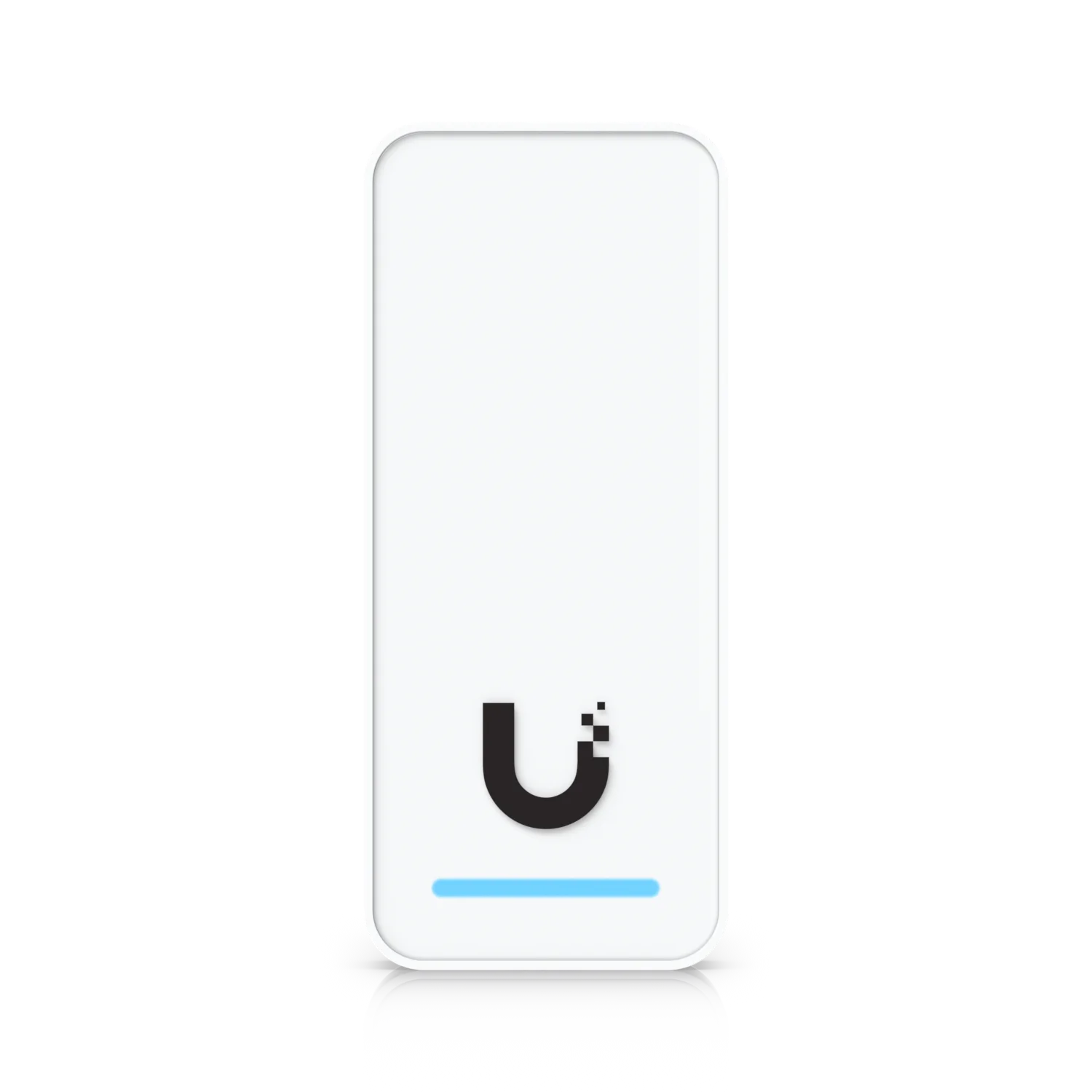

93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")

✓

✓

✓

✓

IP55

✓

Destructive attack: Level I

Line security: Level I

Endurance: Level I

Standby power: Level I

82 g (2.9 oz)

Polycarbonate, glass

Aluminum alloy

In-wall, gang box (Included)

Junction box (Optional)

✓

-30 to 45° C (-22 to 113° F)

5 to 90% noncondensing

(1) 10/100 MbE RJ45 port

BLE 4.1

NFC

PoE

UL 294 Power-limited Class 2 PSU

UL 60950-1/62368-1 LPS/PS2 PSU

5W

48V DC

Air: ±15kV, contact: ±8kV

Proximity sensor

(1) Yes, 0.7W

R/G/B/W Learn More

(1) Factory-reset

13.56 MHz

< 30 mm (1.18'')

ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)

MIFARE Classic / MIFARE DESFIRE

Sony FeliCa™ (ID only)

NFC Forum tags T1T, T2T, T3T, T4T and T5T

ECP 2.0

Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.

The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.

Compliance with IEEE 802.3 specifications was not verified as part of UL 294.

The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

Grade assignment: I

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

UA-G3, V01

The software version can be checked at https://unifi.ui.com

84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29")

16 g (0.56 oz)

Polycarbonate, stainless steel, silicone rubber

IP54

✓

10 to 90% noncondensing

-10 to 45° C (14 to 113° F)

13.56 MHz

ISO/IEC 14443 Type A

MIFARE DESFire EV3 4K

UniFi Access Proprietary Security Protocol

CE
