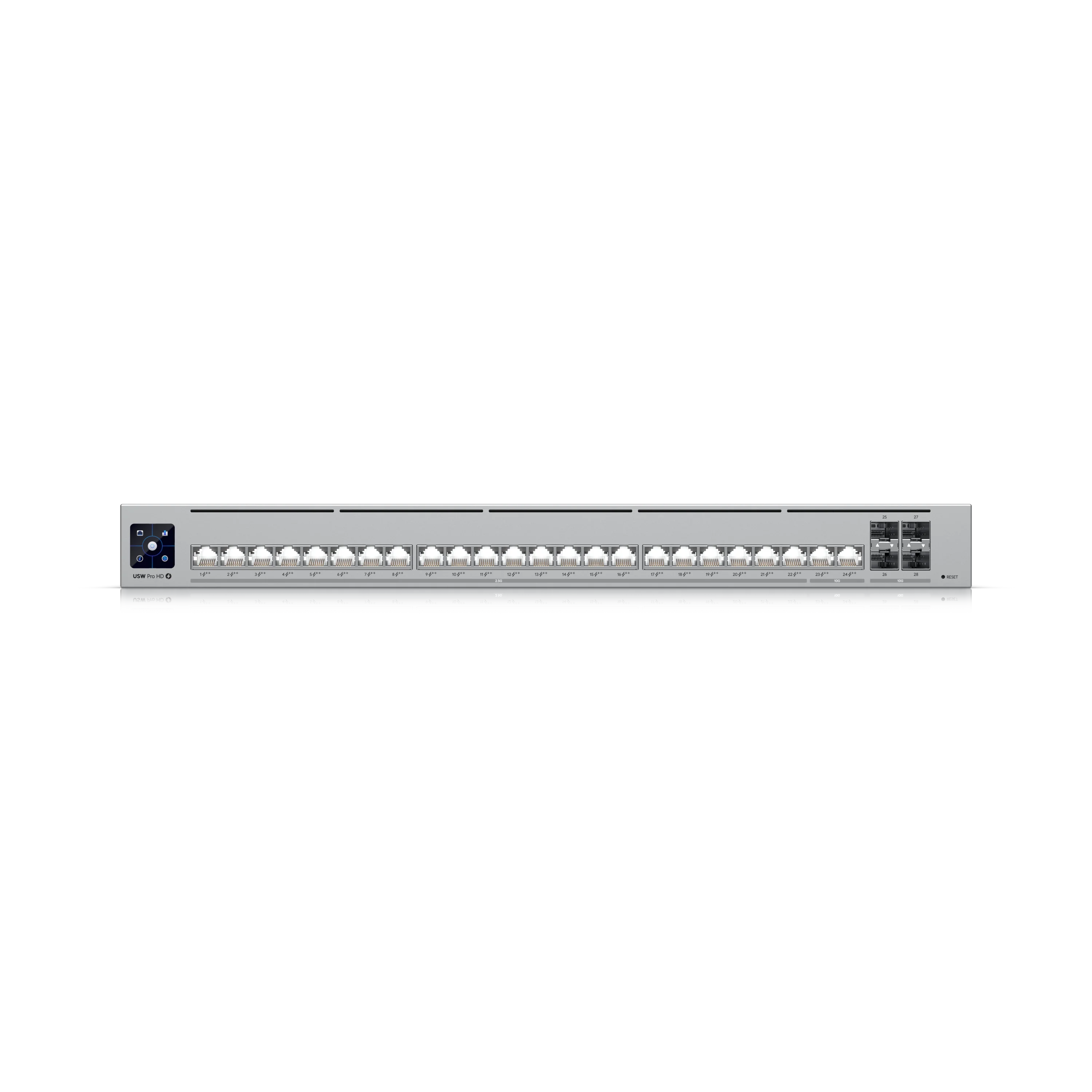

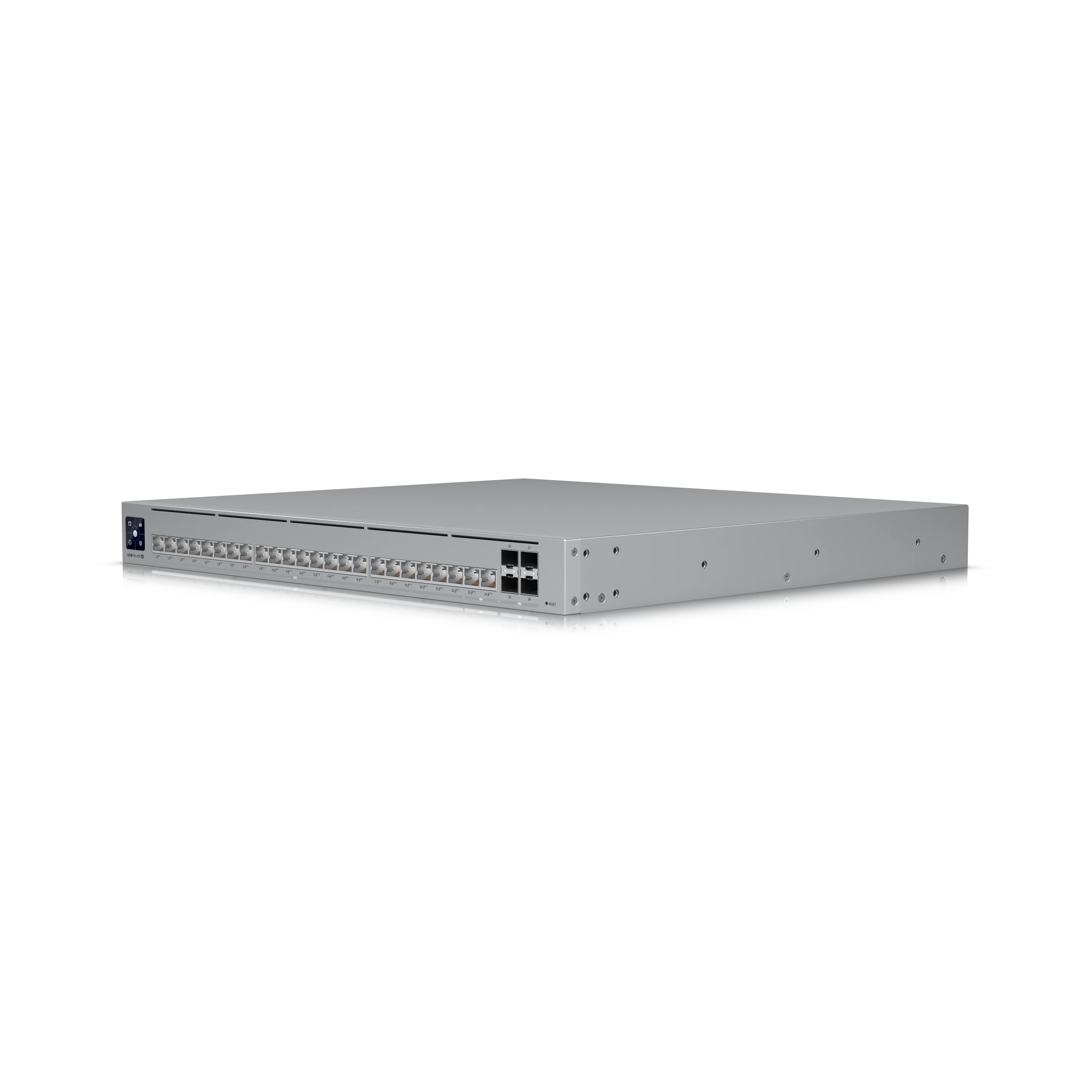

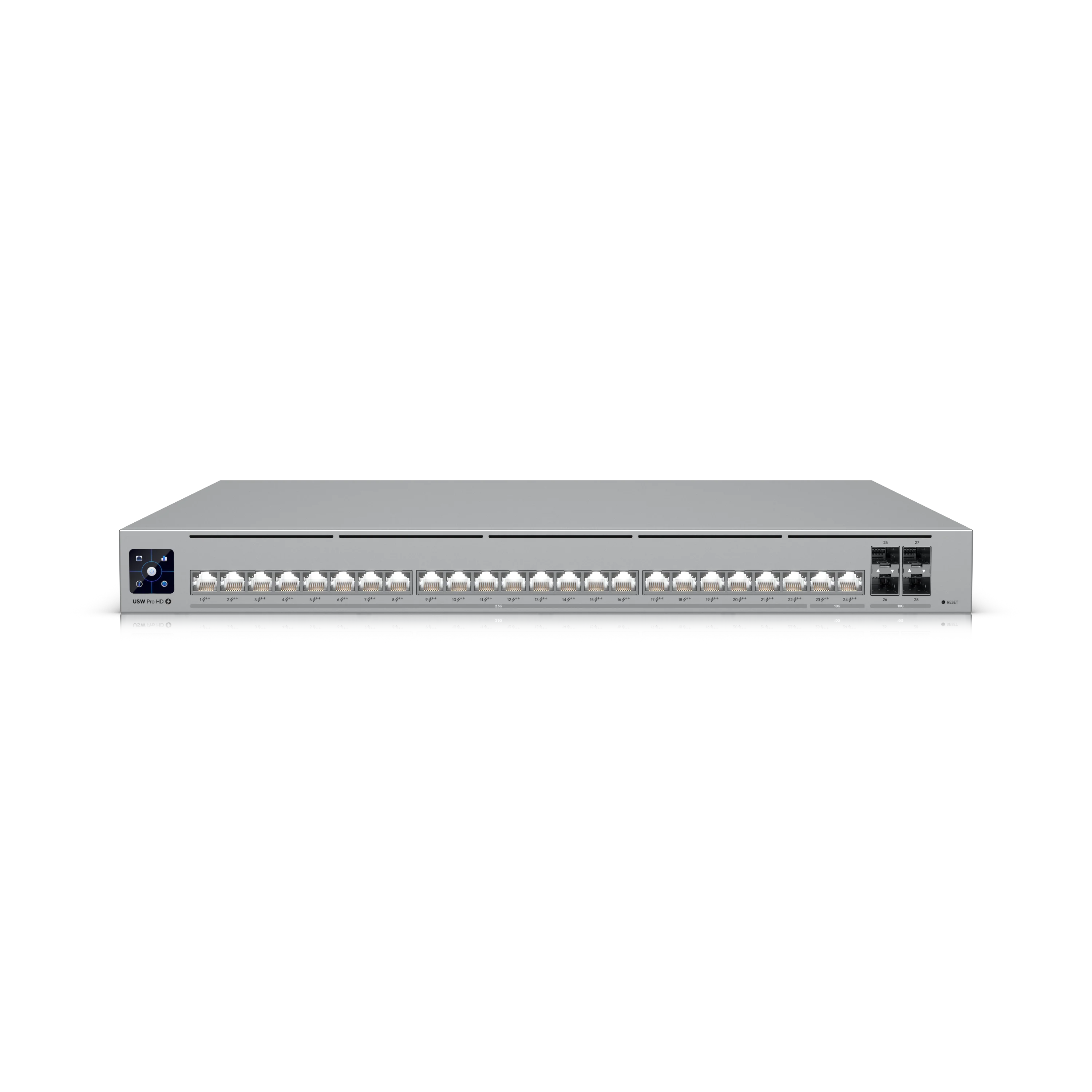

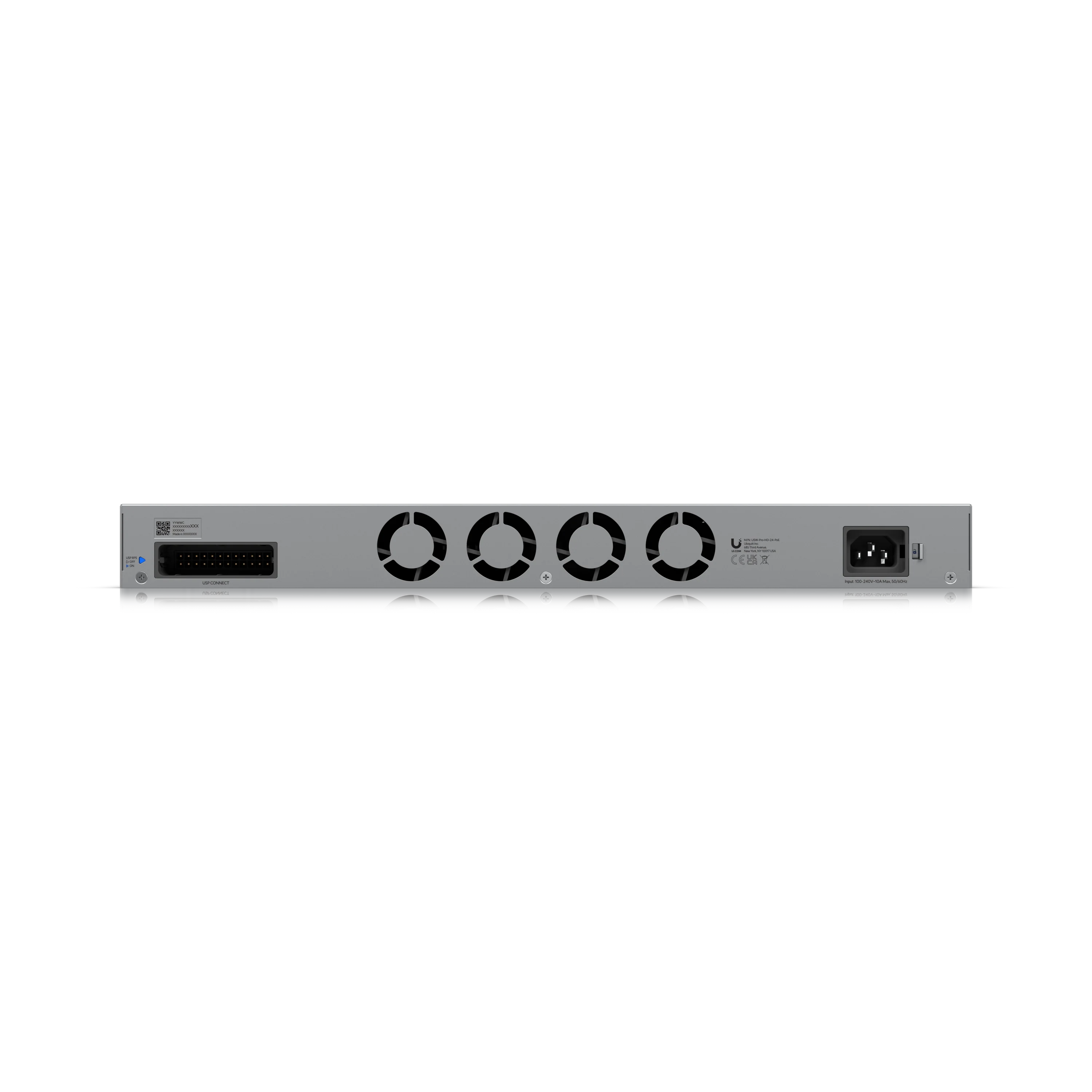

Pro HD 24 PoE (USW-Pro-HD-24-PoE)

RM5,610.00

Brand

Quantity

5 unit available

Please input quantity

Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports.

Dimensions

442 x 400 x 44 mm
(17.4 x 15.7 x 1.7")

Port Layout

2.5 GbE RJ45

22 (All PoE++)
(2.5G/1G/100M/10M)

10 GbE RJ45

2 (All PoE++)
(10G/5G/2.5G/1G/100M)

10G SFP+

4
(10G/1G)

Max. PoE Output

Up to PoE++

Total PoE Availability

600W

Redundancy

DC Power Backup

Layer 3

✓

Form Factor

Rack mount (1U)

Etherlighting™

✓

Switching Capacity

230 Gbps

Total Non-Blocking Throughput

115 Gbps

Forwarding Rate

171 Mpps

Supported VLANs

1,000

MAC Address Table Size

32,000

L3 Table Size

ARP Entries

12,000

IPv4 Routes

12,000

Packet Buffer Size

2 MB

Access Lists

IPv4

128

MAC

128

DHCP Server (Local Networks)

✓

DHCP Relay

✓

Inter-VLAN Routing (Local Networks)

✓

Static Routing (Local Networks)

✓

LACP Port Aggregation

✓

STP & RSTP

✓

QoS (DSCP)

✓

Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)

✓

Advanced IGMP Configuration (Querier, Fast Leave, Router Port)

✓

IGMP Snooping

✓

802.1X Control

✓

MAC-Based ACLs & Device Isolation

✓

DHCP Snooping & Guarding

✓

Egress Rate Limit

✓

Flow Control

✓

Storm Control

✓

Multicast & Broadcast Rate Limiting

✓

MAC Address Blocking

✓

IP-Based ACLs & Network Isolation

✓

MAC-Based Port Restriction

✓

Port Isolation

✓

Port Mirroring

✓

Jumbo Frames

✓

LLDP-MED

✓

Voice VLAN

✓

Loop Protection

✓

Virtual Network Override

✓

PoE Ports

PoE++

24

Max. PoE Wattage per Port by PSE

PoE

15.4W

PoE+

30W

PoE++

64W

Max. Power Consumption

60W (Excluding PoE Output)
660W (Including PoE Output)

Power Method

(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input

Power Input Method

AC input

Power Supply

AC/DC, internal, 660W

Supported Voltage Range

100—240V AC

Management

Ethernet
AR

Weight

Without mounting brackets: 6.2 kg (13.7 lb)
With mounting brackets: 6.3 kg (13.9 lb)

Enclosure Material

SGCC steel

Mount Material

SGCC steel

Supported Rack Depth

600 - 1,200 mm (23.6- 47.2" )

LCM Display

1.3" touchscreen

Ambient Operating Temperature

-5 to 40° C (23 to 104° F)

Ambient Operating Humidity

10 to 90% noncondensing

Etherlighting™

Ethernet

✓

SFP+

✓

NDAA Compliant

✓

Certifications

CE, FCC, IC, Anatel: 03853-25-08356

Application Requirements

UniFi Network

Version 9.0.114 and later
