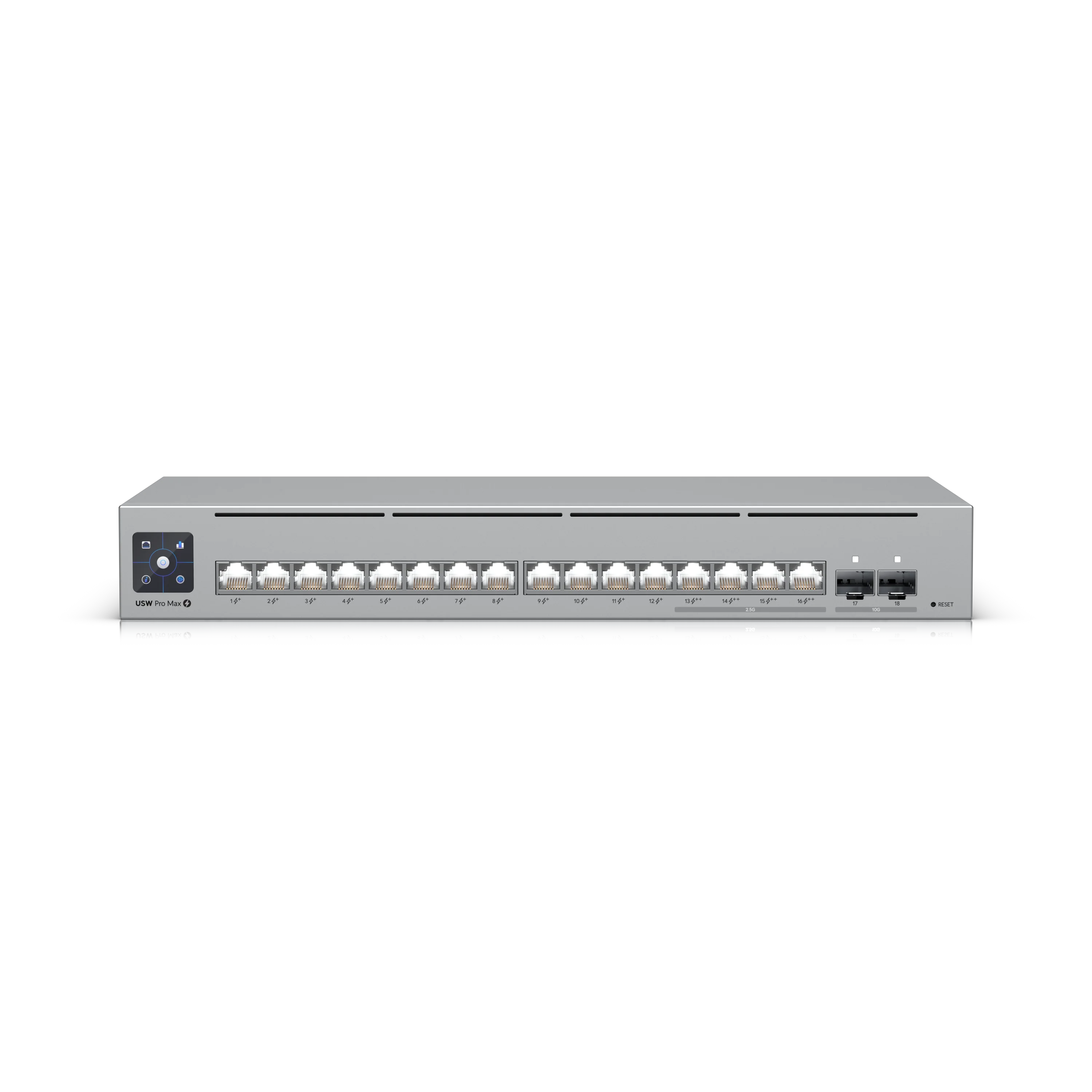

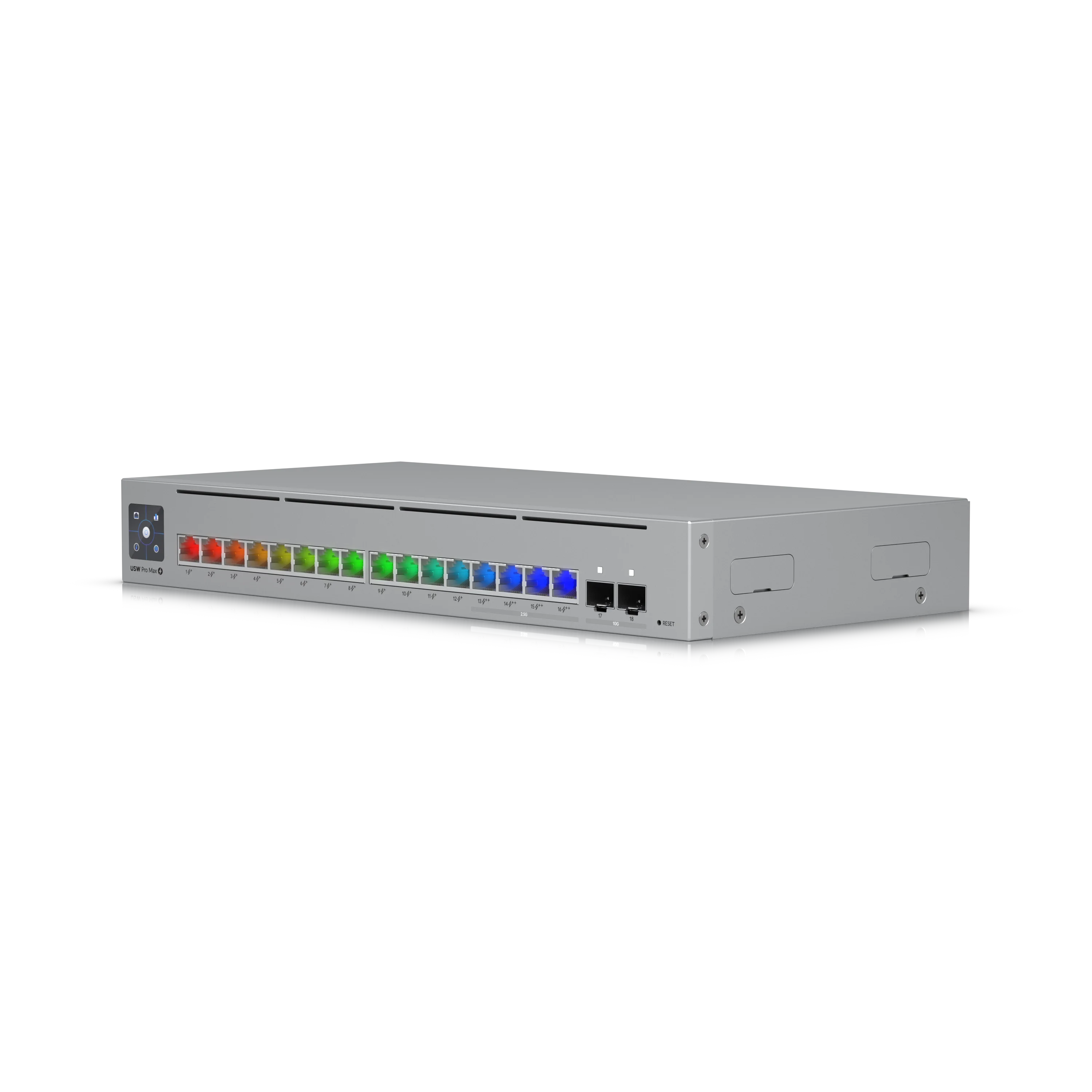

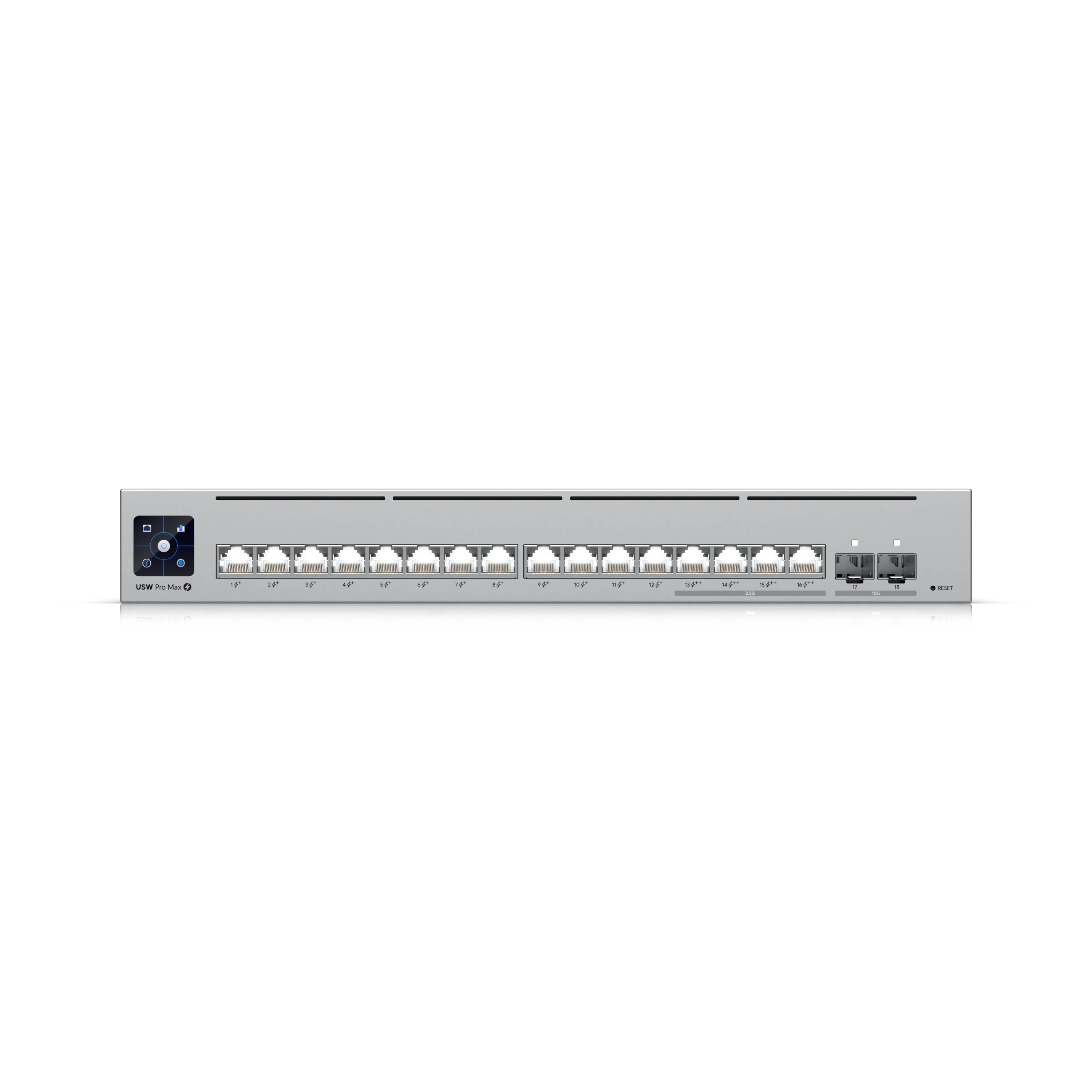

Pro Max 16 PoE (USW-Pro-Max-16-PoE)

Sold Out

RM2,244.00

Brand

A 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting options.

Dimensions

325.1 x 160 x 43.7 mm
(12.8 x 6.3 x 1.7")

Port Layout

1 GbE RJ45

12 (All PoE+)
(1G/100M/10M)

2.5 GbE RJ45

4 (All PoE++)
(2.5G/1G/100M/10M)

10G SFP+

2
(10G/1G)

Max. PoE Output

Up to PoE++

Total PoE Availability

180W

Layer 3

✓

Form Factor

Rack mount (1U), desktop, wall

Etherlighting™

✓

Switching Capacity

84 Gbps

Total Non-Blocking Throughput

42 Gbps

Forwarding Rate

62 Mpps

Supported VLANs

1,000

MAC Address Table Size

16,000

L3 Table Size

ARP Entries

6,000

IPv4 Routes

512

Packet Buffer Size

1.5 MB

Access Lists

IPv4

128

MAC

128

DHCP Server (Local Networks)

✓

DHCP Relay

✓

Inter-VLAN Routing (Local Networks)

✓

Static Routing (Local Networks)

✓

LACP Port Aggregation

✓

STP & RSTP

✓

QoS (DSCP)

✓

Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)

✓

Advanced IGMP Configuration (Querier, Fast Leave, Router Port)

✓

IGMP Snooping

✓

802.1X Control

✓

MAC-Based ACLs & Device Isolation

✓

DHCP Snooping & Guarding

✓

Egress Rate Limit

✓

Flow Control

✓

Storm Control

✓

Multicast & Broadcast Rate Limiting

✓

MAC Address Blocking

✓

IP-Based ACLs & Network Isolation

✓

MAC-Based Port Restriction

✓

Port Isolation

✓

Port Mirroring

✓

Jumbo Frames

✓

LLDP-MED

✓

Voice VLAN

✓

Loop Protection

✓

Virtual Network Override

✓

PoE Ports

PoE+

12

PoE++

4

Max. PoE Wattage per Port by PSE

PoE

15.4W

PoE+

32W

PoE++

64W

Max. Power Consumption

25W (Excluding PoE Output)
210W (Including PoE Output)

Power Method

AC Adapter

Power Input Method

AC input

Power Supply

AC/DC, external, 210W

Supported Voltage Range

50—54V DC

Management

Ethernet
AR

Heat Dissipation

68 BTU/hr (Excluding PoE Output)

Weight

2.1 kg (4.6 lb)

Enclosure Material

SGCC steel

Mount Material

SGCC steel

Supported Rack Depth

400~1200 mm
(15.7-47.2")

LCM Display

1.3" touchscreen

Ambient Operating Temperature

-5 to 40° C (23 to 104° F)

Ambient Operating Humidity

10 to 90% noncondensing

Etherlighting™

Ethernet

✓

SFP+

✓

NDAA Compliant

✓

Certifications

CE, FCC, IC, Anatel: 08953-24-08356

Application Requirements

UAP Network

Version 8.1.127 and later
