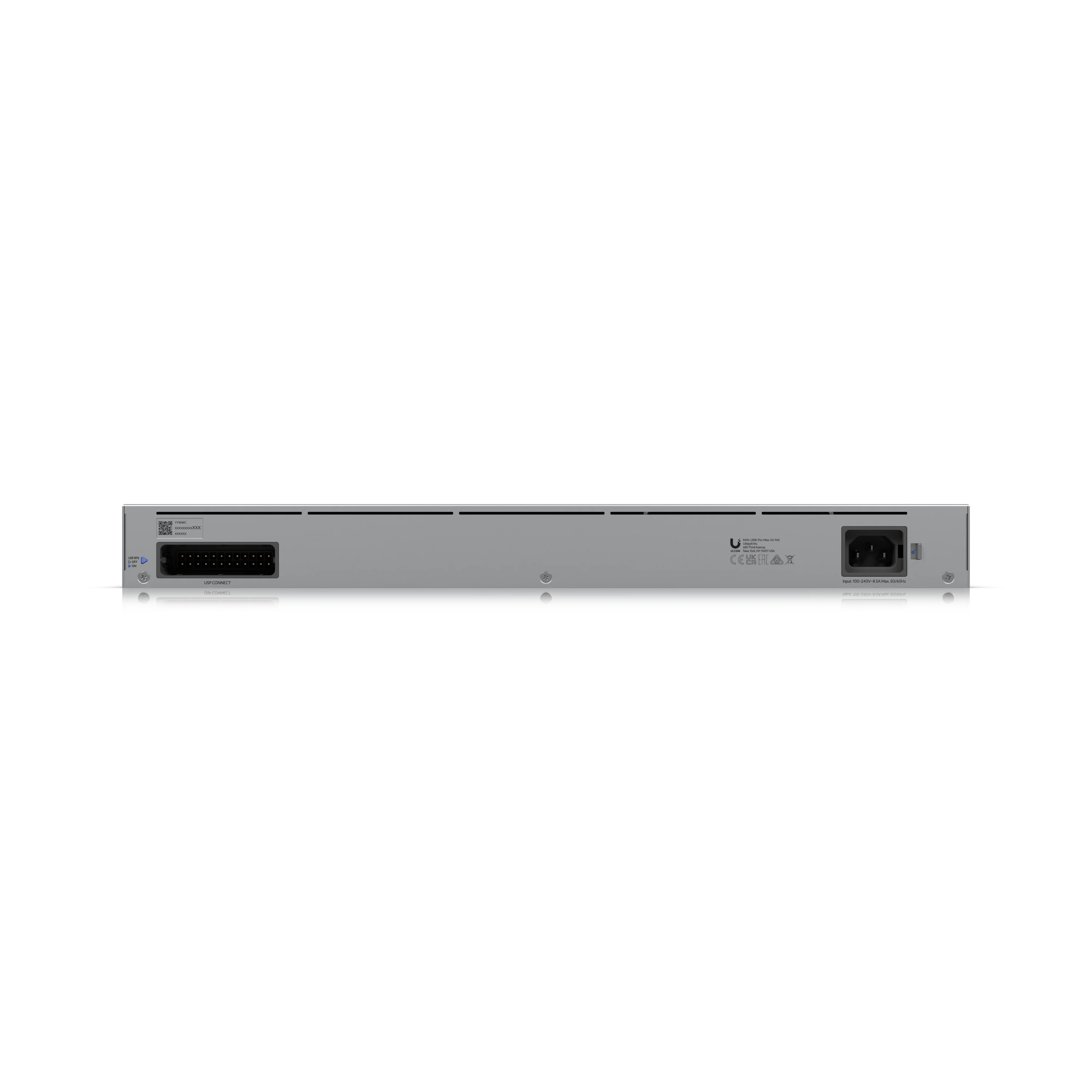

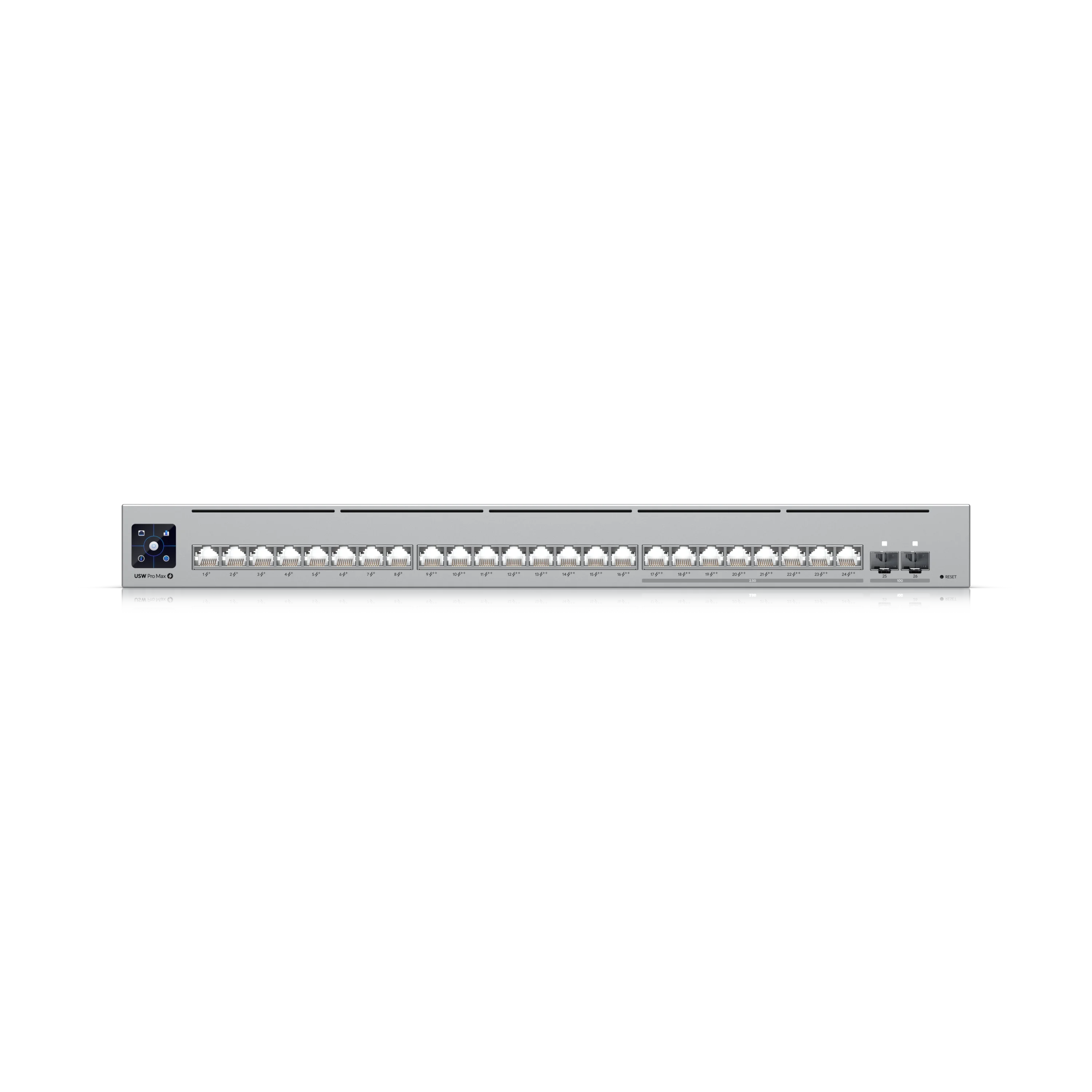

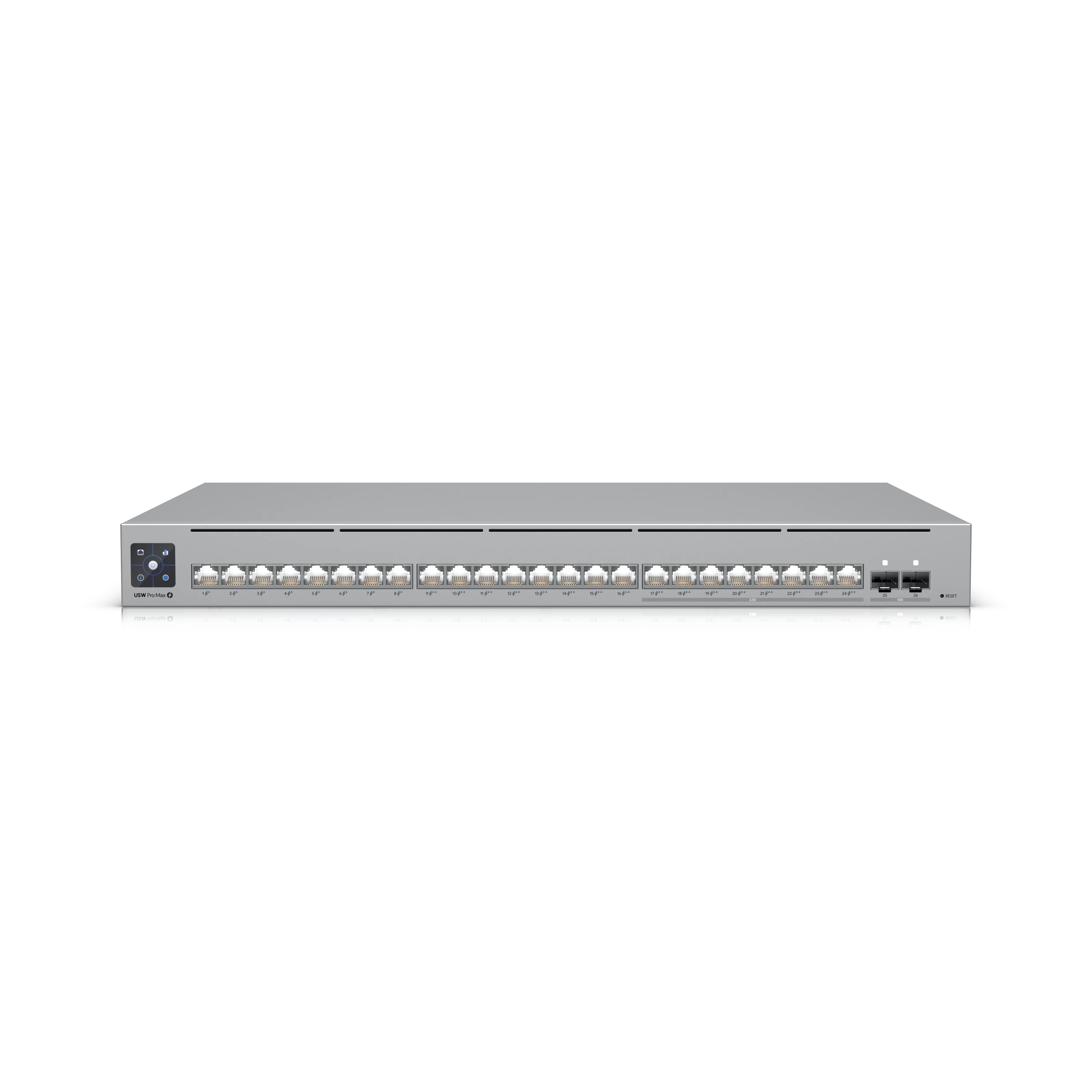

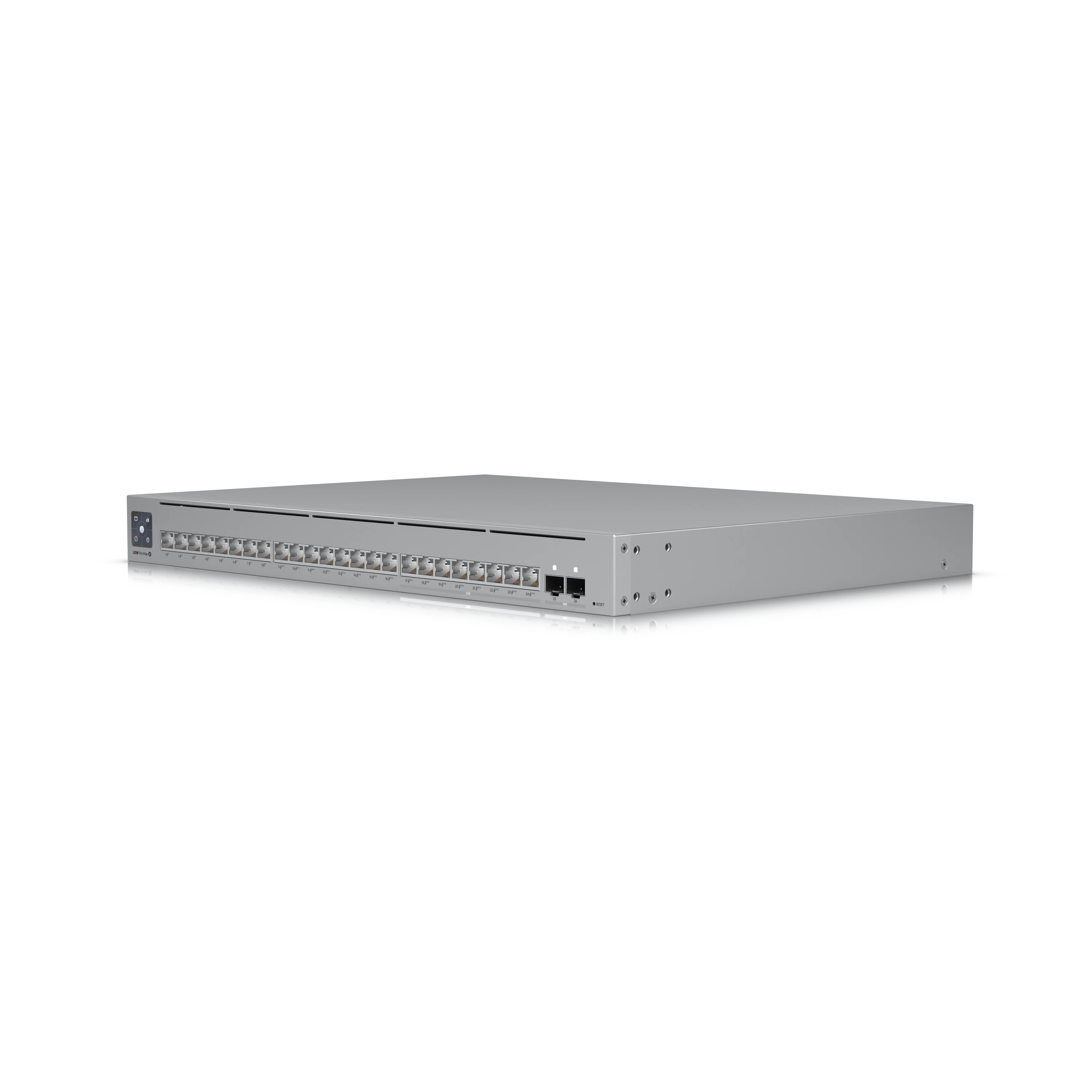

              • Pro Max 24 PoE (USW-Pro-Max-24-PoE)

              Pro Max 24 PoE (USW-Pro-Max-24-PoE)

              Pro Max 24 PoE (USW-
              Pro Max 24 PoE (USW-
              Pro Max 24 PoE (USW-
              Pro Max 24 PoE (USW-
              Pro Max 24 PoE (USW-
              Pro Max 24 PoE (USW-

              Pro Max 24 PoE (USW-Pro-Max-24-PoE)
              1Sold

              RM4,460.00
              Brand
              Ubiquiti Inc.
              Quantity
              5 unit available
              Please input quantity
              • Description

              A 24-port, Layer 3 Etherlighting™ switch capable of high-power PoE++ output.

              Dimensions
              442 x 325 x 44 mm

              (17.4 x 12.8 x 1.7")

              Port Layout



              1 GbE RJ45
              16 (8 PoE+; 8 PoE++)

              (1G/100M/10M)



              2.5 GbE RJ45
              8 (All PoE++)

              (2.5G/1G/100M/10M)



              10G SFP+
              2

              (10G/1G)

              Max. PoE Output
              Up to PoE++
              Total PoE Availability
              400W
              Redundancy
              DC Power Backup

              Layer 3
              ✓
              Form Factor
              Rack mount (1U)
              Etherlighting™
              ✓
              Switching Capacity
              112 Gbps
              Total Non-Blocking Throughput
              56 Gbps
              Forwarding Rate
              83 Mpps
              Supported VLANs
              1,000
              MAC Address Table Size
              16,000
              L3 Table Size



              ARP Entries
              6,000
              Packet Buffer Size
              1.5 MB
              Access Lists



              IPv4
              128


              MAC
              128
              DHCP Server (Local Networks)
              ✓
              DHCP Relay
              ✓
              Inter-VLAN Routing (Local Networks)
              ✓
              Static Routing (Local Networks)
              ✓
              LACP Port Aggregation
              ✓
              STP & RSTP
              ✓
              QoS (DSCP)
              ✓
              Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
              ✓
              Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
              ✓
              IGMP Snooping
              ✓
              802.1X Control
              ✓
              MAC-Based ACLs & Device Isolation
              ✓
              DHCP Snooping & Guarding
              ✓
              Egress Rate Limit
              ✓
              Flow Control
              ✓
              Storm Control
              ✓
              Multicast & Broadcast Rate Limiting
              ✓
              MAC Address Blocking
              ✓
              IP-Based ACLs & Network Isolation
              ✓
              MAC-Based Port Restriction
              ✓
              Port Isolation
              ✓
              Port Mirroring
              ✓
              Jumbo Frames
              ✓
              LLDP-MED
              ✓
              Voice VLAN
              ✓
              Loop Protection
              ✓
              PoE Ports



              PoE+
              8


              PoE++
              16
              Max. PoE Wattage per Port by PSE



              PoE
              15.4W


              PoE+
              32W


              PoE++
              64W
              Max. Power Consumption
              50W (Excluding PoE Output)

              450W (Including PoE Output)

              Power Method
              (1) Universal input, 100—240V AC, 50/60 Hz

              (1) USP RPS DC input

              Power Input Method
              AC input
              Power Supply
              AC/DC, internal, 550W
              Supported Voltage Range
              100—240V AC
              Management
              Ethernet

              AR

              Heat Dissipation (Excluding PoE Output)
              119 BTU/hr
              Weight
              Without mounting brackets: 5.1 kg (11.3 lb)

              With mounting brackets: 5.2 kg (11.5 lb)

              Enclosure Material
              SGCC steel
              Mount Material
              SGCC steel
              Supported Rack Depth
              400~1200 mm

              (15.7-47.2")

              LCM Display
              1.3" touchscreen
              Ambient Operating Temperature
              -5 to 40° C (23 to 104° F)
              Ambient Operating Humidity
              10 to 90% noncondensing
              Etherlighting™



              Ethernet
              ✓


              SFP+
              ✓
              NDAA Compliant
              ✓
              Certifications
              CE, FCC, IC, Anatel
              Application Requirements



              UAP Network
              Version 8.0.24 and later
