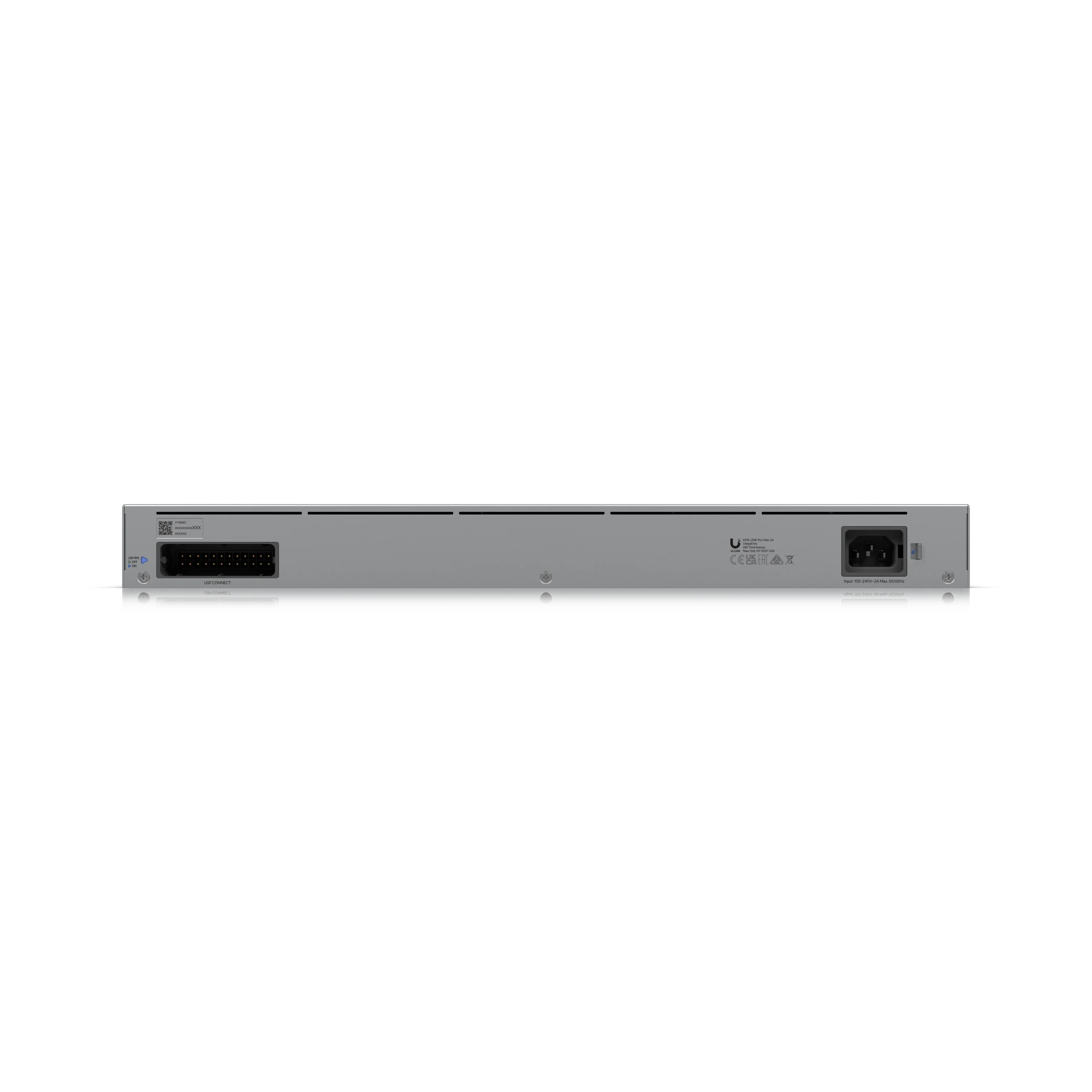

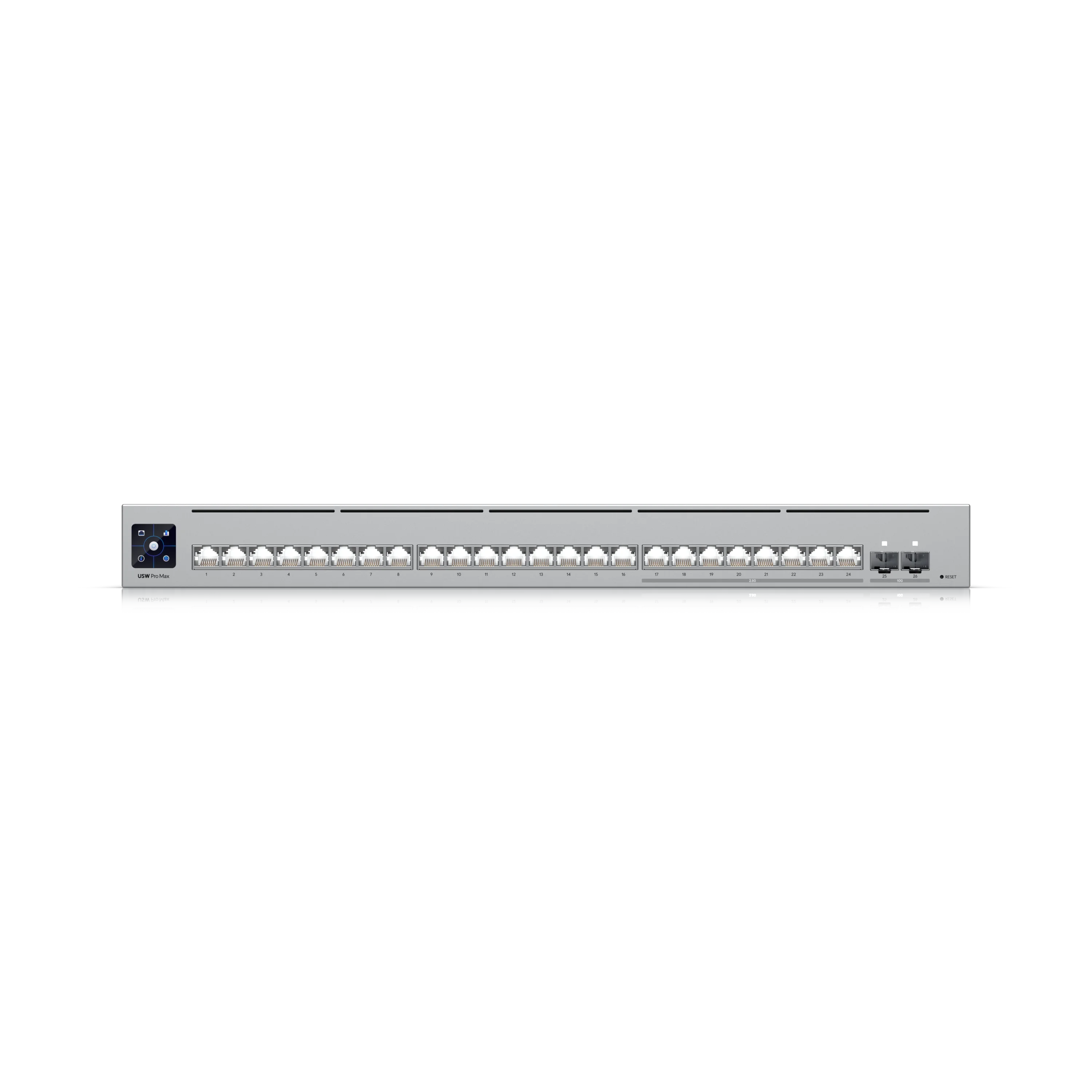

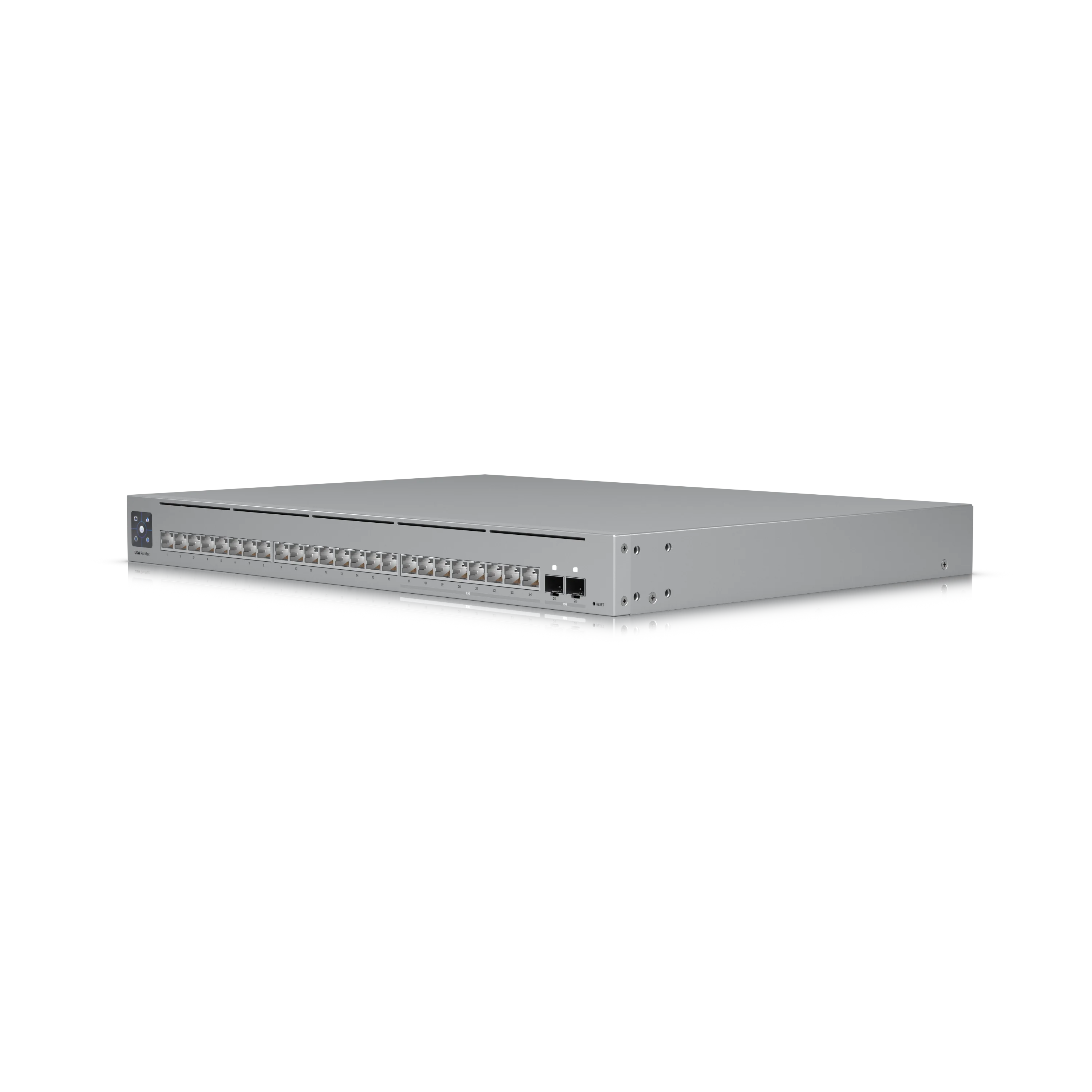

Pro Max 24 (USW-Pro-Max-24)

RM2,525.00

Brand

Quantity

3 unit available

Please input quantity

A 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE.

Dimensions

442 x 325 x 44 mm
(17.4 x 12.8 x 1.7")

Port Layout

1 GbE RJ45

16
(1G/100M/10M)

2.5 GbE RJ45

8
(2.5G/1G/100M/10M)

10G SFP+

2
(10G/1G)

Redundancy

DC Power Backup

Layer 3

✓

Form Factor

Rack mount (1U)

Etherlighting™

✓

Switching Capacity

112 Gbps

Total Non-Blocking Throughput

56 Gbps

Forwarding Rate

83 Mpps

Supported VLANs

1,000

MAC Address Table Size

16,000

L3 Table Size

ARP Entries

6,000

Access Lists

IPv4

128

MAC

128

DHCP Server (Local Networks)

✓

DHCP Relay

✓

Inter-VLAN Routing (Local Networks)

✓

Static Routing (Local Networks)

✓

LACP Port Aggregation

✓

STP & RSTP

✓

QoS (DSCP)

✓

Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)

✓

Advanced IGMP Configuration (Querier, Fast Leave, Router Port)

✓

IGMP Snooping

✓

802.1X Control

✓

MAC-Based ACLs & Device Isolation

✓

DHCP Snooping & Guarding

✓

Egress Rate Limit

✓

Flow Control

✓

Storm Control

✓

Multicast & Broadcast Rate Limiting

✓

MAC Address Blocking

✓

IP-Based ACLs & Network Isolation

✓

MAC-Based Port Restriction

✓

Port Isolation

✓

Port Mirroring

✓

Jumbo Frames

✓

LLDP-MED

✓

Voice VLAN

✓

Loop Protection

✓

Max. Power Consumption

50W

Power Method

(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input

Power Input Method

AC input

Power Supply

AC/DC, internal, 60W

Supported Voltage Range

100—240V AC

Management

Ethernet
AR

Heat Dissipation (Excluding PoE Output)

170.6 BTU/hr

Weight

Without mounting brackets: 4.2 kg (9.3 lb)
With mounting brackets: 4.3 kg (9.5 lb)

Enclosure Material

SGCC steel

Mount Material

SGCC steel

Supported Rack Depth

400~1200 mm
(15.7-47.2")

LCM Display

1.3" touchscreen

ESD Protection

Air: ± 16kV, contact: ± 12kV

Ambient Operating Temperature

-5 to 40° C (23 to 104° F)

Ambient Operating Humidity

10 to 90% noncondensing

Etherlighting™

Ethernet

✓

SFP+

✓

NDAA Compliant

✓

Certifications

CE, FCC, IC, Anatel

Application Requirements

UAP Network

Version 8.0.24 and later
