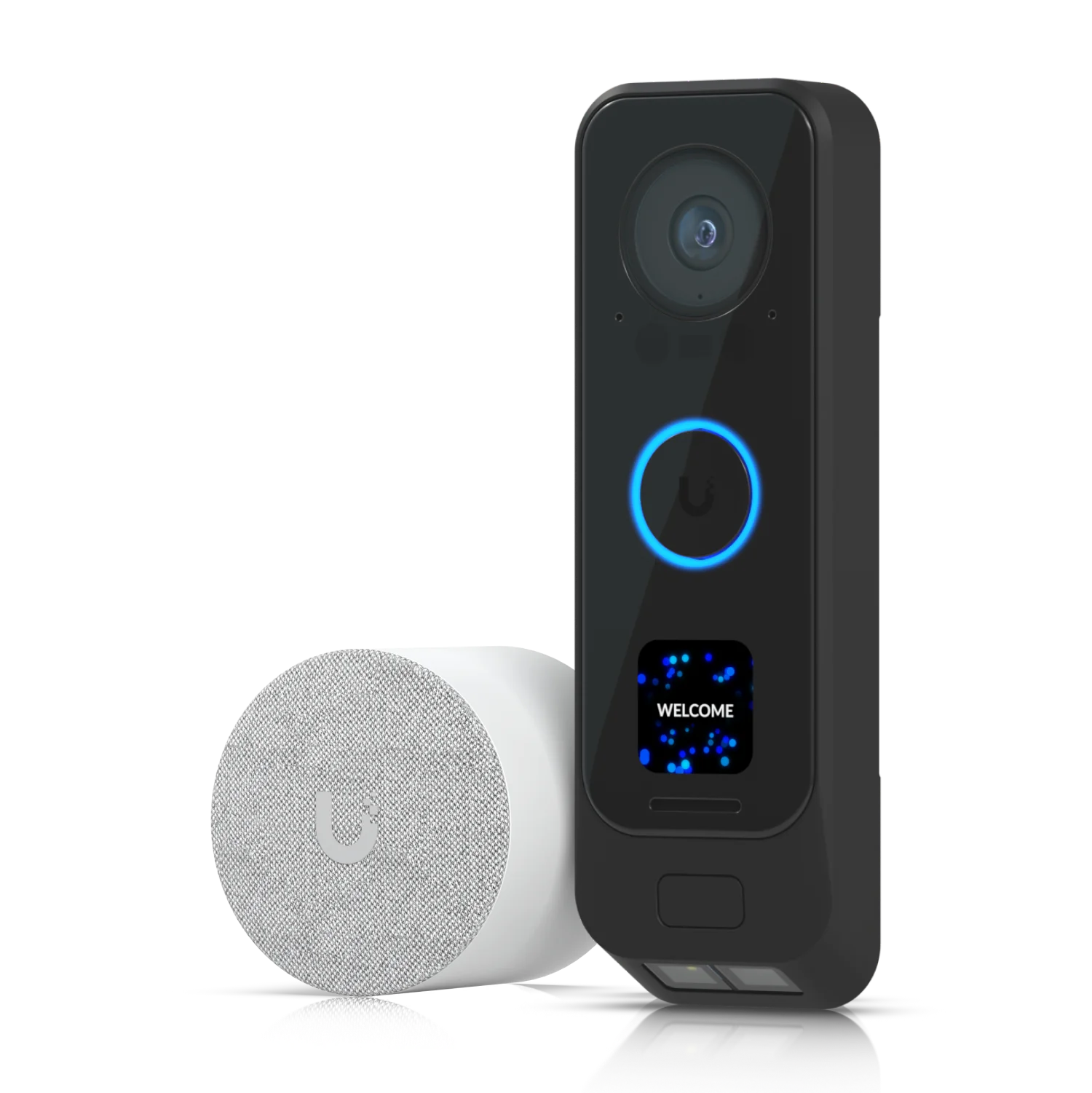

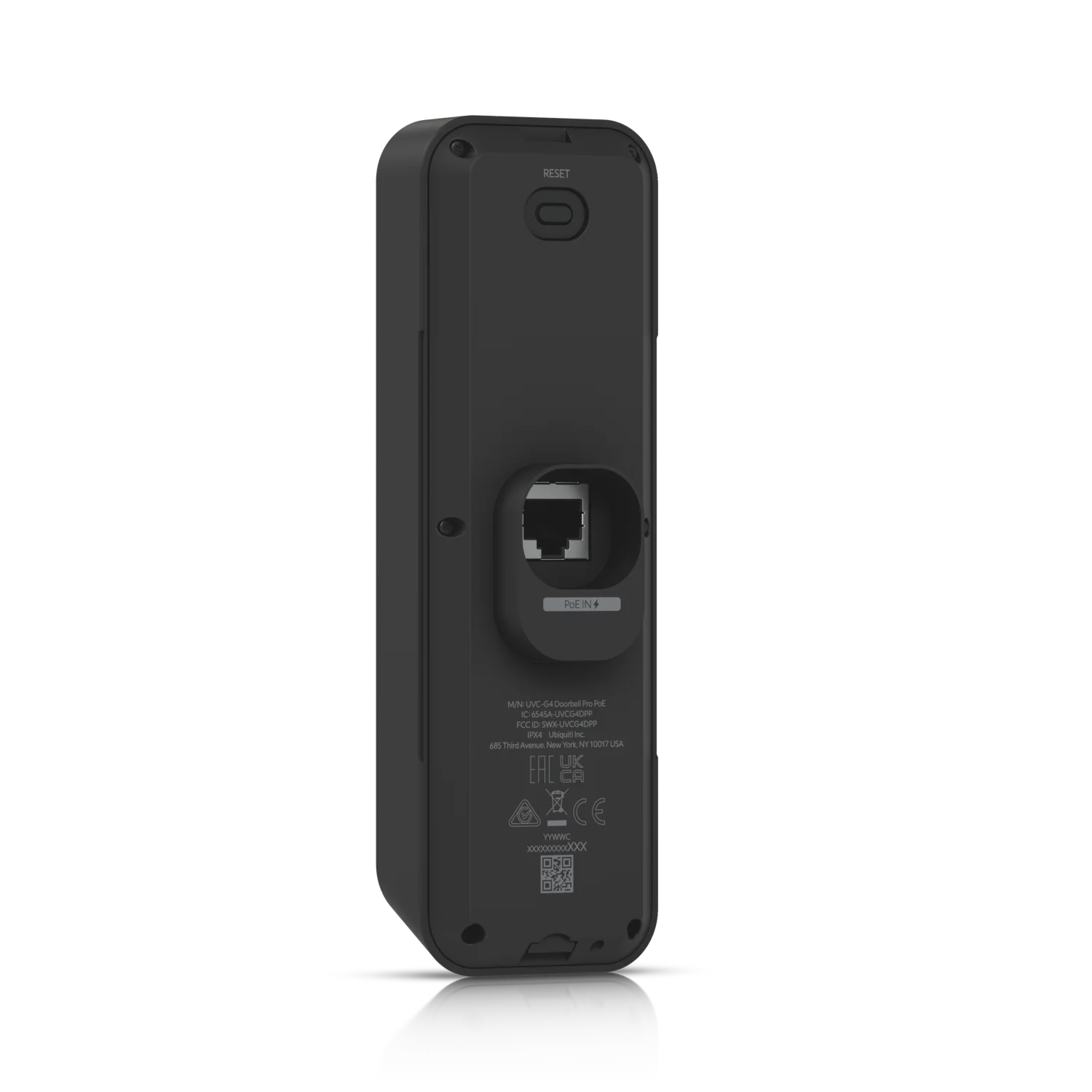

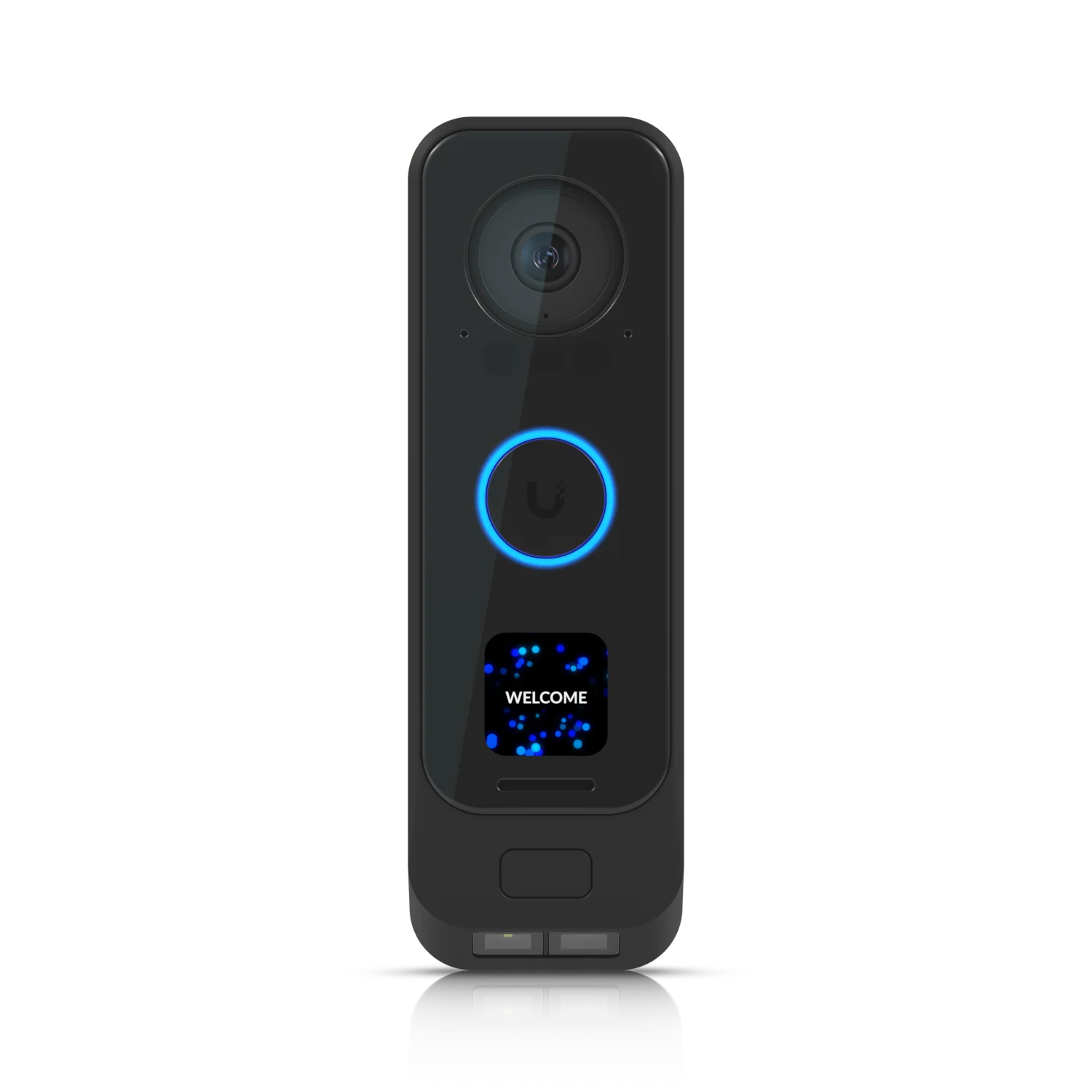

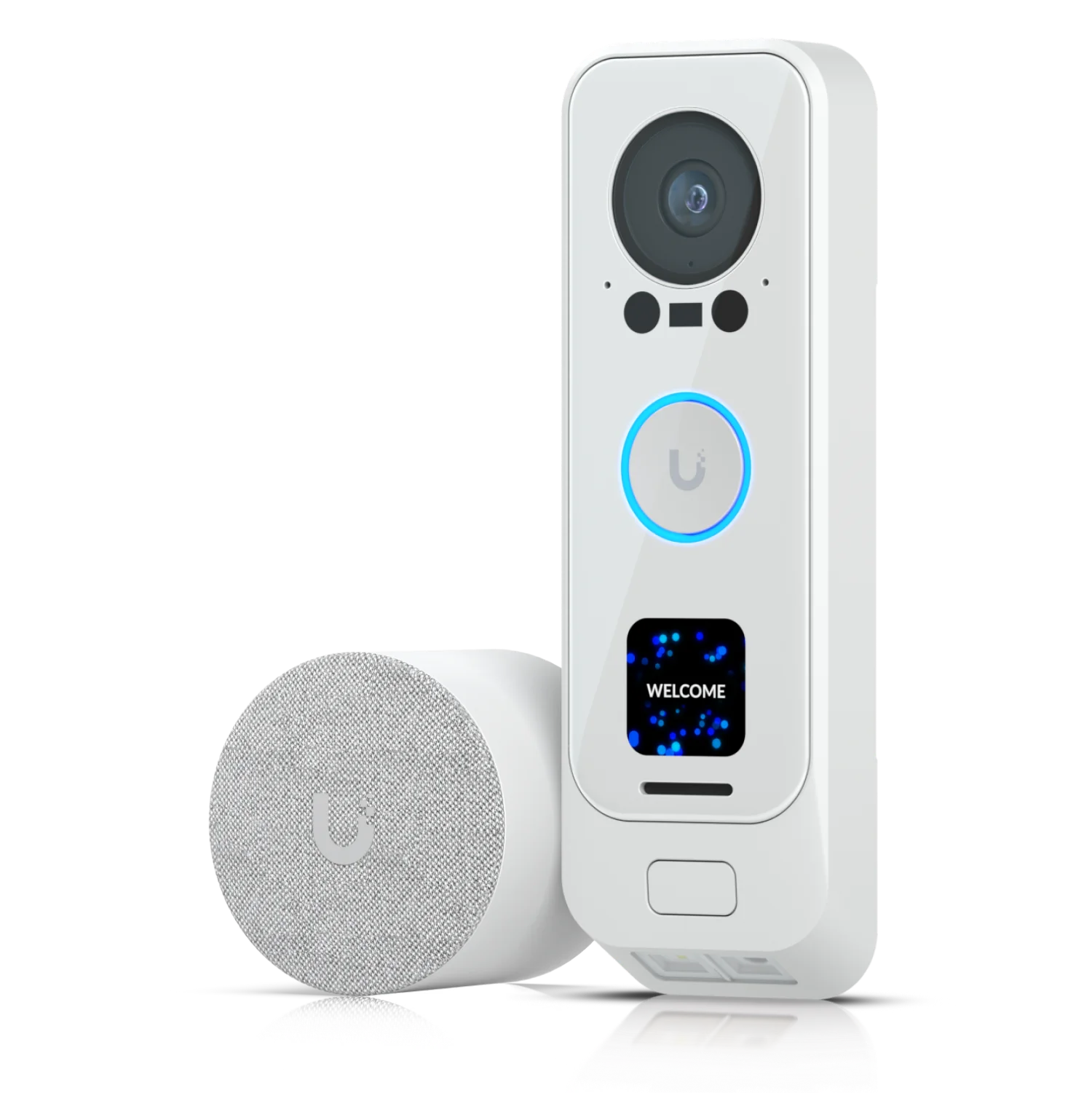

Premium UAP doorbell with integrated PoE and included PoE chime for plug-and-play installation.
Wall mount: 159.3 x 50.3 x 17.5 mm (6.3 x 1.9 x 0.7")
Wedge: 161.1 x 52.1 x 25.7 mm (6.3 x 2.1 x 1")
On-wall mount: 161.1 x 52.1 x 25.75 mm (6.3 x 2.1 x 1")
Main camera: H: 160°, V: 117°, D: 160° (LDC Off)
Package camera: H: 97.5°, V: 79.4°, D: 118.2°
Gang box, junction box (Optional)
Package camera: 2MP 1600 x 1200 (4:3)
Package camera: 8MP CMOS
Wall mount: 56 g (2 oz)
Wedge: 33 g (1.2 oz)
On-wall mount: 53 g (1.9 oz)
20° wedge mount: polycarbonate
(1) Factory-reset
In-wall mount: Ø89 x 63.1 mm (Ø3.5 x 2.5")

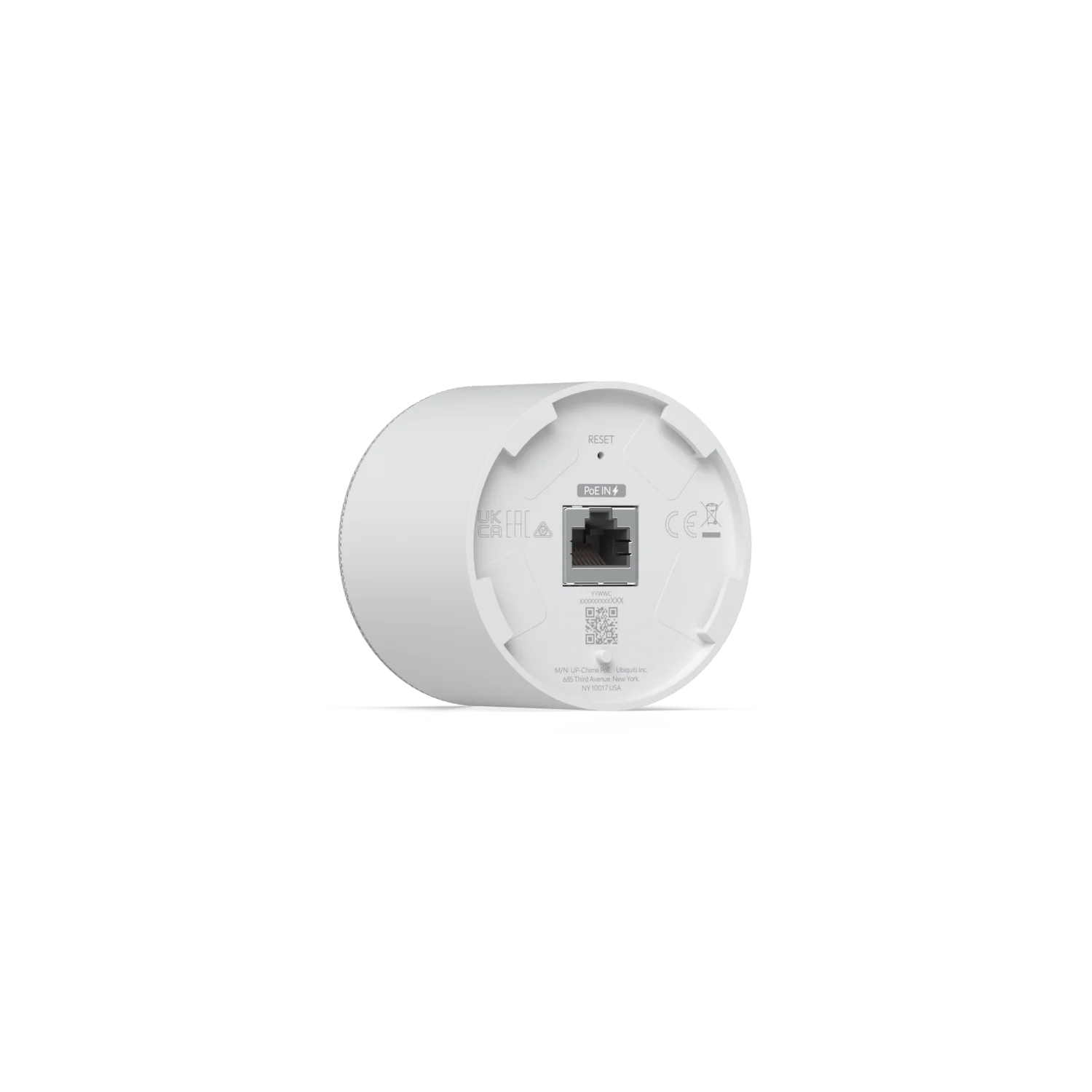

On-wall Mount: Ø62 x 20.2 mm (Ø2.5 x 0.8")
In-wall mount: 91 g (3.2 oz)
On-wall mount: 28 g (1 oz)
